Removal and Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

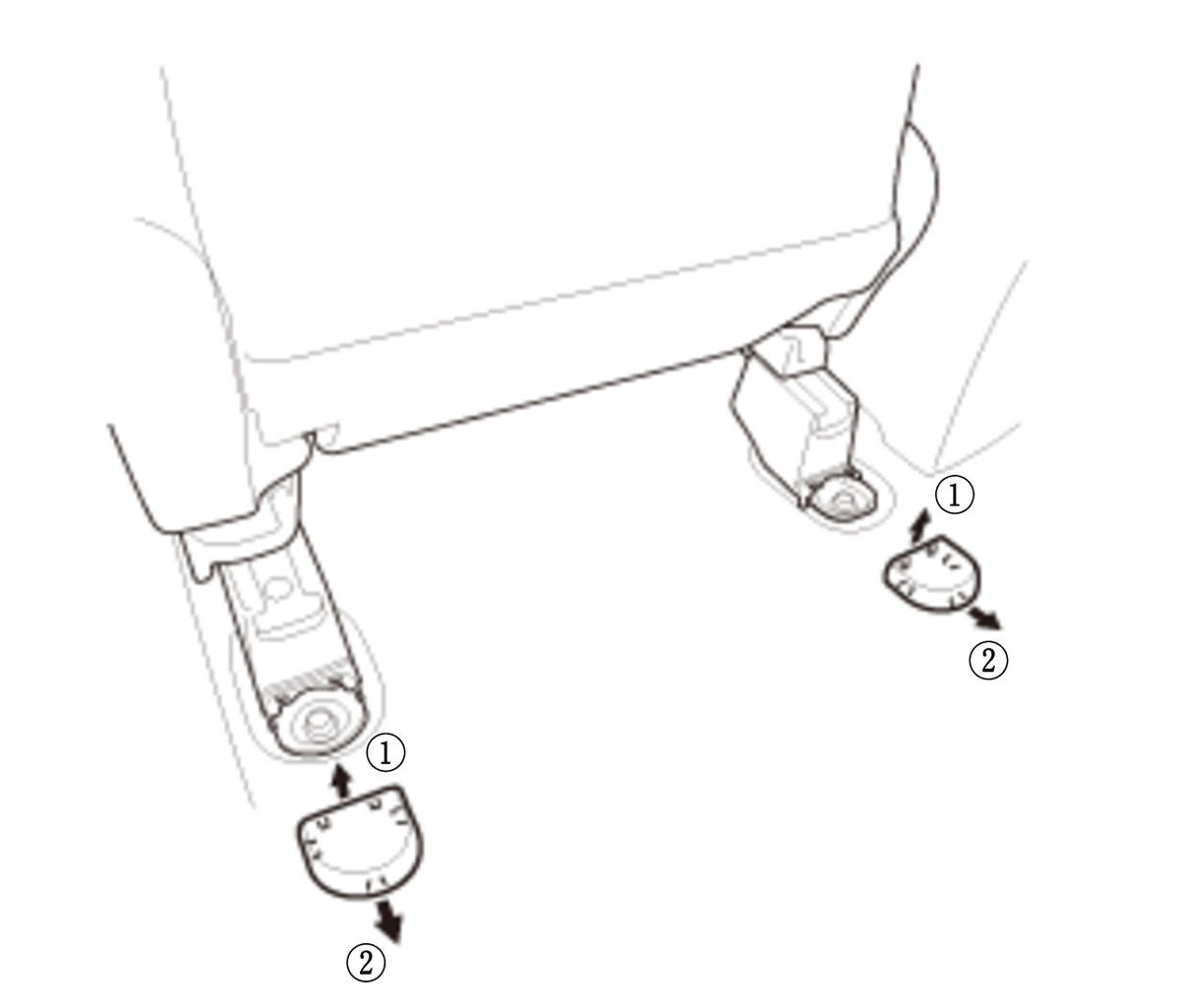

Front Seat Track End Covers - Remove

Courtesy of HONDA, U.S.A., INC.
Front Seat Belt Lower Anchor Bolt - Remove (Without Outer Lap Tensioner)
Front Seat Mounting Bolts - Remove

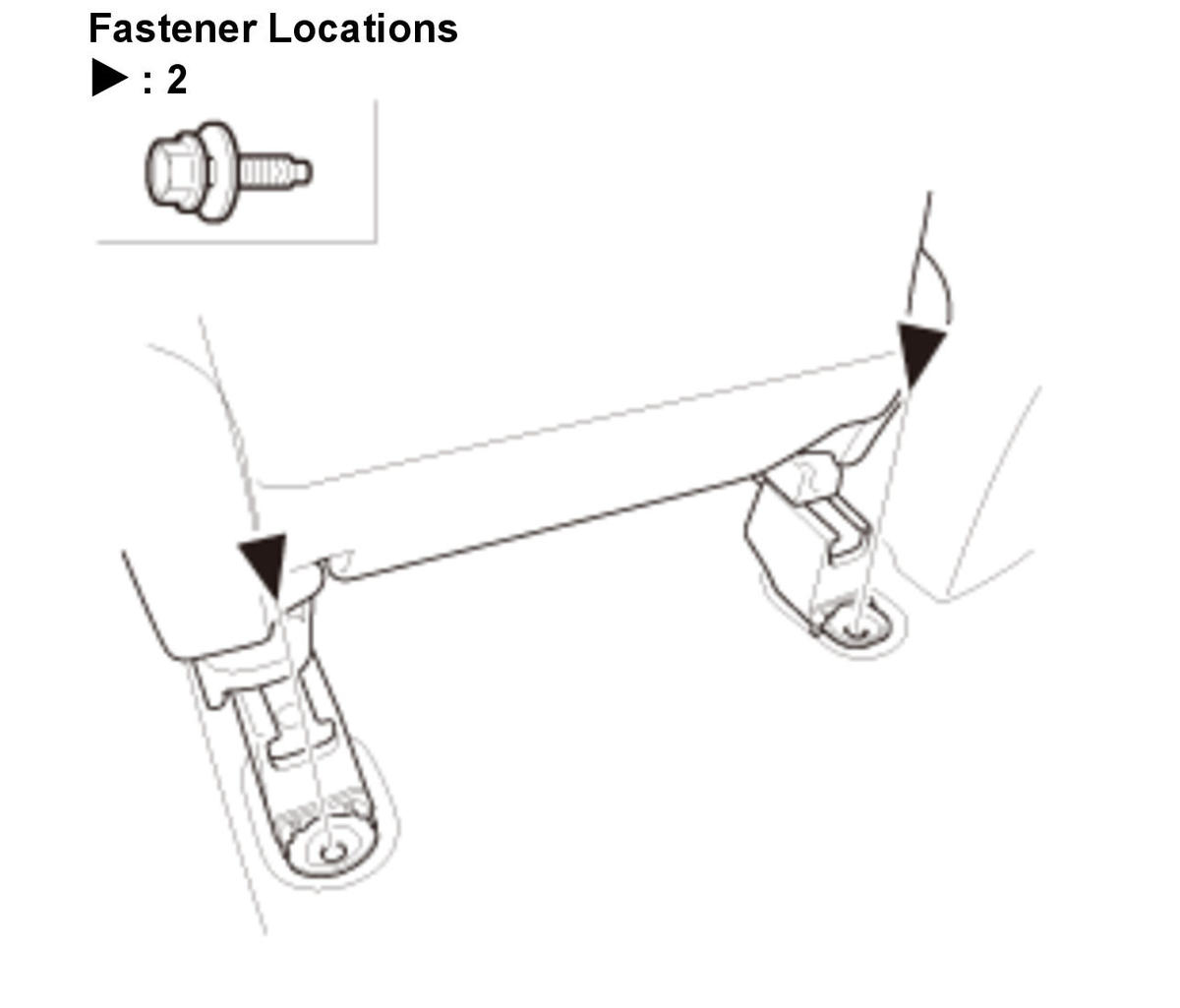

Rear side

Courtesy of HONDA, U.S.A., INC.

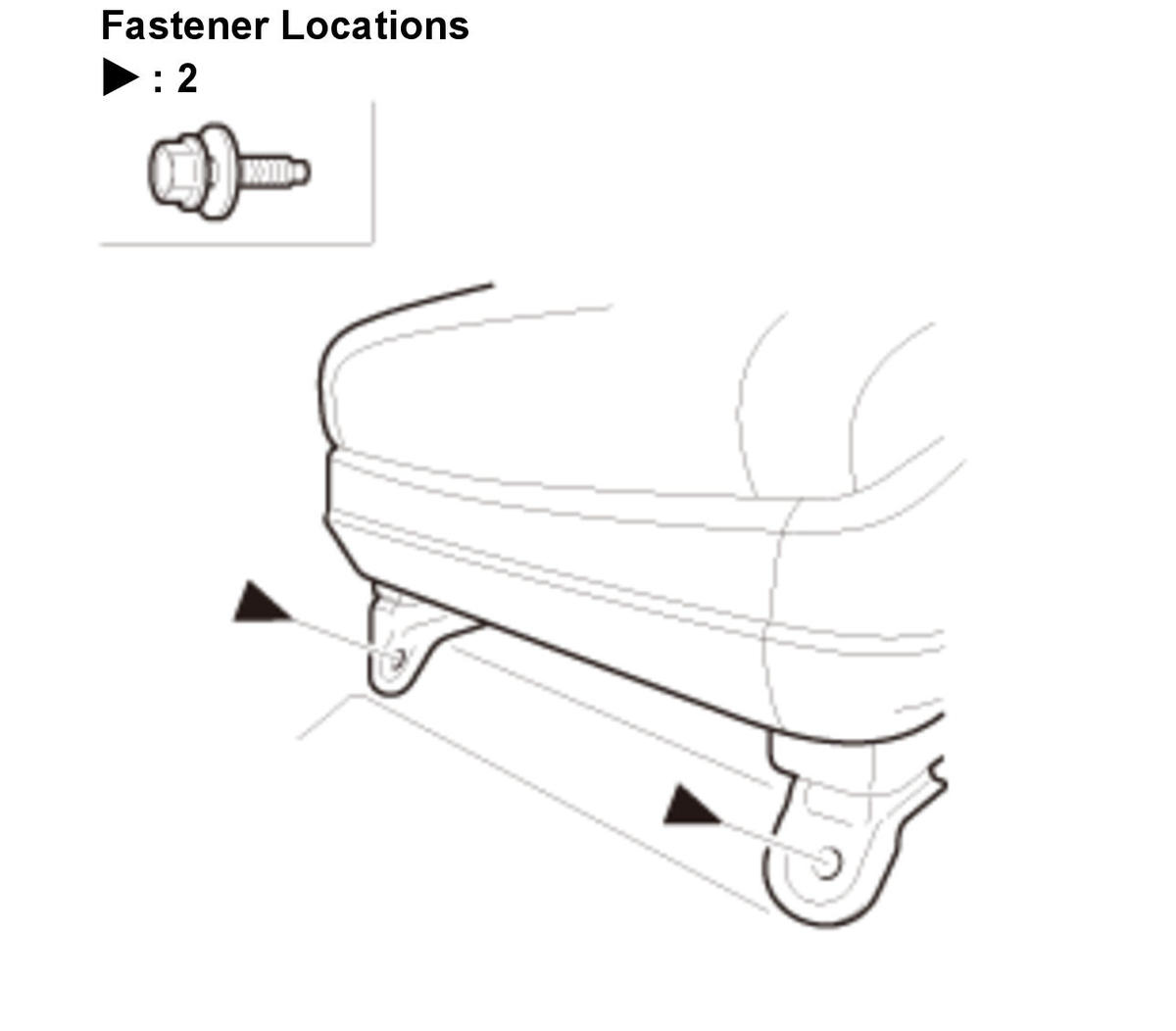

Front side

Courtesy of HONDA, U.S.A., INC.
Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.

Front Seat - Remove

Courtesy of HONDA, U.S.A., INC.

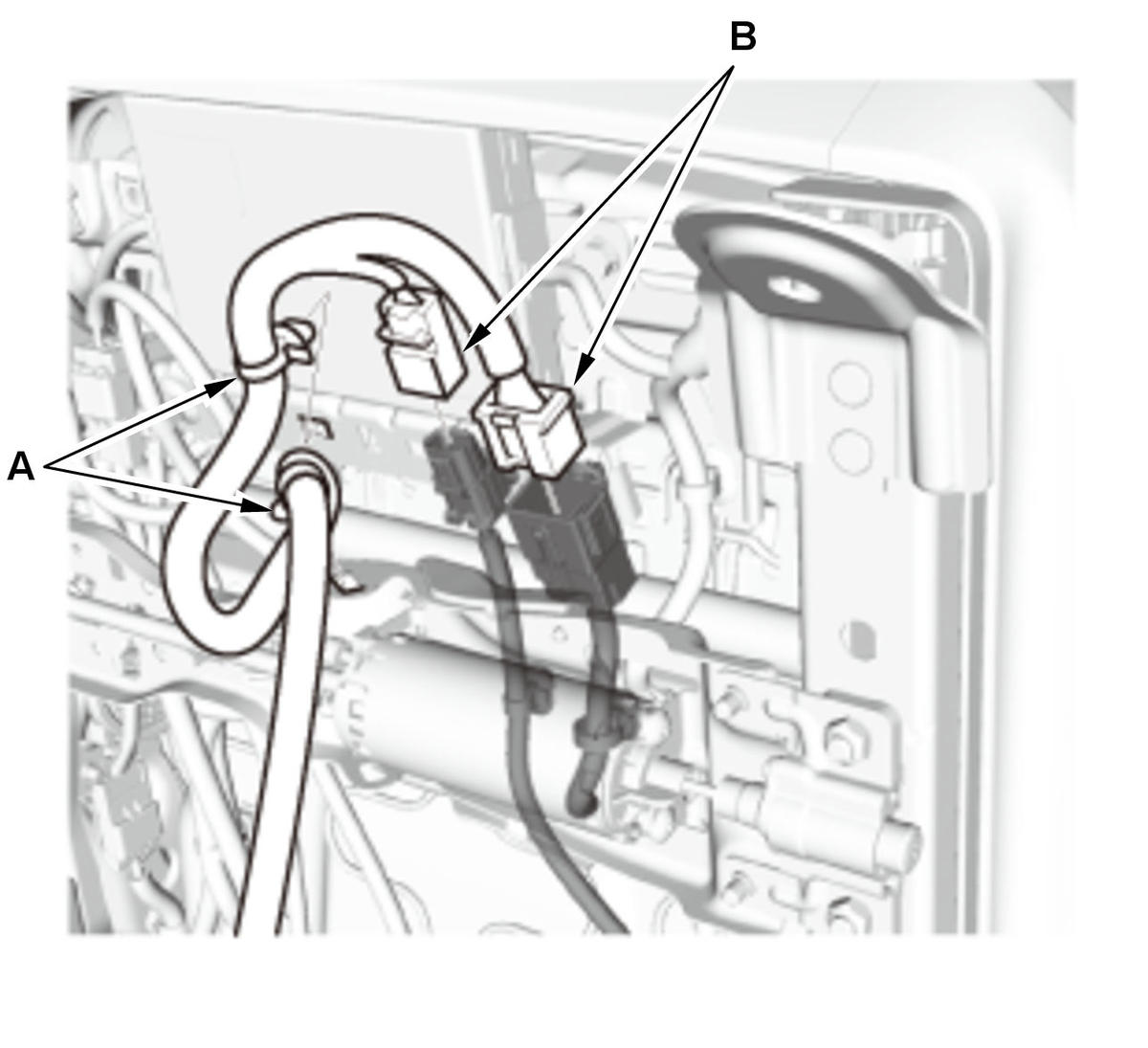

1. Lift up the front seat, then remove the harness clips (A).

2. Disconnect the connectors (B).

3. With the help of an assistant, carefully remove the front seat through the front door opening.

All Removed Parts - Install

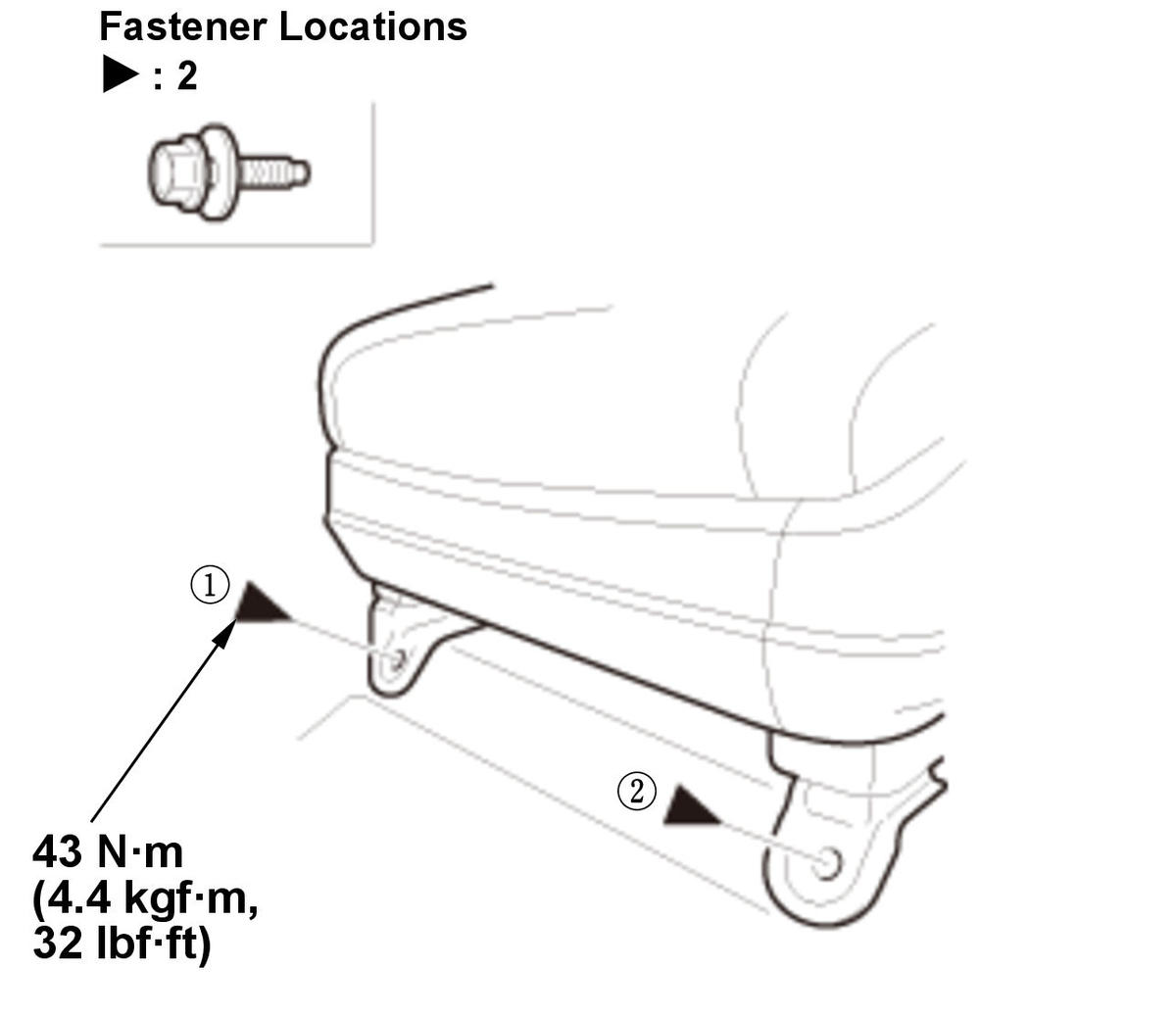

Fig 1: Front Seat (Front Side) Tightening Sequence With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

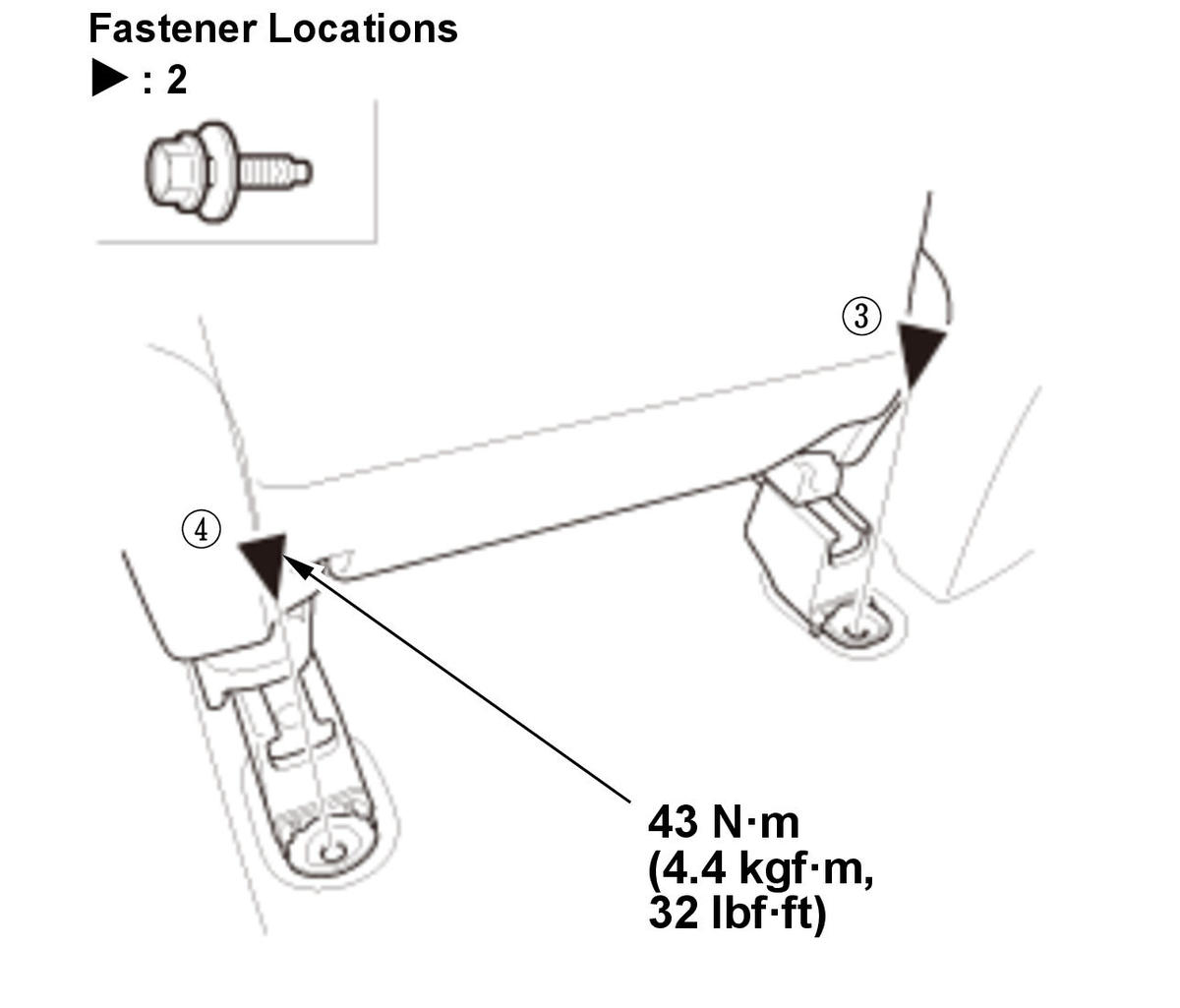

Fig 2: Front Seat (Rear Side) Tightening Sequence With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

NOTE:

Tighten the bolts by hand first, then tighten them to the specified torque.
Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten 1 and 2, then slide it forward and tighten 3 and 4.
