Front Seat (2013 2014 2015): Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat Track End Covers - Remove

Courtesy of HONDA, U.S.A., INC.

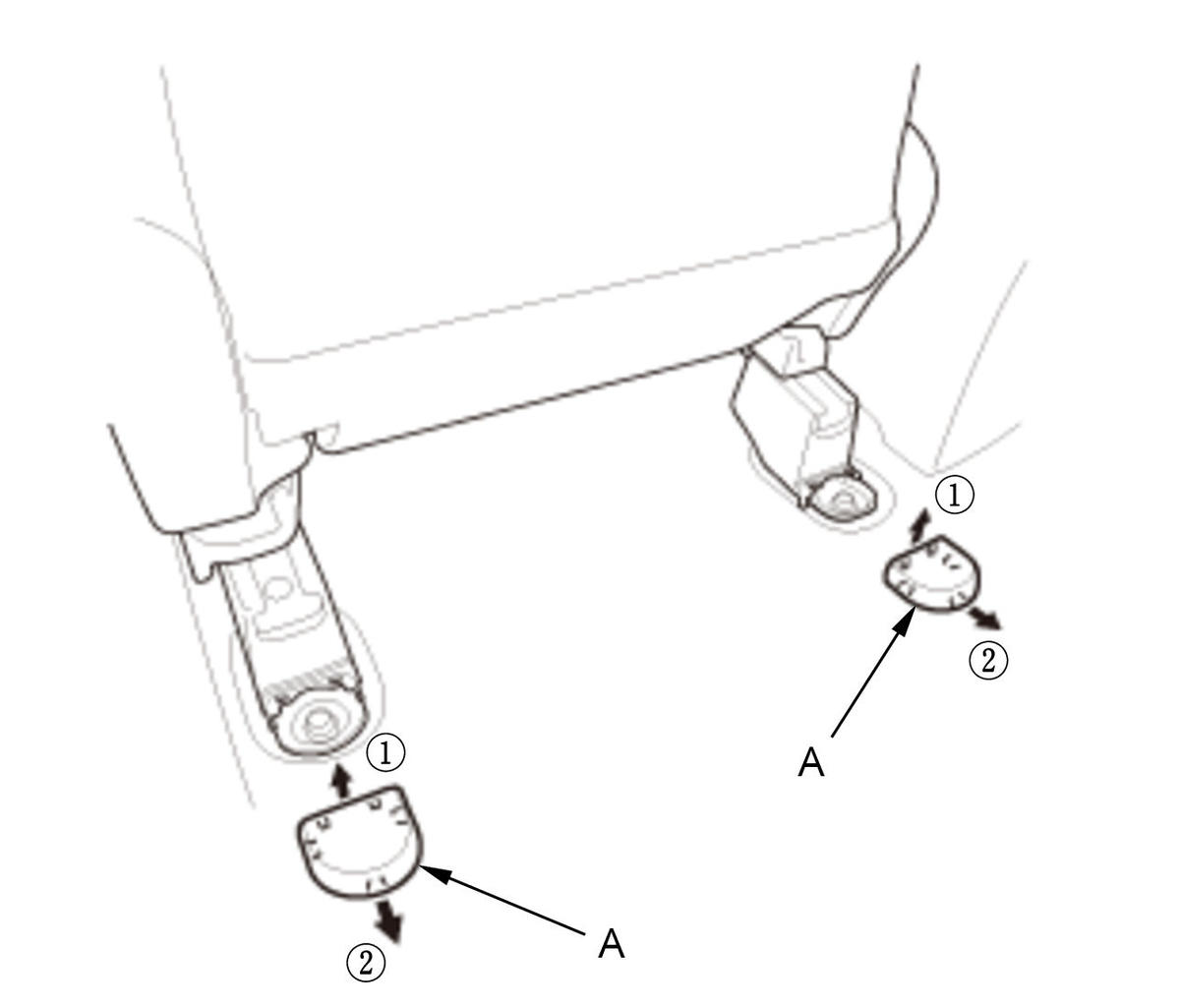

1. Remove the seat track end covers (A).
Front Seat Belt Lower Anchor Bolt - Remove

1. Remove the front seat belt lower anchor bolt .

Front Seat Mounting Bolts - Remove

Courtesy of HONDA, U.S.A., INC.

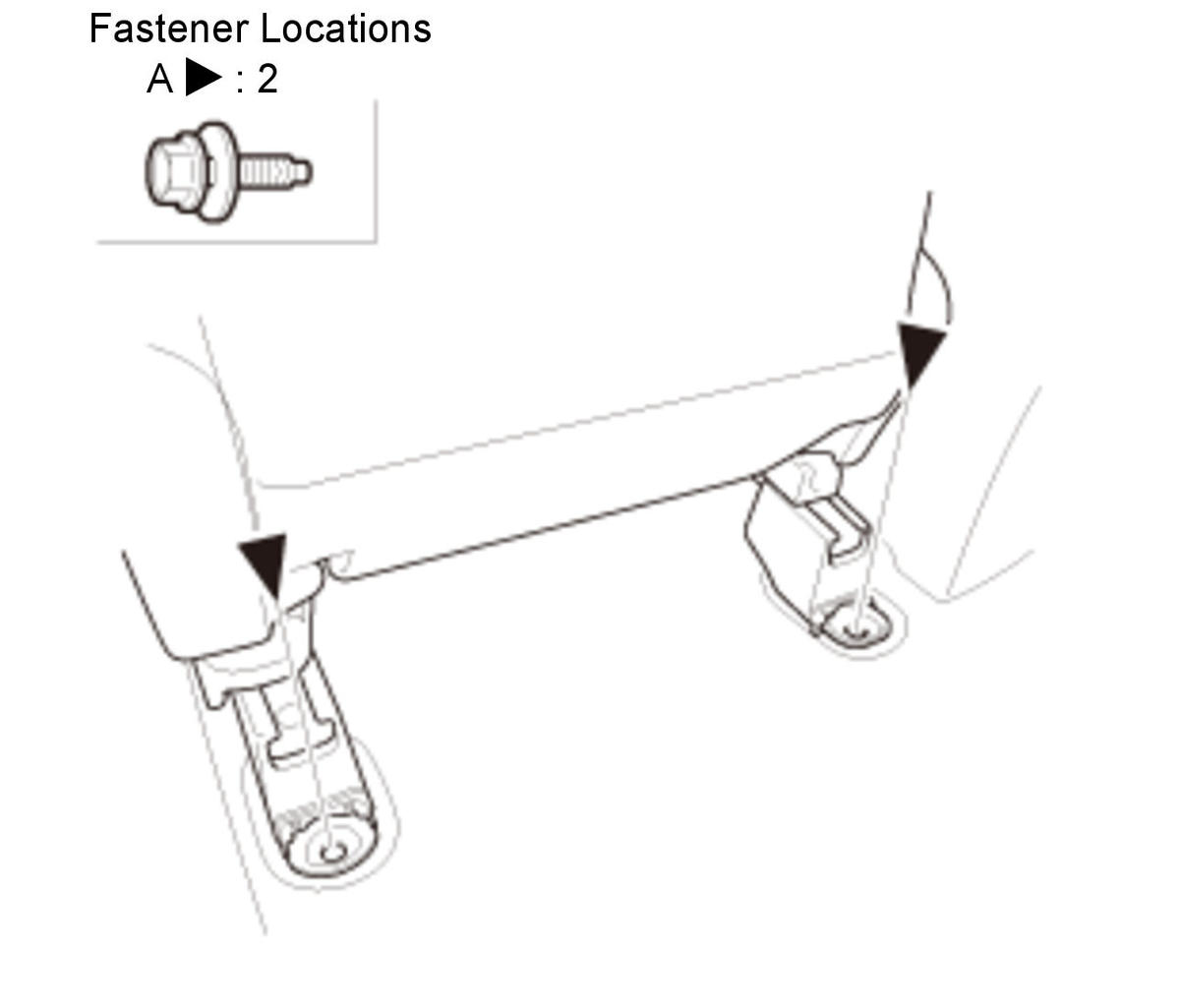

1. Remove the seat mounting bolts (A) from the rear side of the front seat.

Courtesy of HONDA, U.S.A., INC.

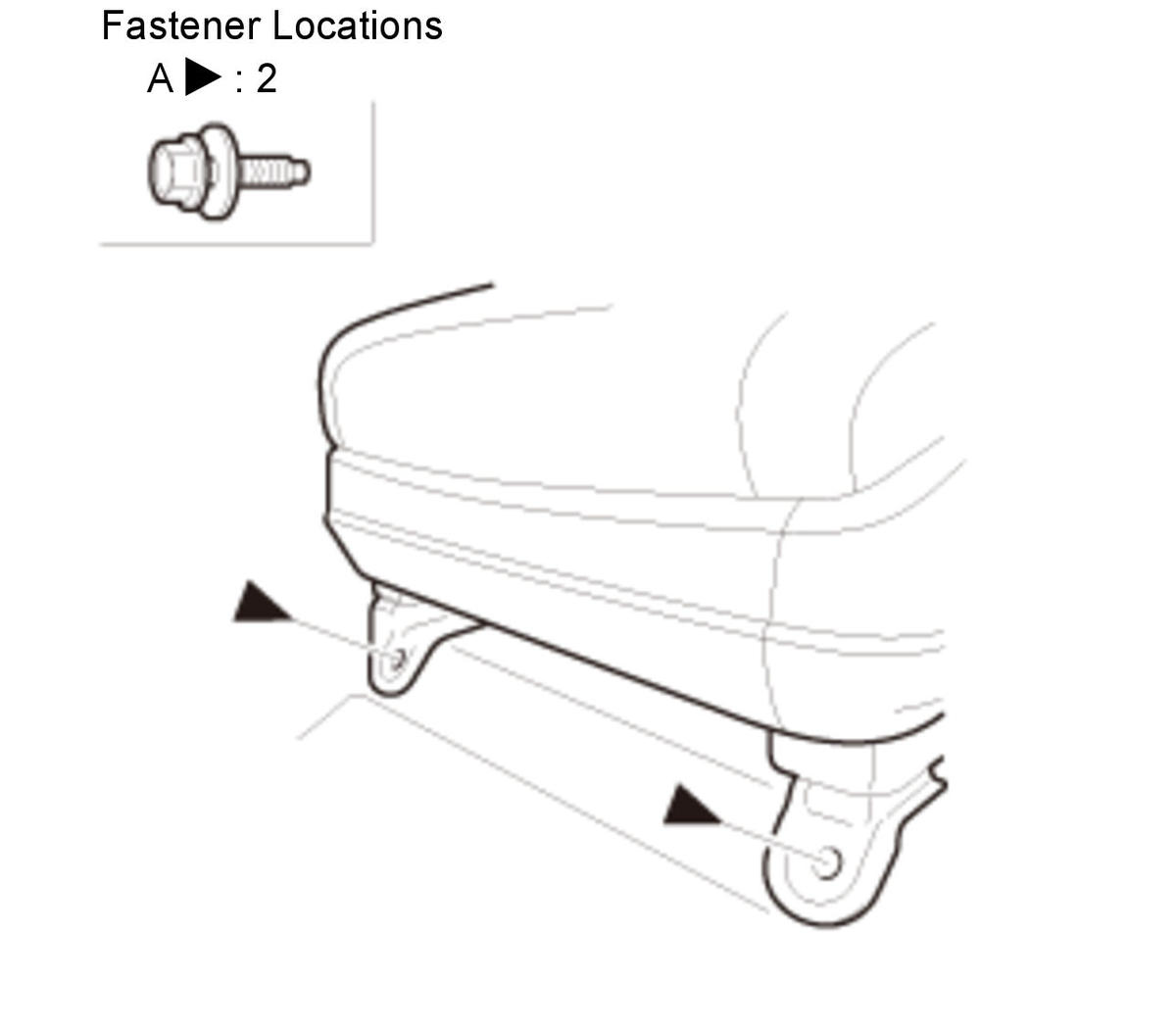

2. Slide the front seat all the way back, and remove the seat mounting bolts (A).

Battery Terminal - Disconnect

1. Do the battery terminal disconnection procedure .

Front Seat - Remove

Driver's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Passenger's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

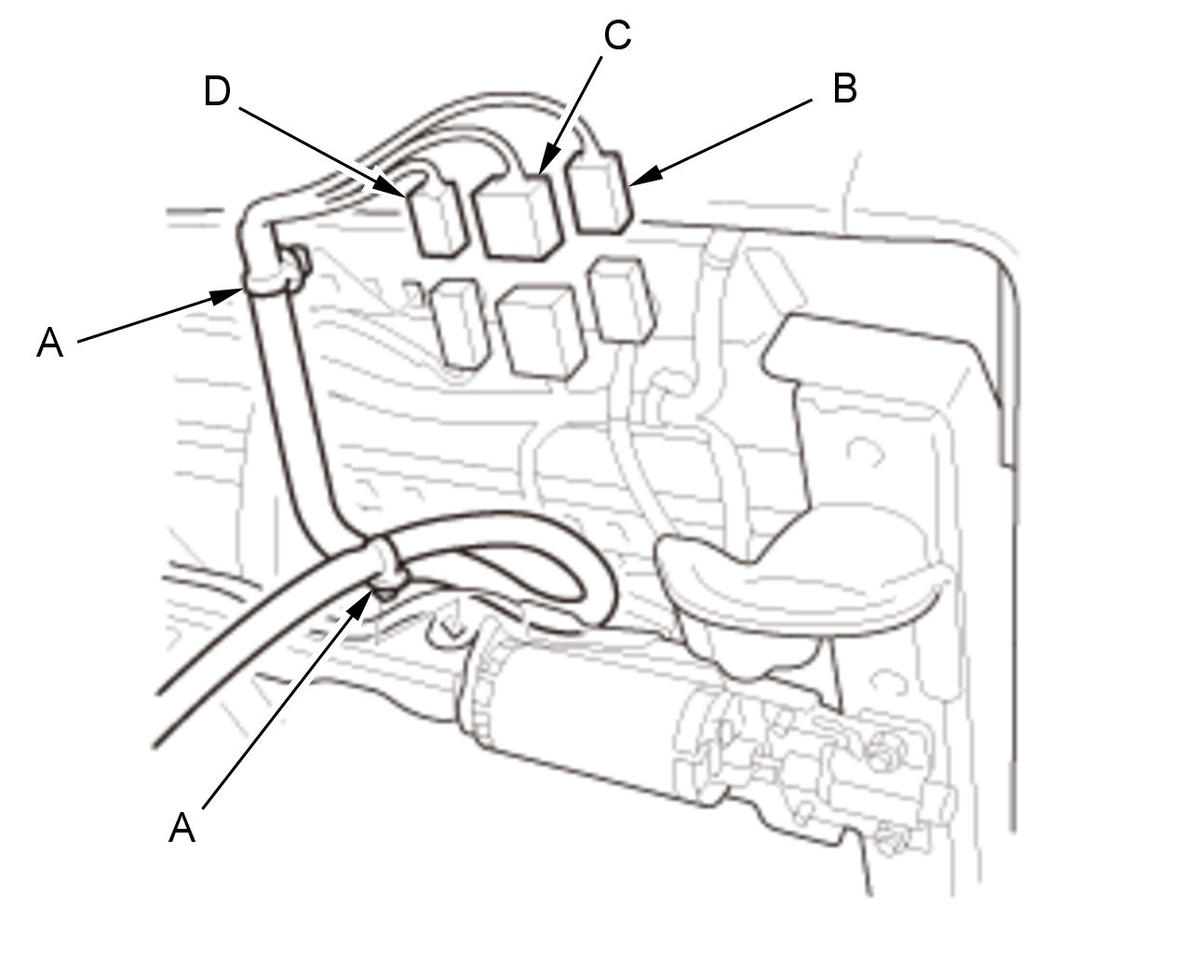

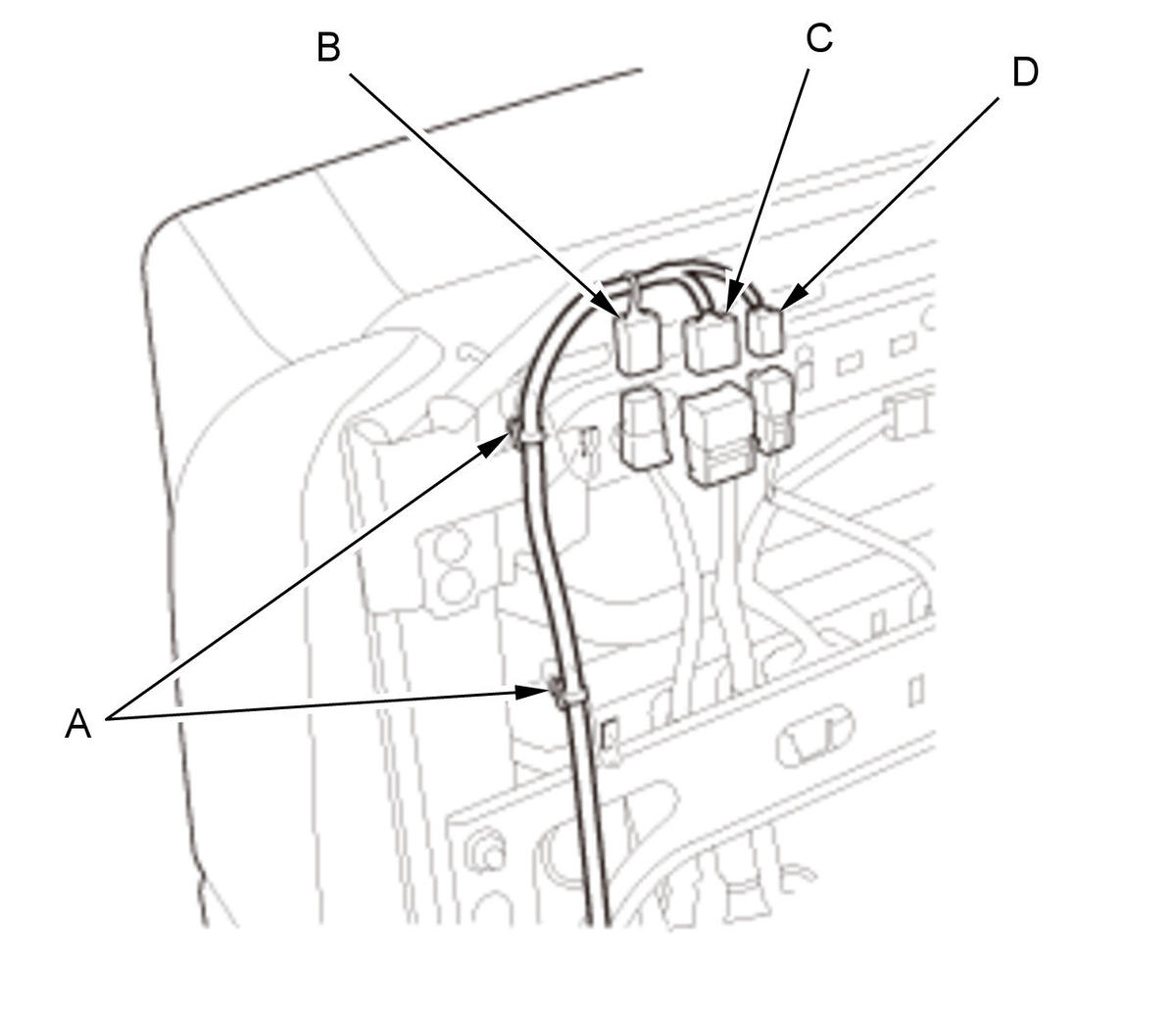

1. Lift up the front seat, then remove the harness clips (A).

2. Disconnect the side airbag connector (B), the seat wire harness connector (C), and seat belt buckle switch connector (D).

3. With the help of an assistant, carefully remove the front seat through the front door opening.
