Front Seat (2013 2014 2015): Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Install

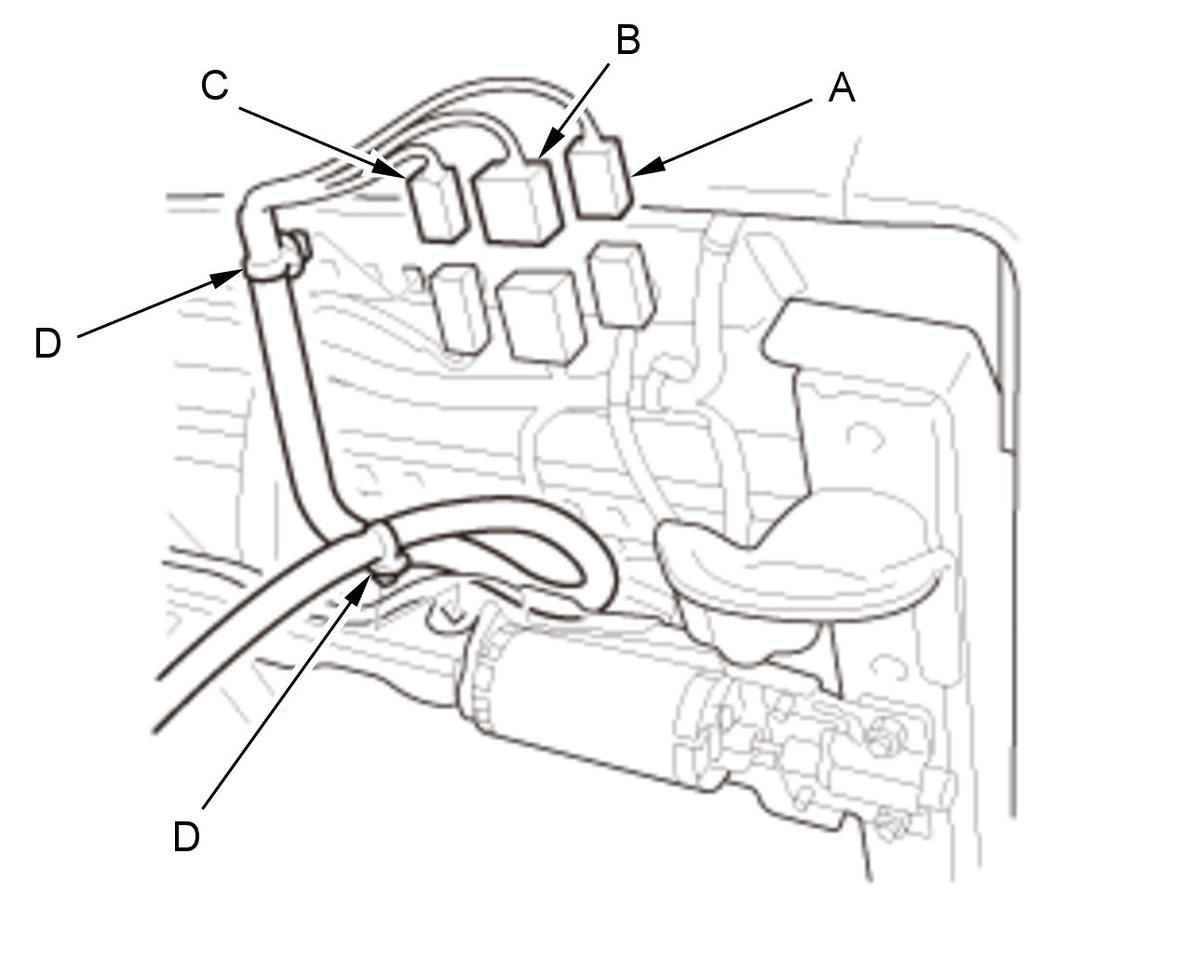

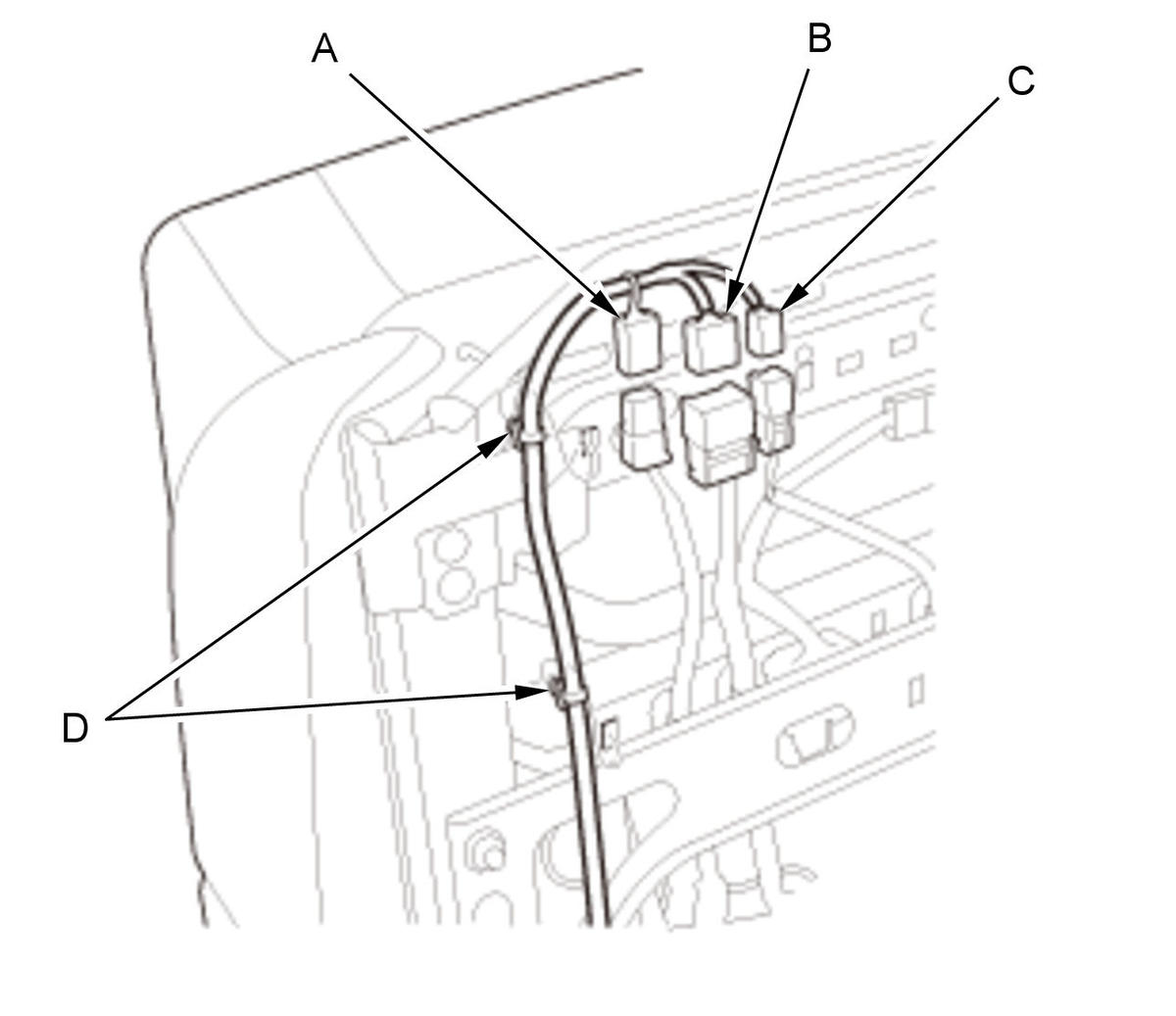

   Driver's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Passenger's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. With the help of an assistant, carefully install the front seat through the front door opening. 2. Connect the side airbag connector (A), the seat wire harness connector (B), and the seat belt buckle switch connector (C). 3. Install the harness clips (D).

2. Battery Terminal - Connect

   1. Do the battery terminal reconnection procedure .

3. Front Seat Mounting Bolts - Install

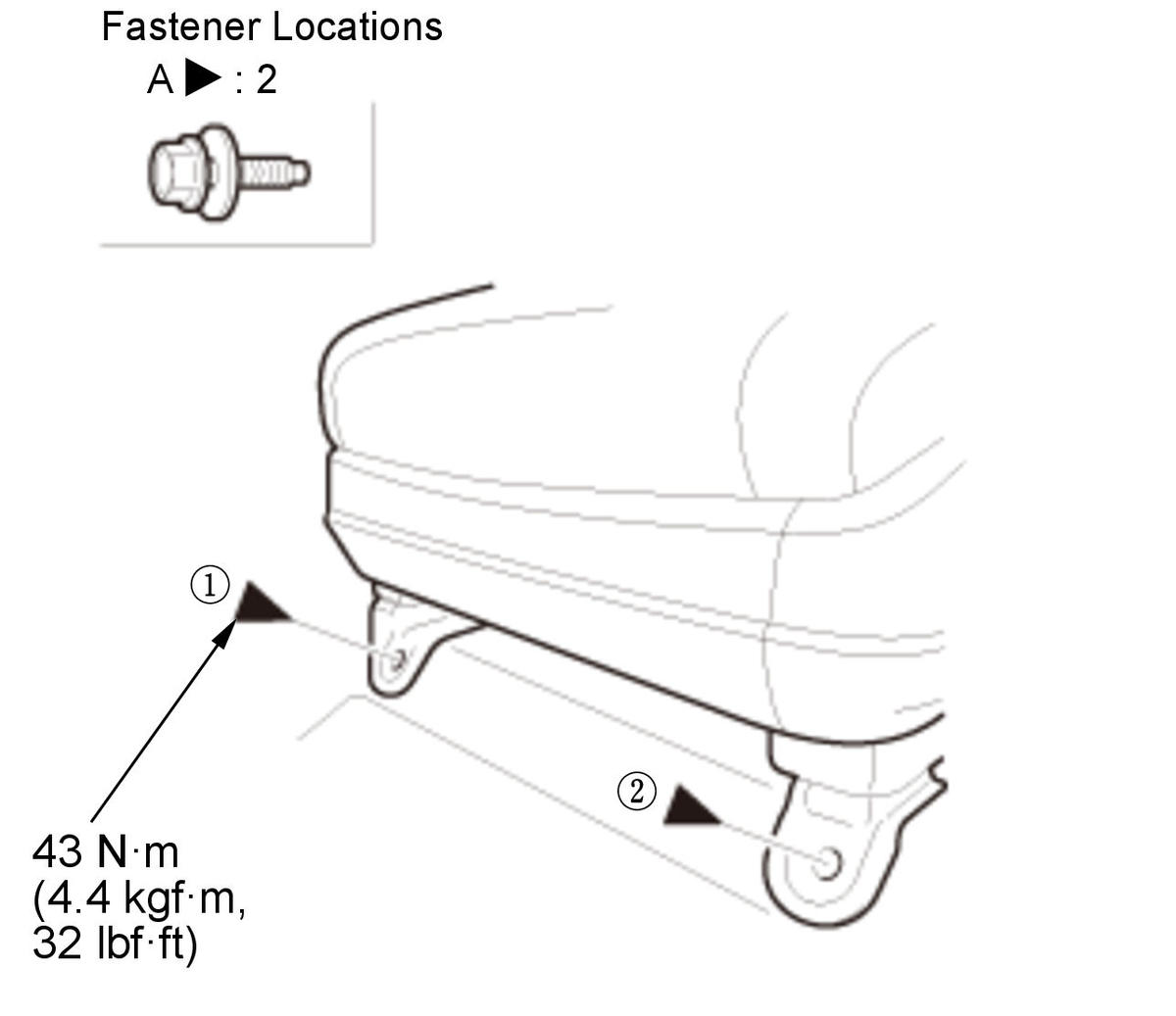

   Fig 1: Front Seat Mounting Bolts (Front Side) Tightening Sequence With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

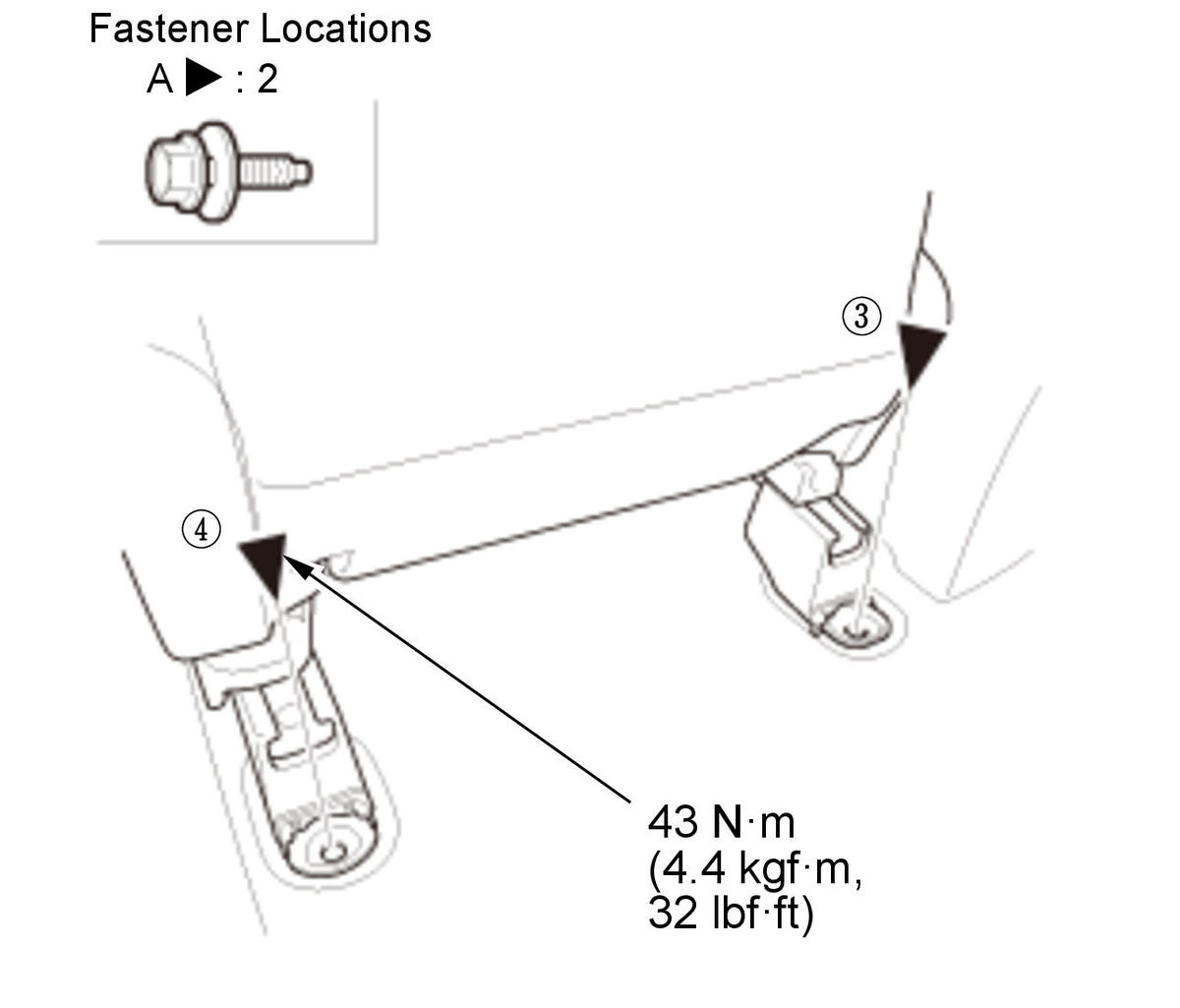

   Fig 2: Front Seat Mounting Bolts (Rear Side) Tightening Sequence With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Install the seat mounting bolts (A).   NOTE: Tighten the bolts by hand first, then tighten them to the specified torque. Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten 1 and 2, then slide it forward and tighten 3 and 4.

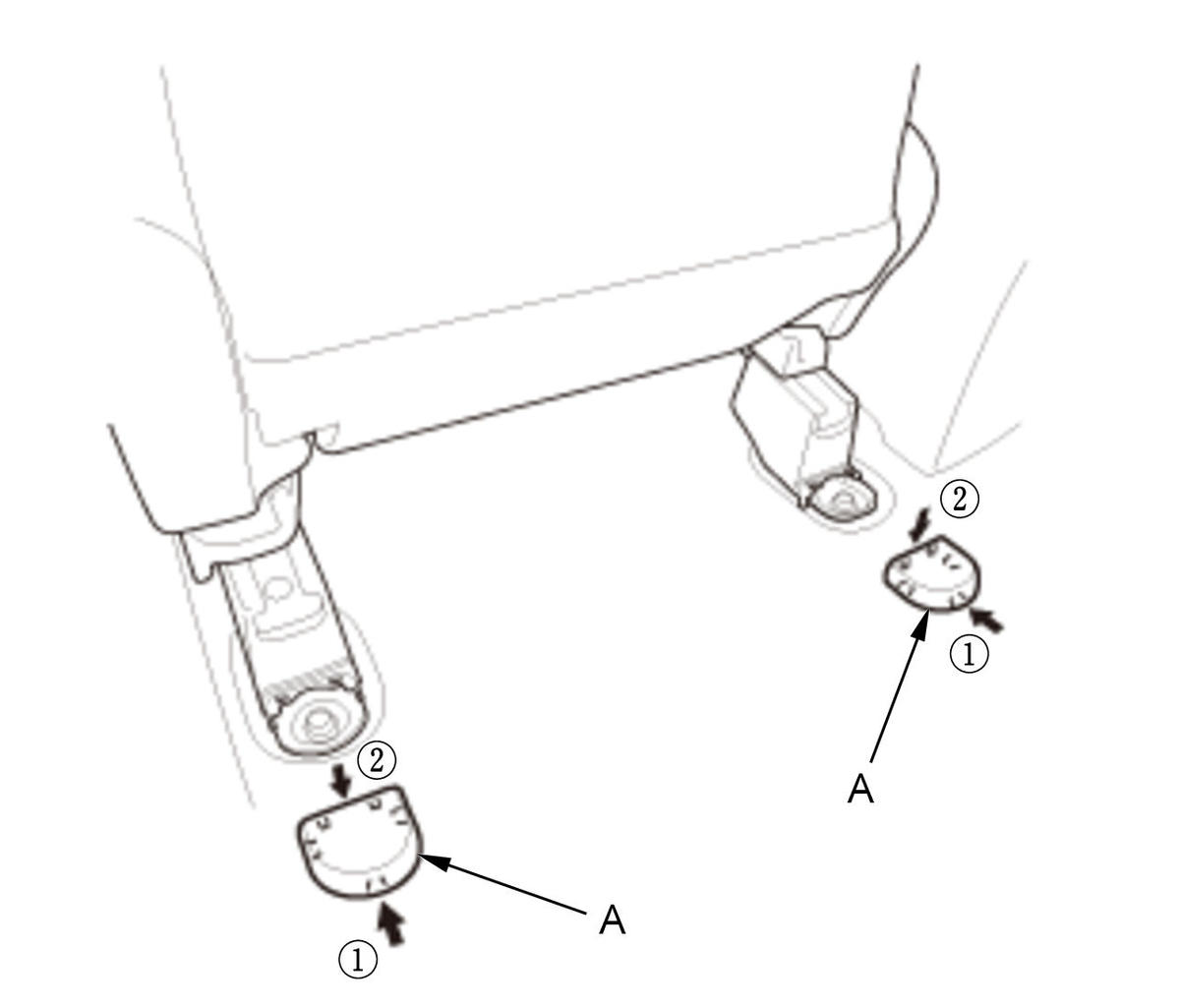

4. Front Seat Track End Covers - Install

   Courtesy of HONDA, U.S.A., INC.

   1. Install the seat track end covers (A).

5. Front Seat Belt Lower Anchor Bolt - Install

   1. Install the front seat belt lower anchor bolt .

6. ODS Unit (USA and Canada Models) - Initialize

   1. Do the ODS unit initialization after the front passenger's seat replacement .
