Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Passenger's Seat Belt Lower Anchor Bolt - Remove
2. Front Passenger's Seat Recline Cover - Remove
   NOTE: If removing the front passenger's seat recline cover, you do not need to remove the front passenger's seat.
3. Front Passenger's Power Seat Adjustment Switch - Remove

   Courtesy of HONDA, U.S.A., INC.

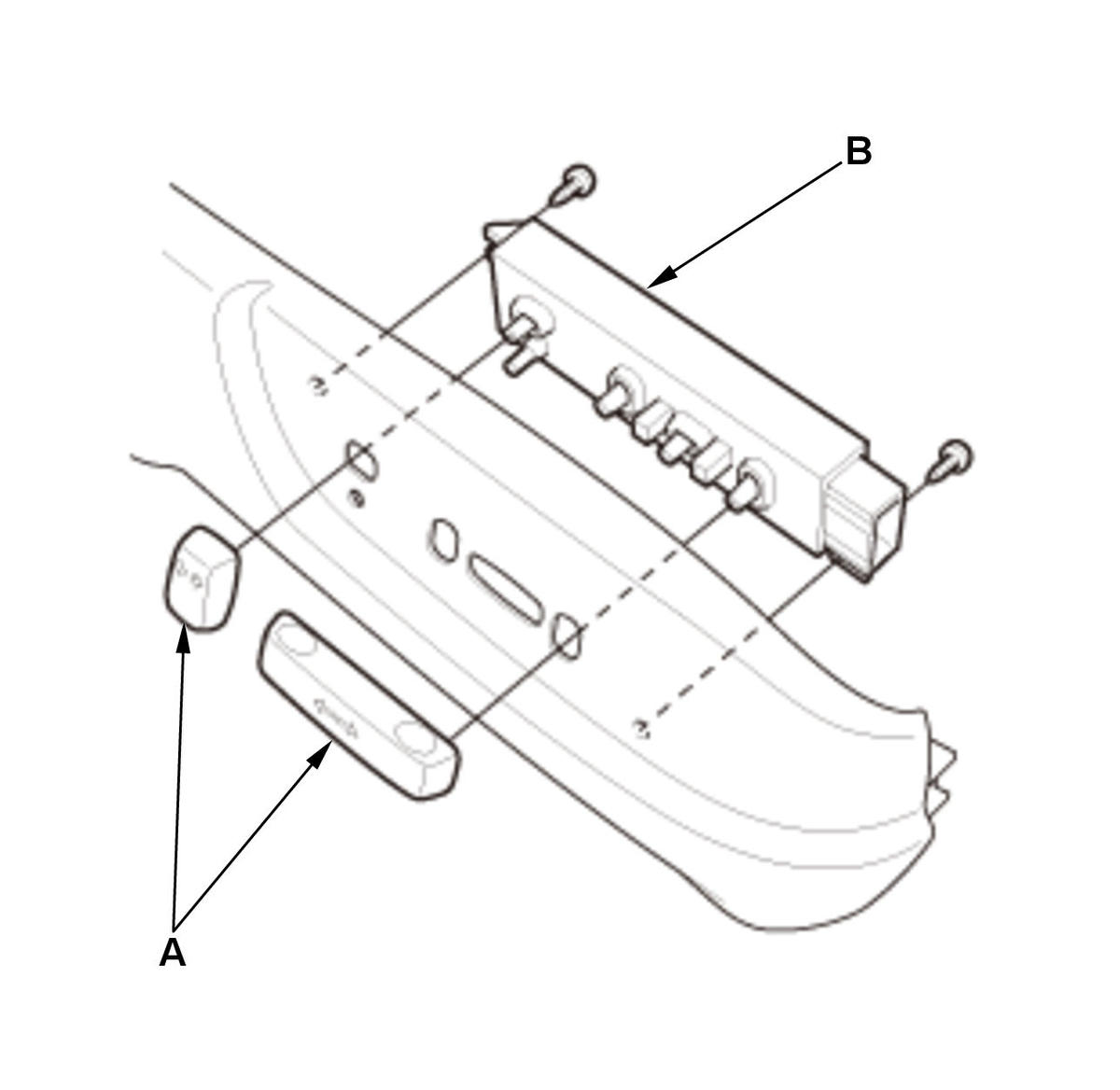

   1. Remove the front passenger's power seat adjustment switch knobs (A). 2. Remove the front passenger's power seat adjustment switch (B).

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
