Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

1. Steering Wheel - Remove
2. Steering Wheel Rear Cover - Remove
3. Paddle Shifter - Remove

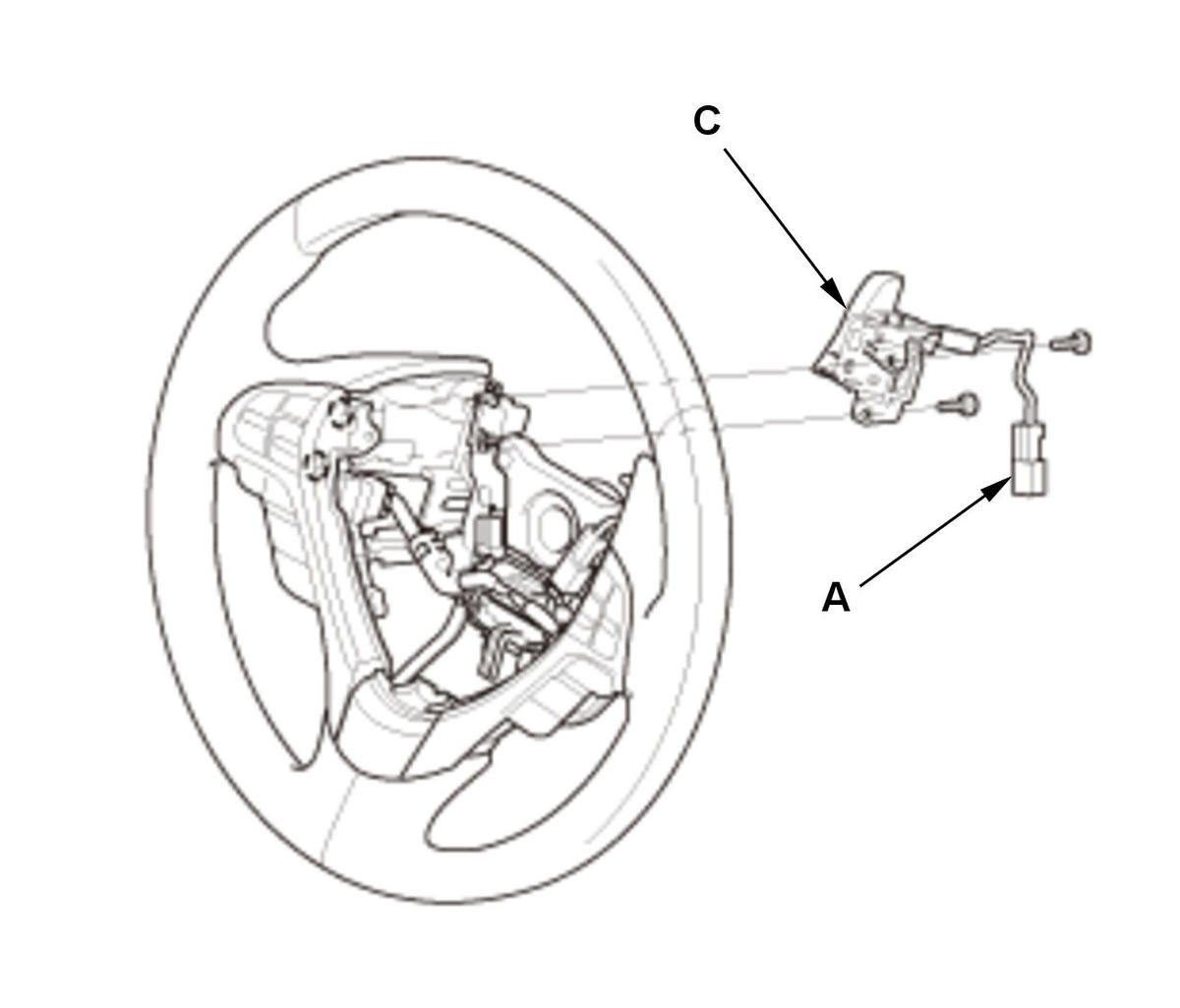

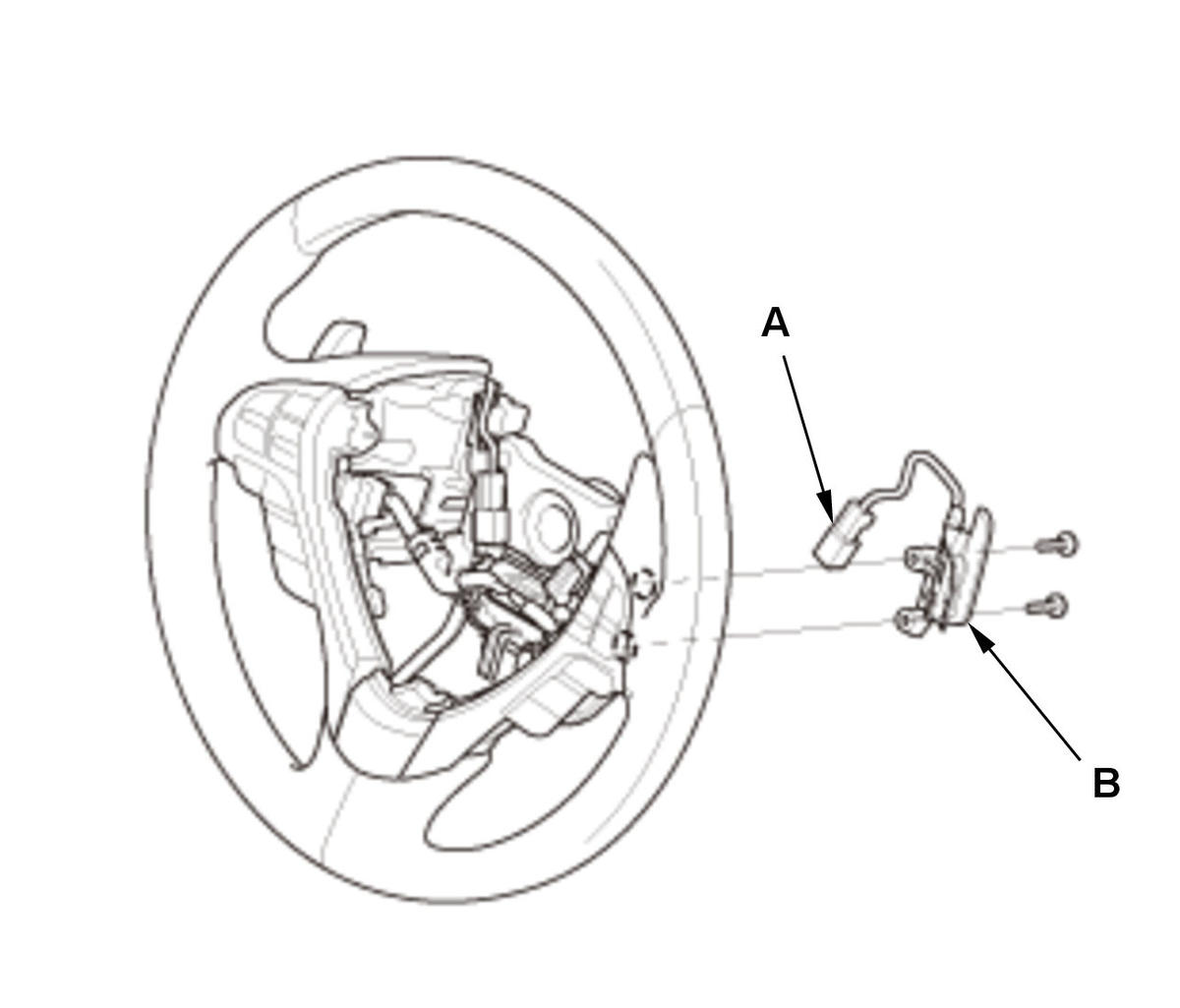

   Paddle Shifter + (Upshift Switch)  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Paddle Shifter - (Downshift Switch)  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Disconnect the connectors (A). 2. Remove the paddle shifter + (upshift switch) (B) and the paddle shifter - (downshift switch) (C).

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

5. VSA Sensor Neutral Position - Memorize
6. Steering Angle Sensor Neutral Position - Clear
