DTC U128D (Automatic Lighting/Rain Sensor)

DTC U128D  : Automatic Lighting/Rain Sensor Lost Communication With Gauge Control Module

DTC (Automatic Lighting/Rain Sensor)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Press the engine start/stop button to select the OFF mode and then the ON mode.

   -3. Wait for at least 6 seconds.

   -4. Check for DTCs with the HDS.

   DTC Description	DTC
   U128D Automatic Lighting/Rain Sensor Lost Communication With Gauge Control Module

   Is DTC U128D indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Determine possible failure area (gauge control module power and ground, B CAN line)

   -1. Select GAUGES from the BODY ELECTRICAL SYSTEM SELECT menu, and then select DATA LIST.

   Does the DATA LIST appear?

   YES

   Go to step 6.

   NO

   Go to step 3.

3. Fuse check

   -1. Check the following fuse.

   Fuse	No. A29 (10 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   Go to step 4.

   NO

   Replace the fuse. If the fuse blows again, repair a short to ground in the No. A29 (10 A) fuse circuit.

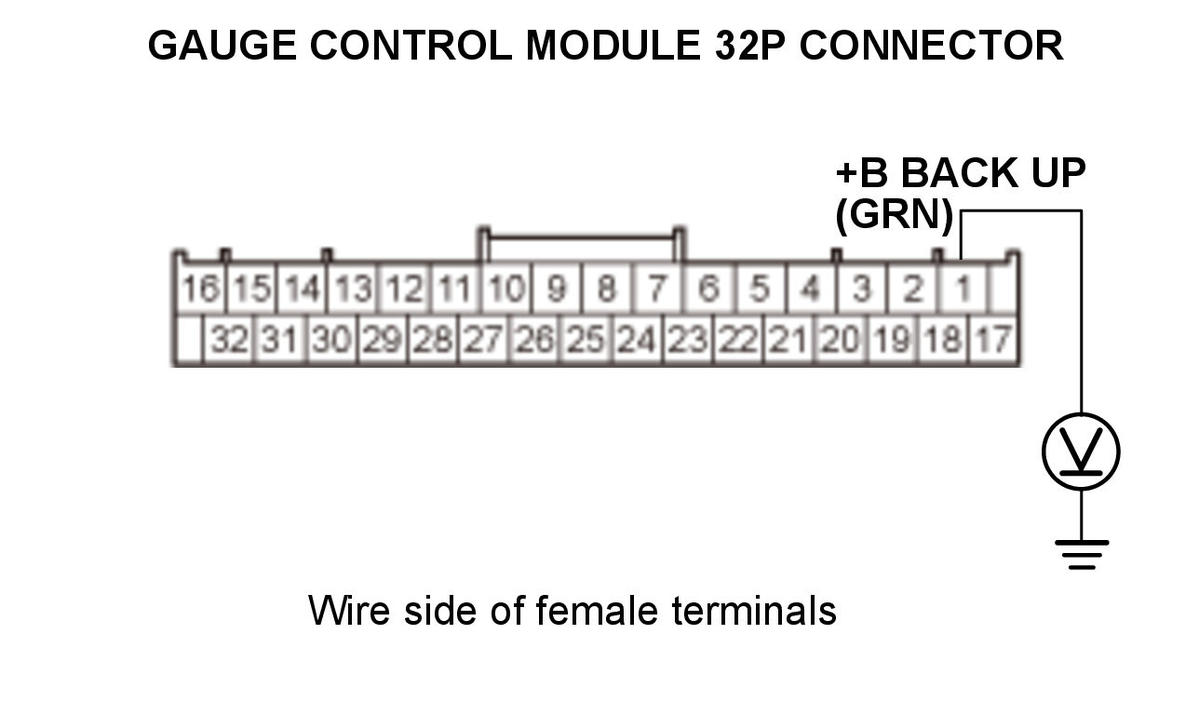

4. Open wire check (+B BACK UP line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connector.

   Gauge control module 32P connector

   -3. Measure the voltage between test points 1 and 2.

   Test condition	OFF mode Gauge control module 32P connector: disconnected
   Test circuit	+B BACK UP
   Test point 1	Gauge control module 32P connector No. 1 (GRN)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Repair an open or high resistance in the ground wire or poor ground (G502, G503).

   NO

   Repair an open or high resistance in the wire.

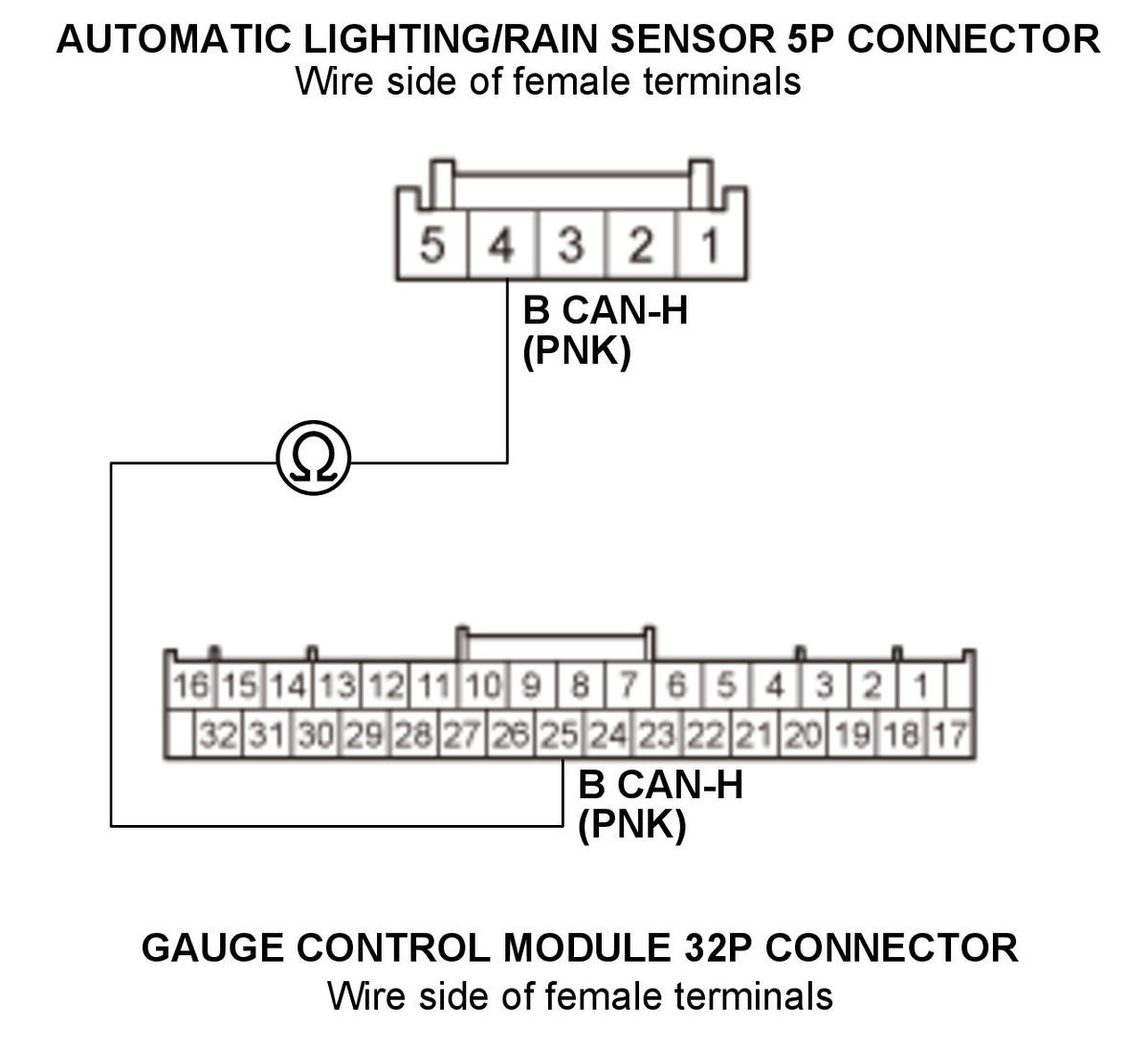

5. Open wire check (B CAN-H line)

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Disconnect the following connector.

   Automatic lighting/rain sensor 5P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	OFF mode Gauge control module 32P connector: disconnected Automatic lighting/rain sensor 5P connector: disconnected
   Test circuit	B CAN-H
   Test point 1	Automatic lighting/rain sensor 5P connector No. 4 (PNK)
   Test point 2	Gauge control module 32P connector No. 25 (PNK)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The B CAN-H wire is OK. Go to step 6.

   NO

   An open or poor connection in the B CAN-H wire between the gauge control module and the automatic lighting/rain sensor.

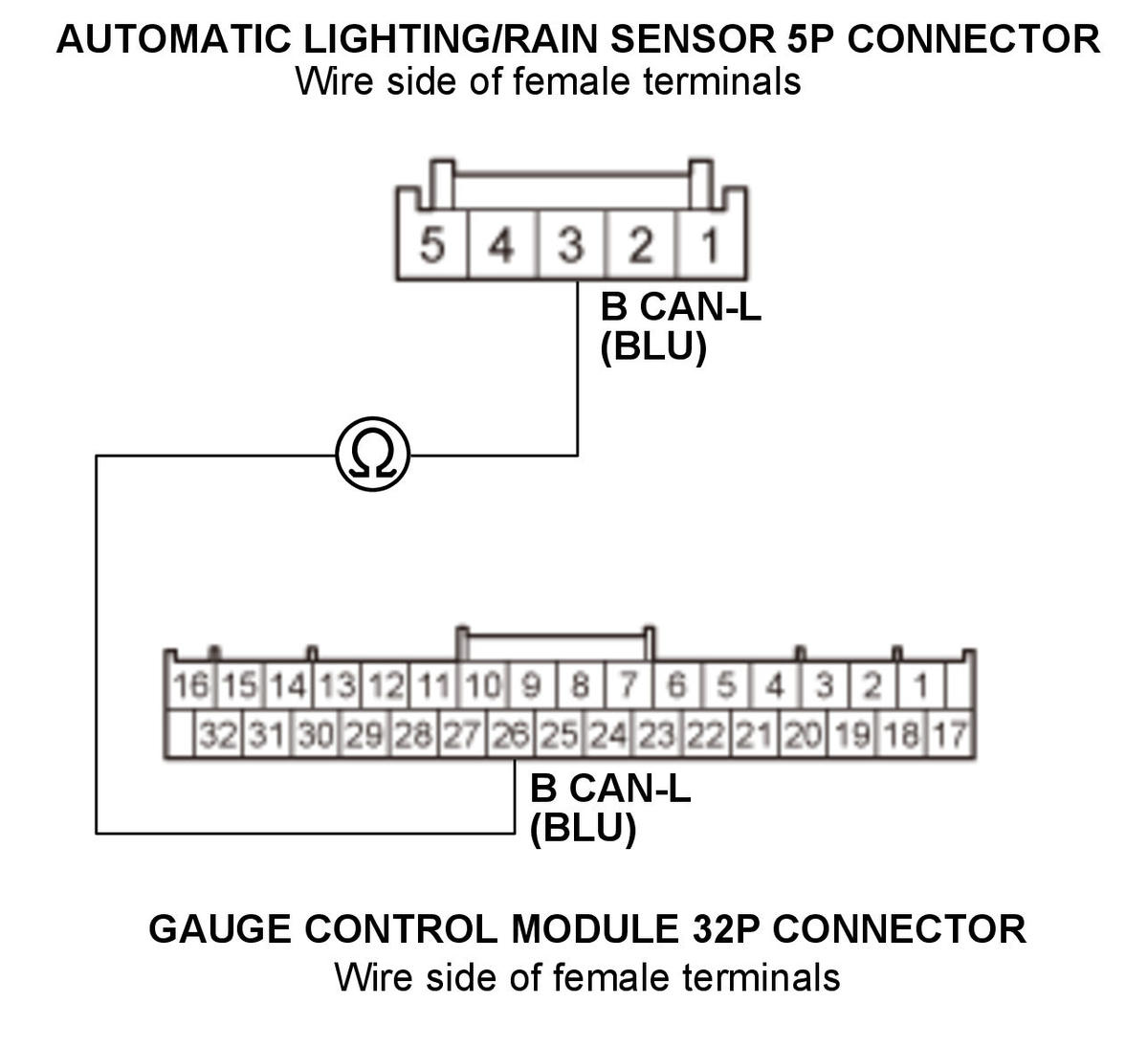

6. Open wire check (B CAN-L line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	OFF mode Gauge control module 32P connector: disconnected Automatic lighting/rain sensor 5P connector: disconnected
   Test circuit	B CAN-L
   Test point 1	Automatic lighting/rain sensor 5P connector No. 3 (BLU)
   Test point 2	Gauge control module 32P connector No. 26 (BLU)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The B CAN-L wire is OK. Replace the automatic lighting/rain sensor .

   NO

   An open or poor connection in the B CAN-L wire between the gauge control module and the automatic lighting/rain sensor.
