Climate Control System Component Location Index (2.0L Engine)

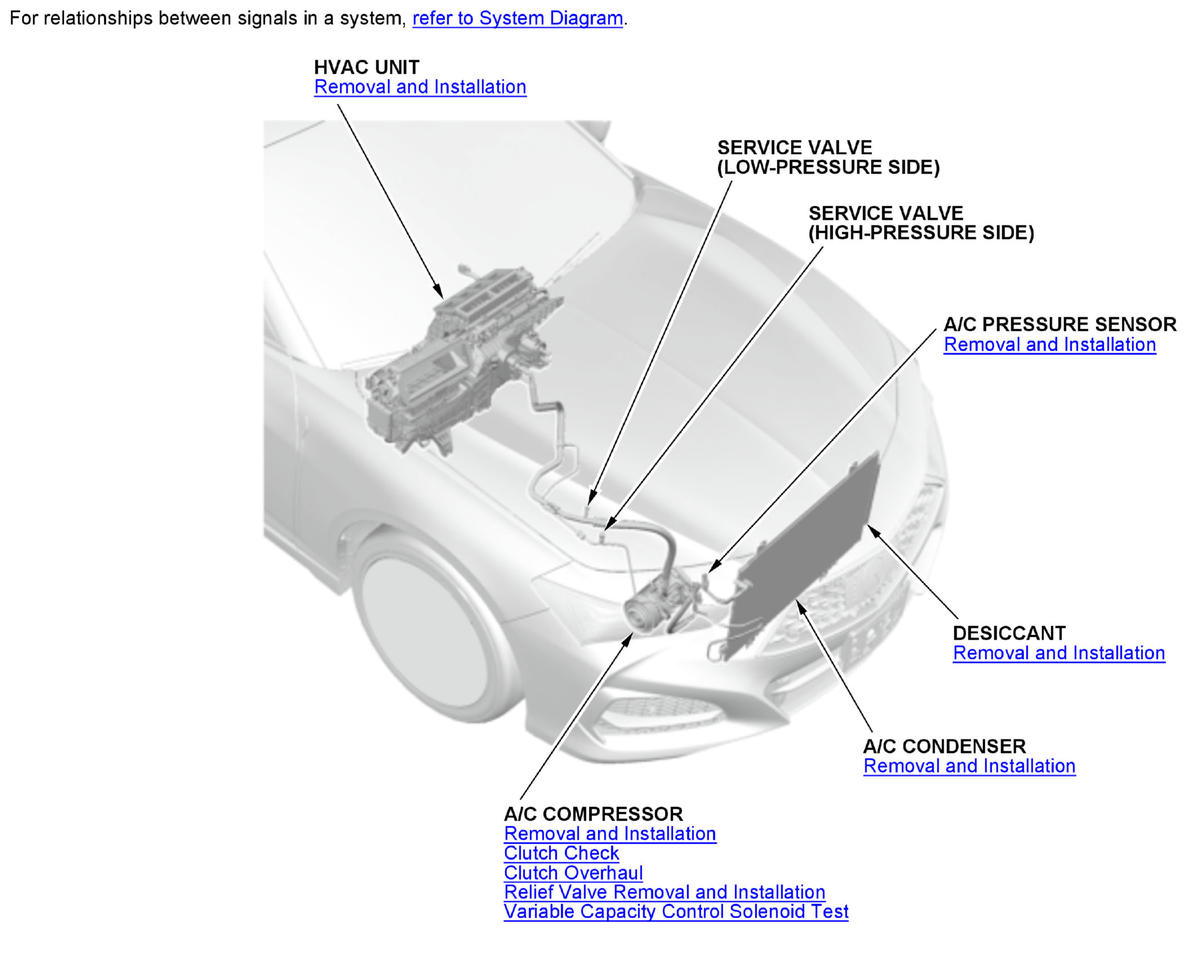

GHH484365

Courtesy of HONDA, U.S.A., INC.

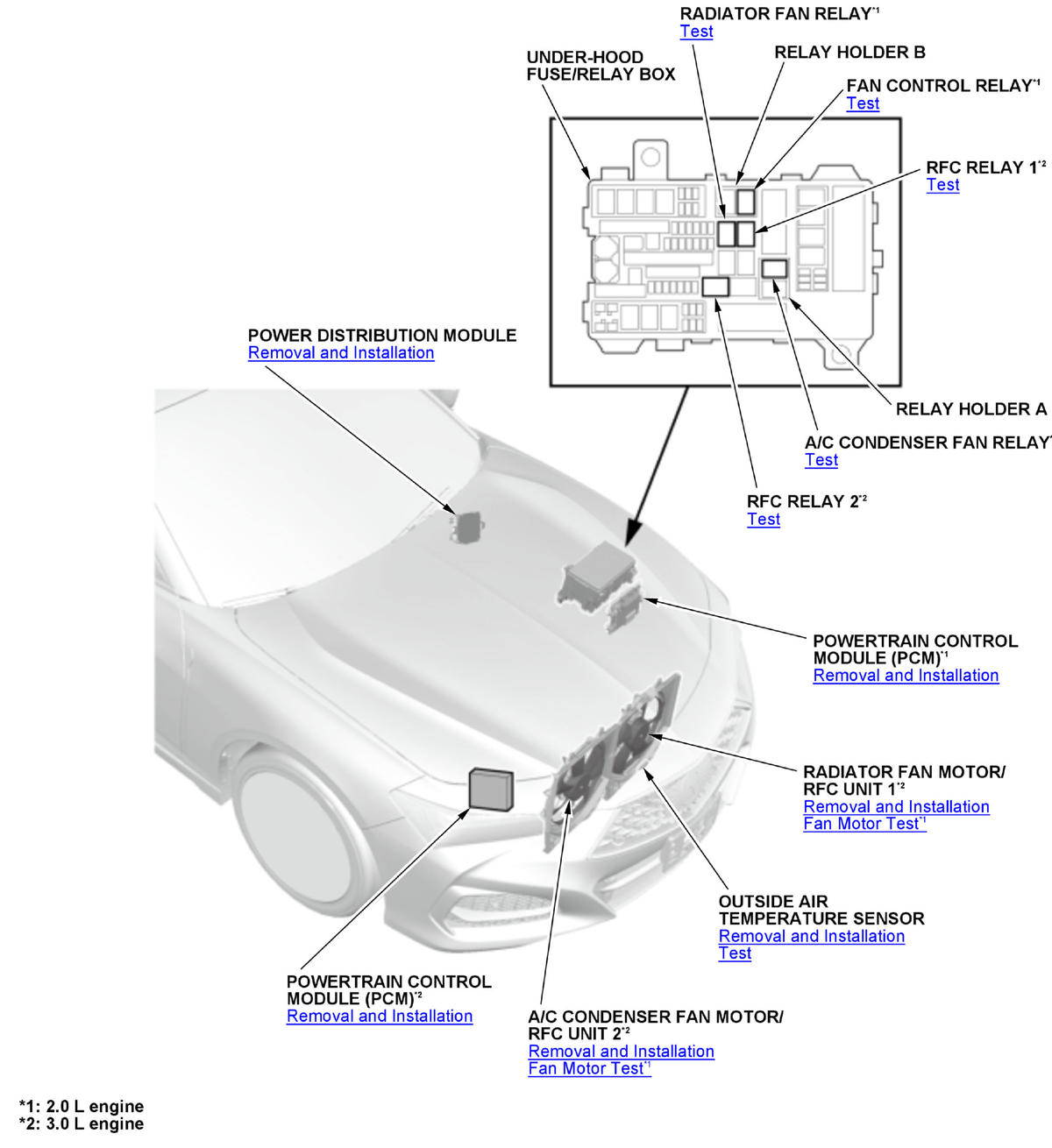

GHH484366

Courtesy of HONDA, U.S.A., INC.

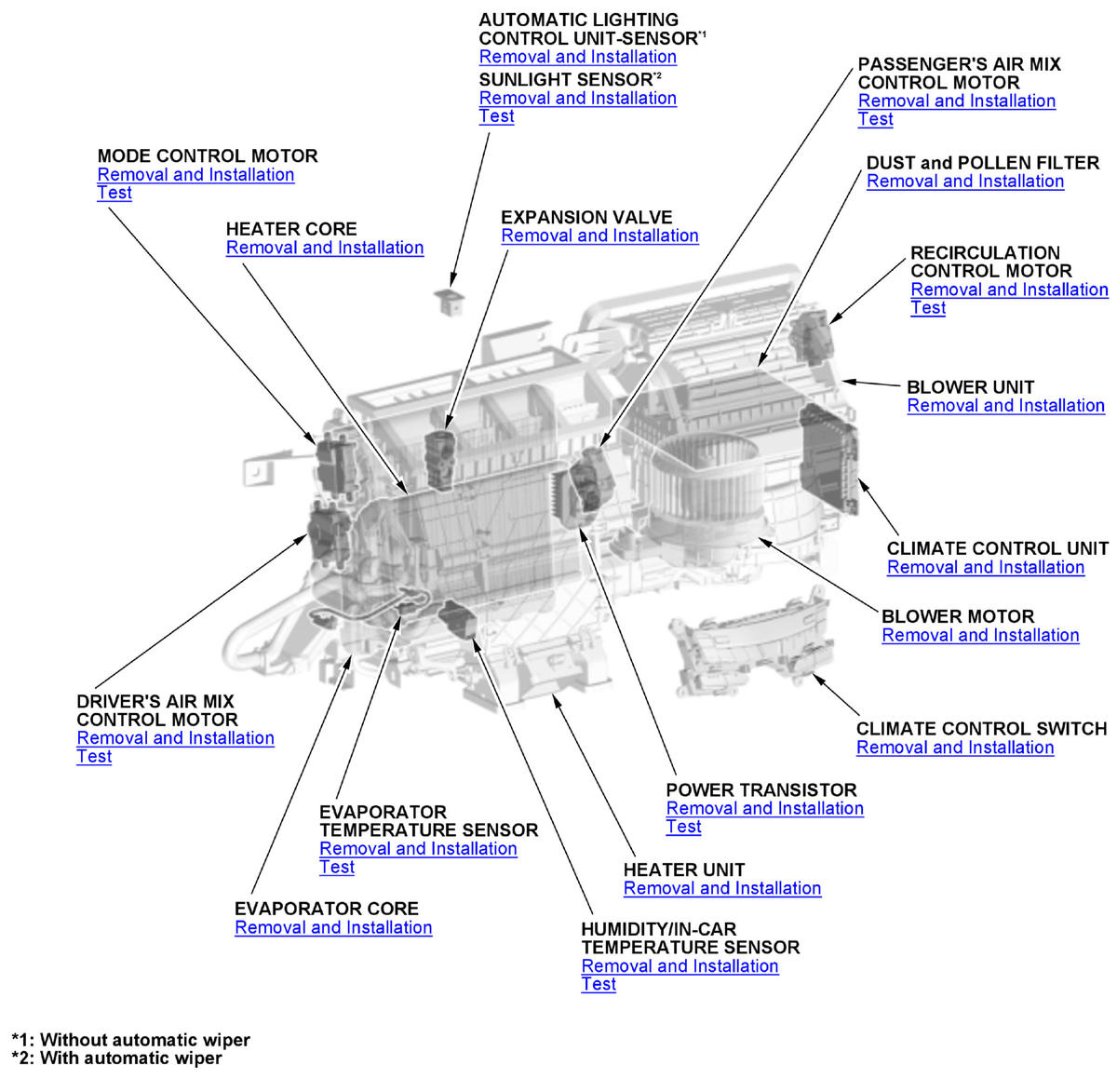

GHH484367

Courtesy of HONDA, U.S.A., INC.
