Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

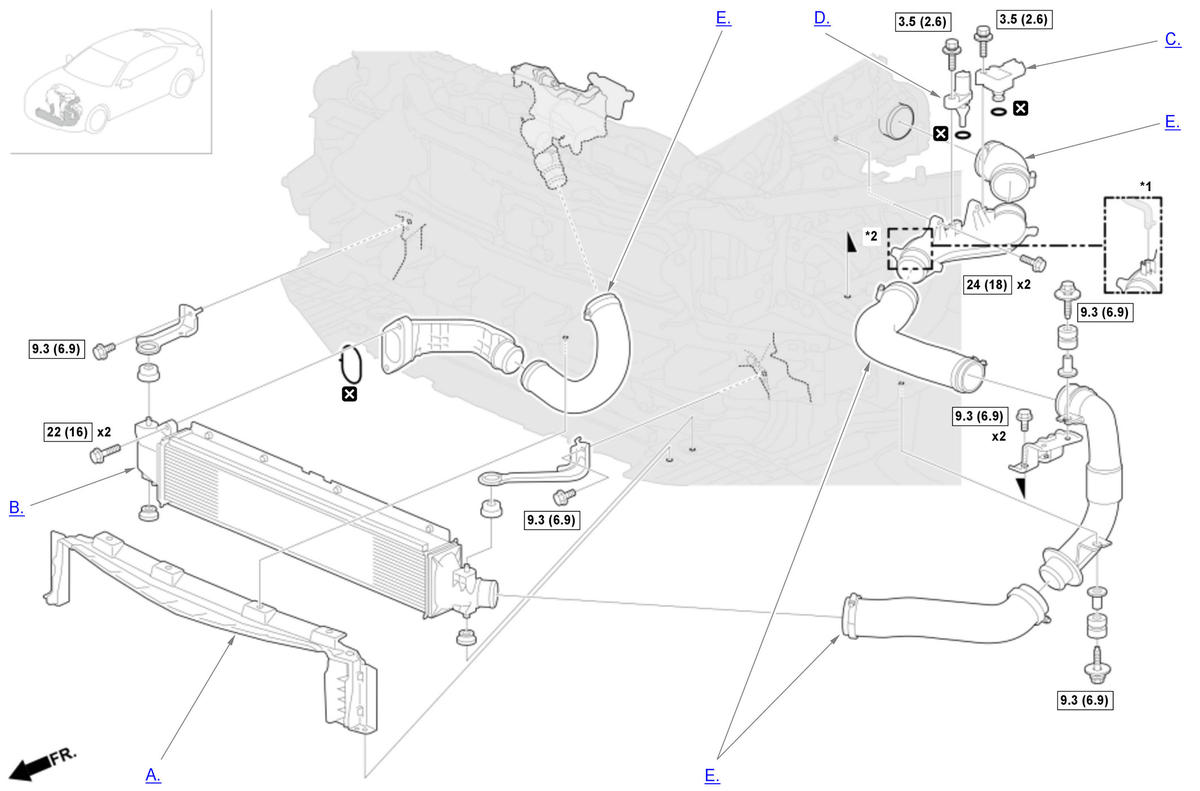

1. A.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Bumper

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

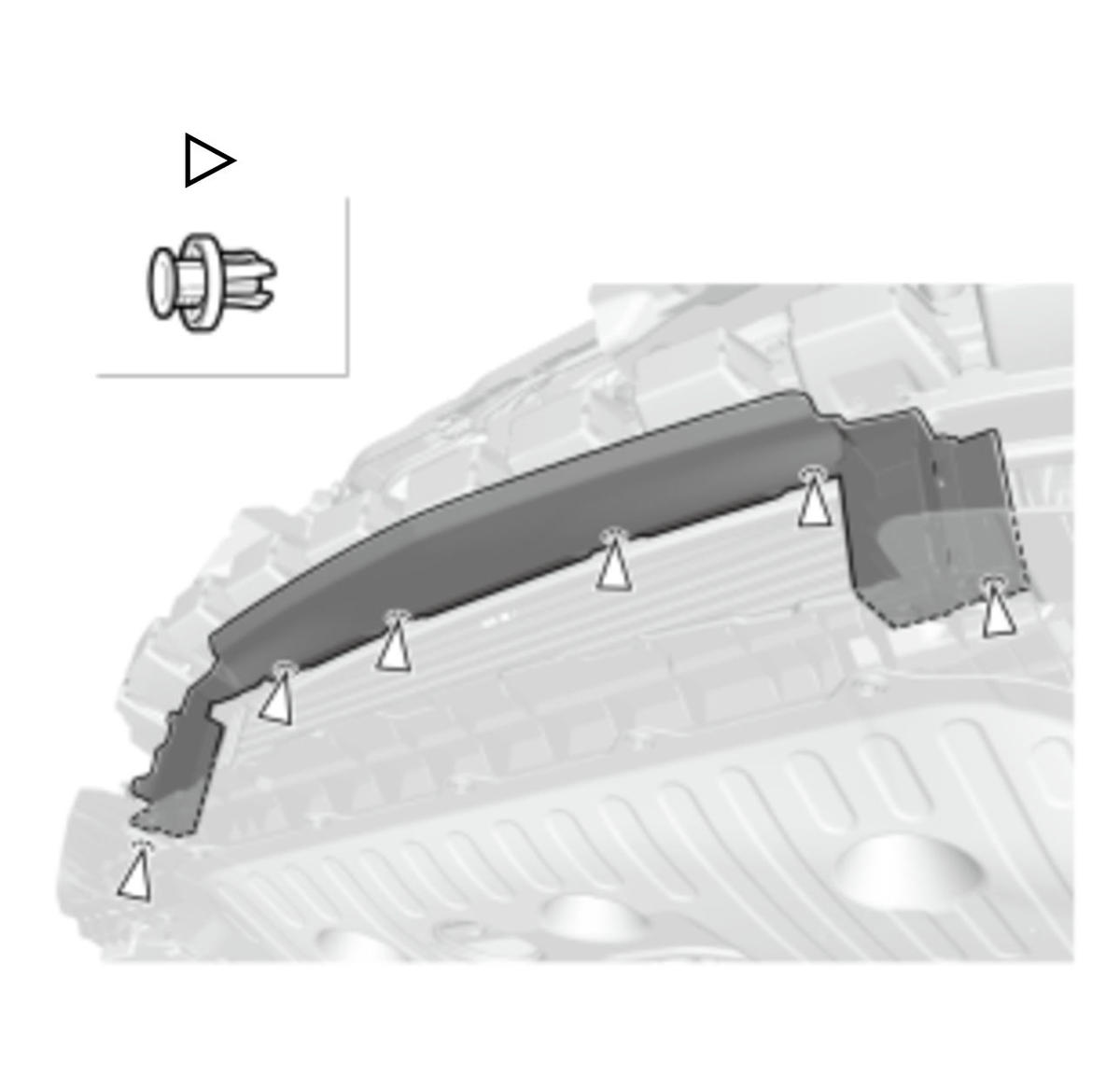

   • Refer to the figure.
2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Bumper

   Sub-Procedure

   Installation

   NOTE:

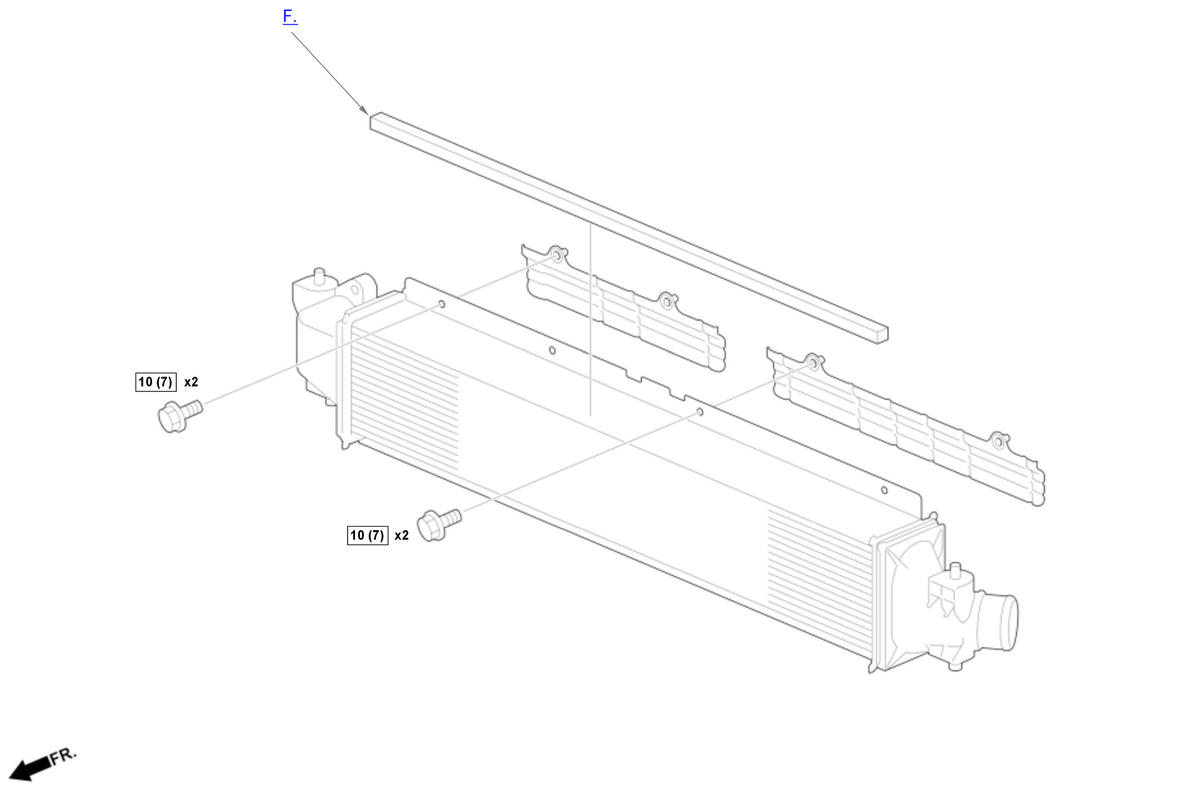

   • If you are reinstalling the original intercooler, make sure the EPDM foam (letter reference F) is not damaged or distorted. Replace it if it is.
   • If you are installing a new intercooler, make sure the EPDM foam (letter reference F) is installed.
3. C.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

4. D.-

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Engine Oil

5. E.-

   NOTE:  Review the Intake Air System and Exhaust System Service Precautions before doing repairs or service.

6. F.-

   Sub Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

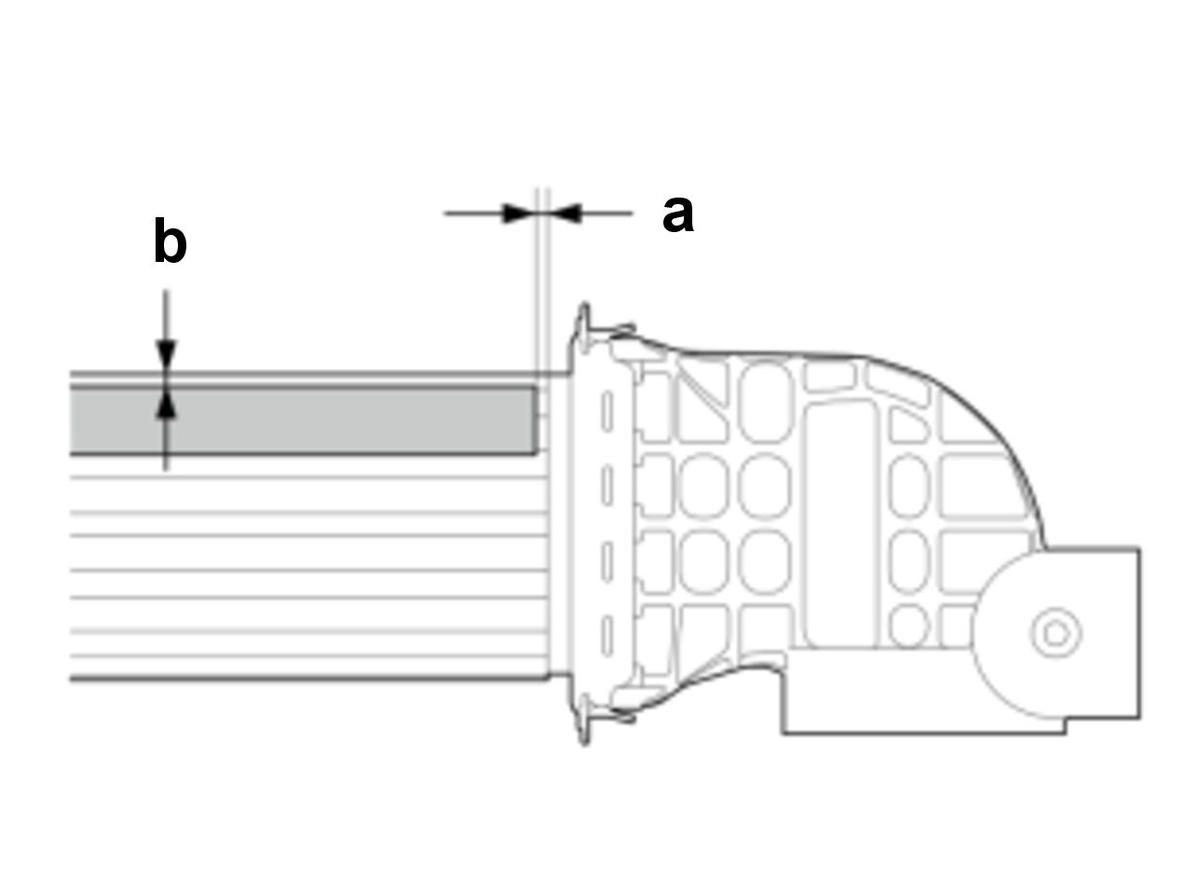

   Specifications

   Standard Value
   a	0-5.0 mm (0-0.197 in)
   b
