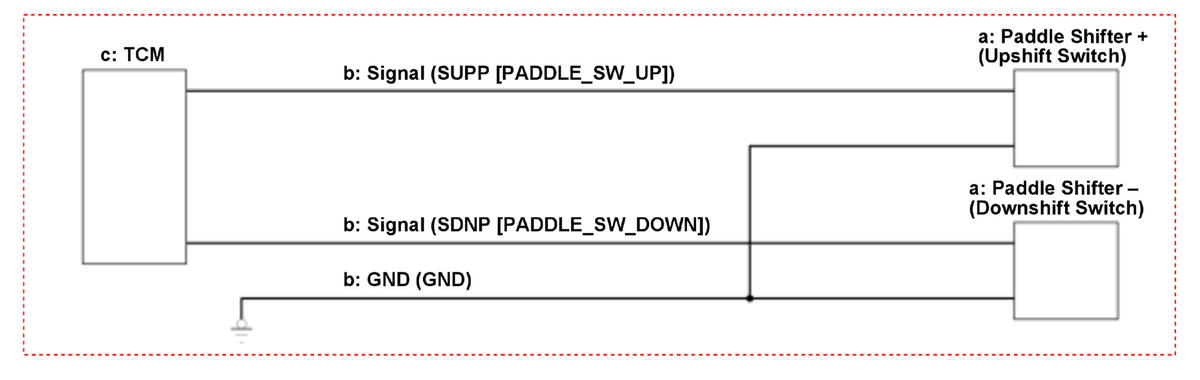

Inspection Outline
- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | Paddle Shifter | Do the Paddle Shifter Test . |
| b | External Circuit | SUPP [PADDLE_SW_UP], SDNP [PADDLE_SW_DOWN], GND Circuit Inspection |
| c | TCM | TCM Inspection |
