Inspection Outline

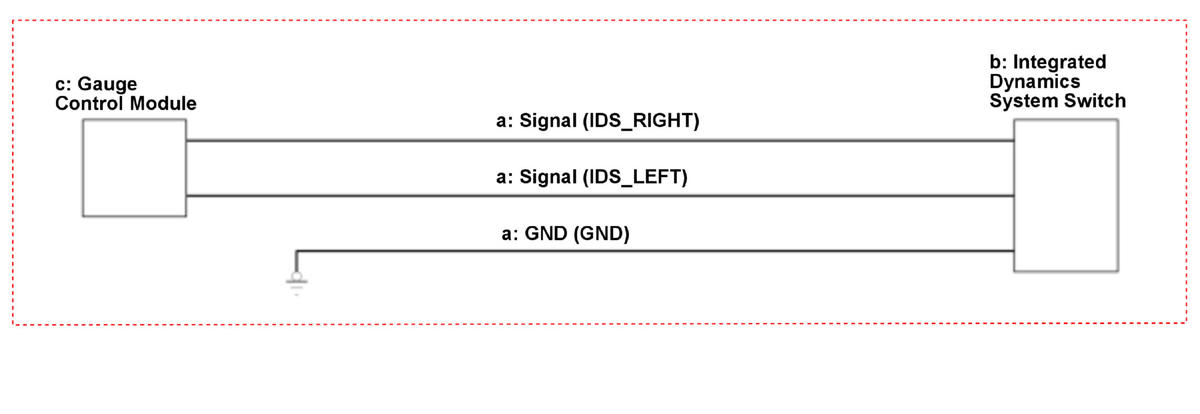

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- Gauge Control Module [Gauge Control Module]: Go to the indicated DTC's troubleshooting .
| Inspection items | Work Items | |
|---|---|---|
| a | External Circuit | IDS_LEFT, IDS_RIGHT, GND Circuit Inspection |
| b | Integrated Dynamics System Switch | Integrated Dynamics System Switch Inspection |
| c | Gauge Control Module | Gauge Control Module Inspection |
