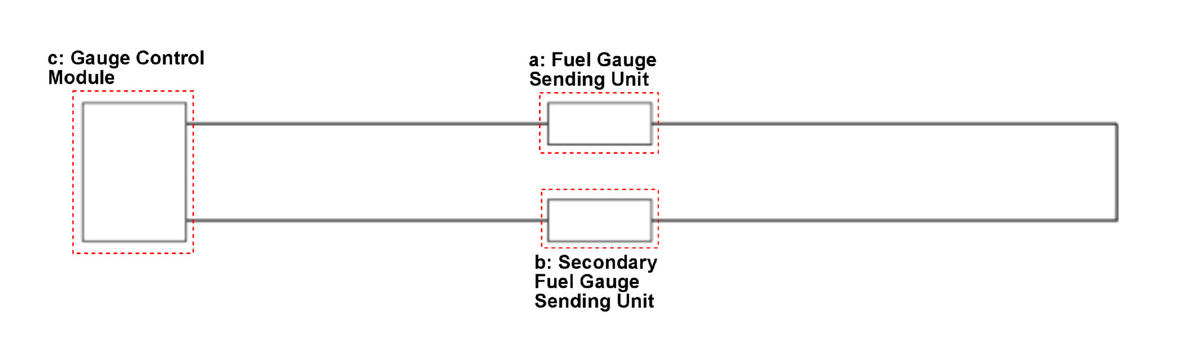

Inspection Outline
- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
| Inspection items | Work Items | |
|---|---|---|
| a | Fuel Gauge Sending Unit | Do the Fuel Gauge Sending Unit Test |
| b | Secondary Fuel Gauge Sending Unit | Do the Secondary Fuel Gauge Sending Unit Test |
| - | Fuel Tank | Fuel Tank Inspection |
| c | Gauge Control Module | Gauge Control Module Inspection |
