Parking and Back-Up Sensor Switch Test: Test

How to use this manual .

1. Parking and Back-Up Sensor Switch - Test

   Preconditions

   • Driver's Outer Trim Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

     NOTICE:

     • Make sure the correct test lead (+or -) is placed on the terminal.
     • When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

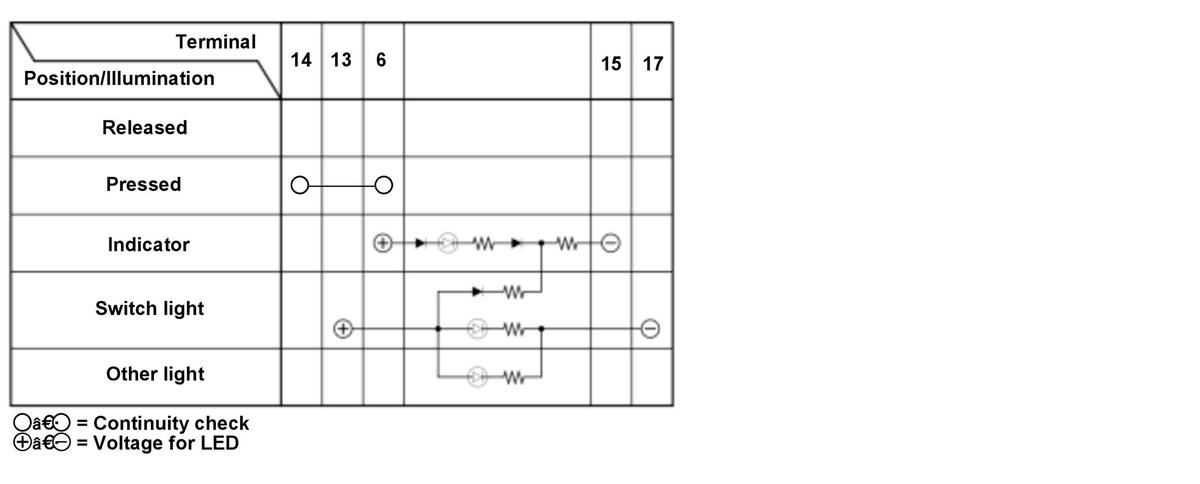

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

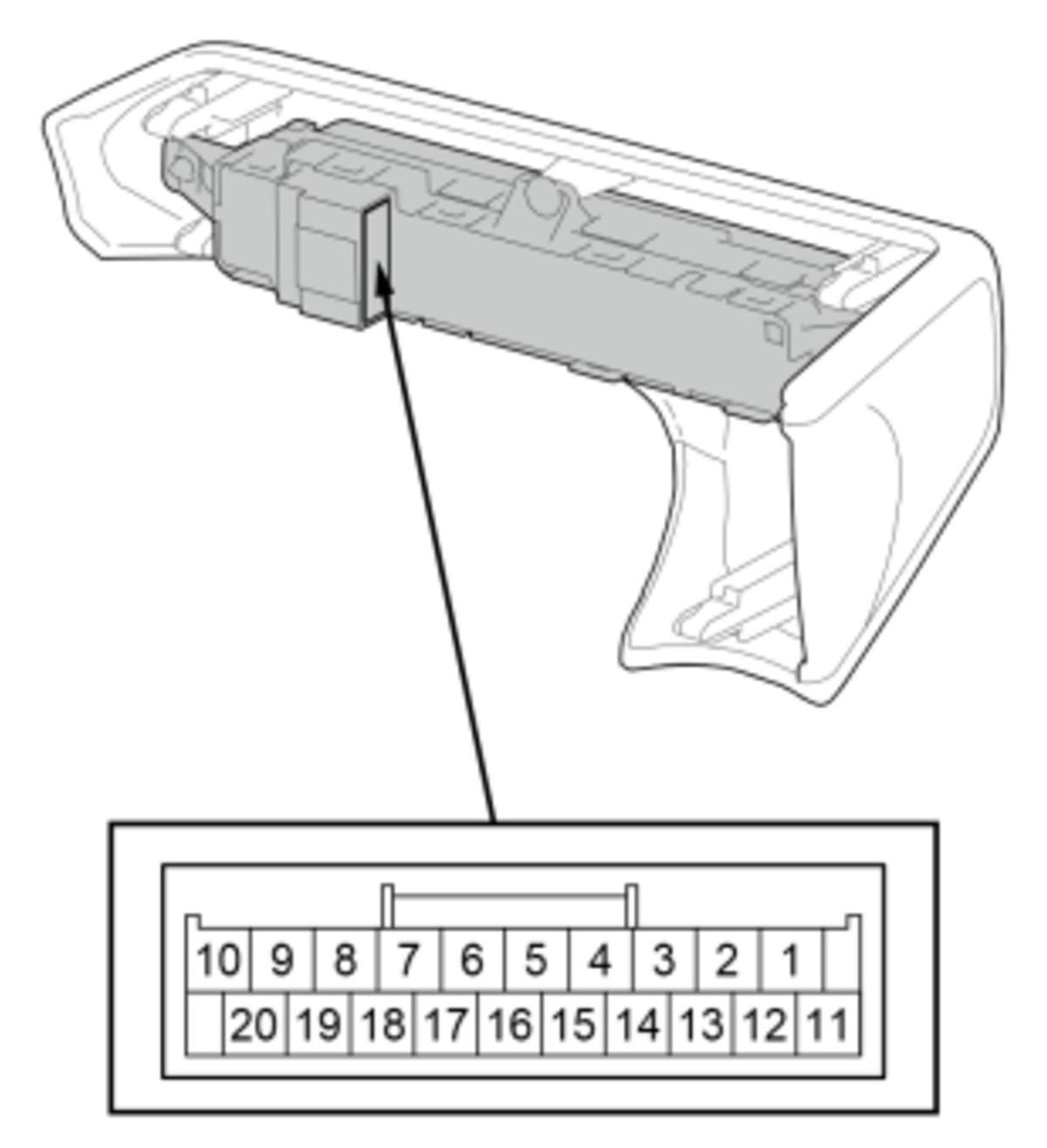

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the parking and back-up sensor switch .
