Parking And Back-Up Sensor Control Unit Connector For Inputs And Outputs

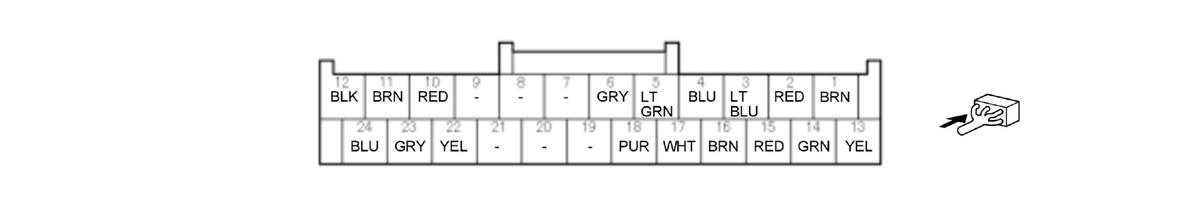

Parking and Back-Up Sensor Control Unit 24P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	IG1_METER	IG1 power source
2	BOF_SIDE_R	Power source for front sensors
3	SOF_SIDE_L	Communication line
4	SOF_CTR_R	Communication line
5	SOF_CTR_L	Communication line
6	SOF_SIDE_L	Communication line
7	Not used	---
8	Not used	---
9	Not used	---
10	AF-CAN_L	Communication line
11	E1_SIDE_R	Ground for front sensors
12	GND	Ground for parking and back-up sensor control unit
13	C/SNSR_SW	Detects C/SNSR_SW signal
14	BOR_SIDE_L	Power source for rear sensors
15	SOR_SIDE_R	Communication line
16	SOR_CTR_R	Communication line
17	SOR_CTR_L	Communication line
18	SOR_SIDE_L	Communication line
19	Not used	---
20	Not used	---
21	Not used	---
22	AF-CAN_H	Communication line
23	E2_SIDE_L	Ground for rear sensors
24	C/SNSR_IND	Outputs C/SNSR_IND signal
