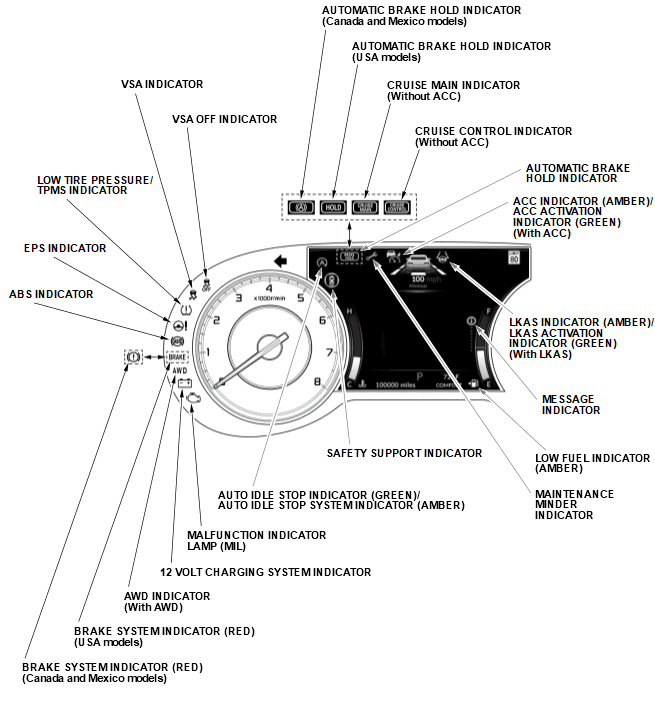

Gauges Component Location Index (Mexico models)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

'21-23

Courtesy of HONDA, U.S.A., INC.

'21-23

Courtesy of HONDA, U.S.A., INC.

'21-23

Courtesy of HONDA, U.S.A., INC.

'24-25

Courtesy of HONDA, U.S.A., INC.

'24-25

Courtesy of HONDA, U.S.A., INC.

'24-25

Courtesy of HONDA, U.S.A., INC.
