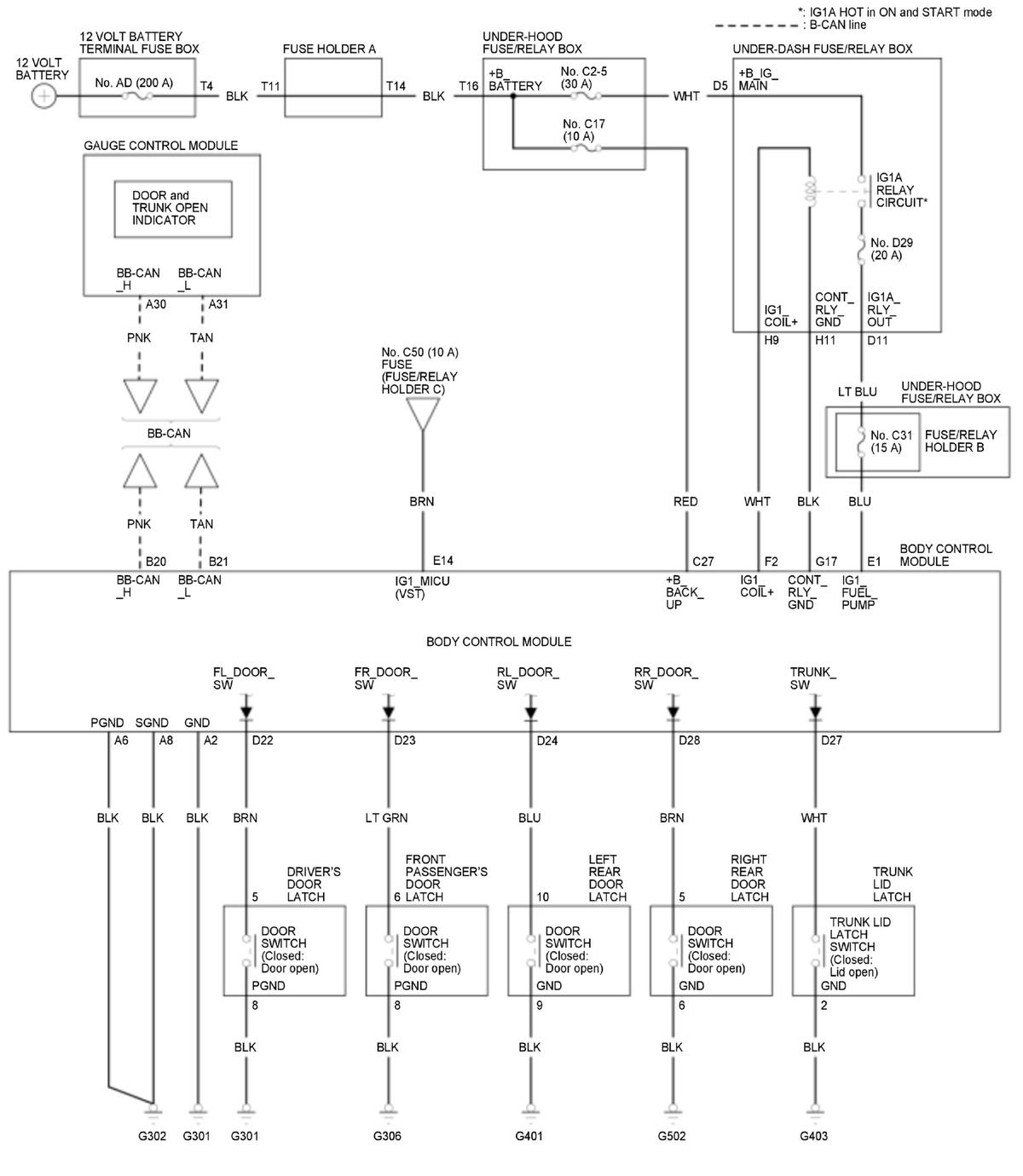

Safety Indicator System Circuit Diagram
Safety Indicator System Circuit Diagram
NOTE:
For details of the CAN circuit, refer to the Network Communications Circuit Diagram.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
