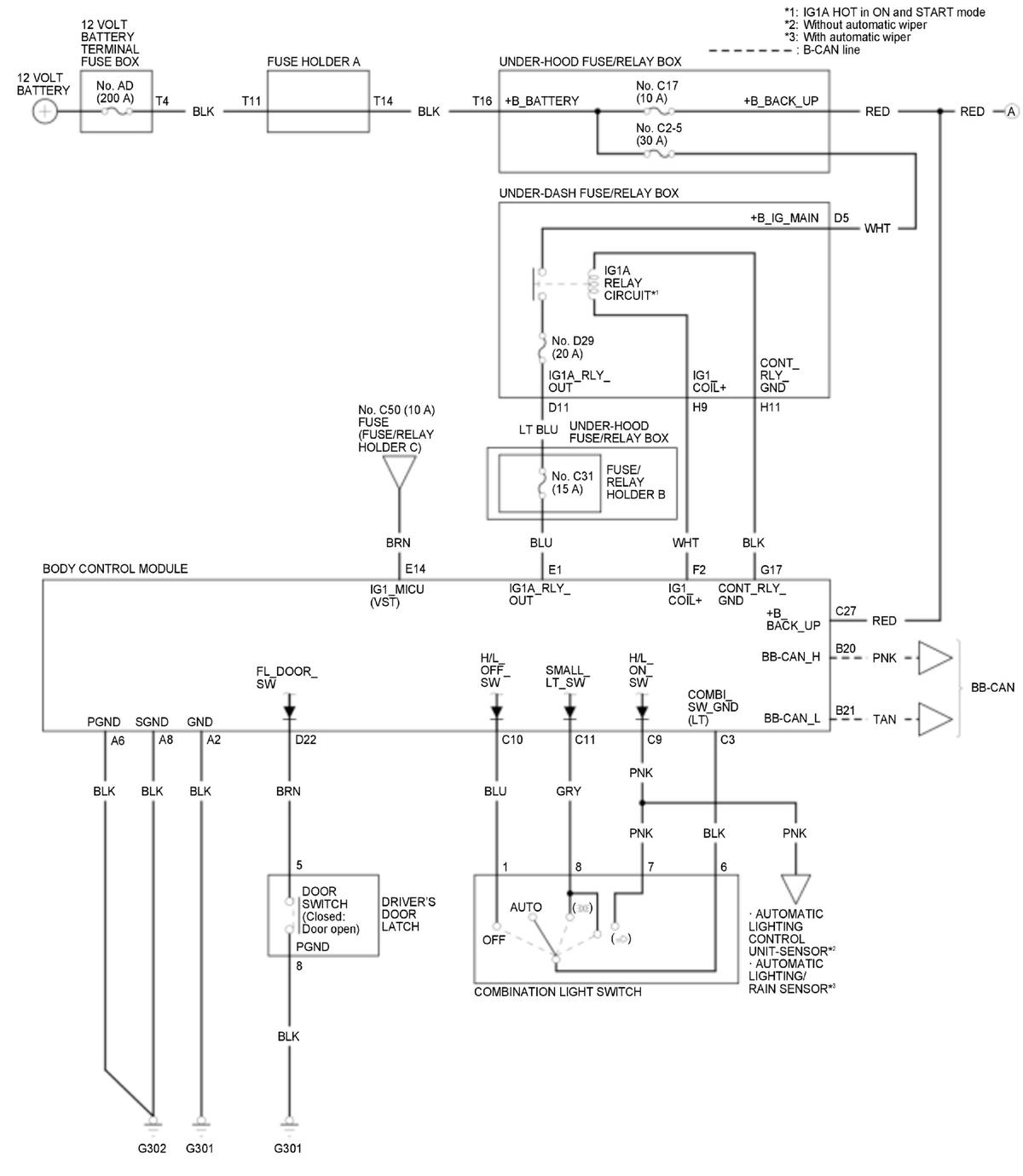

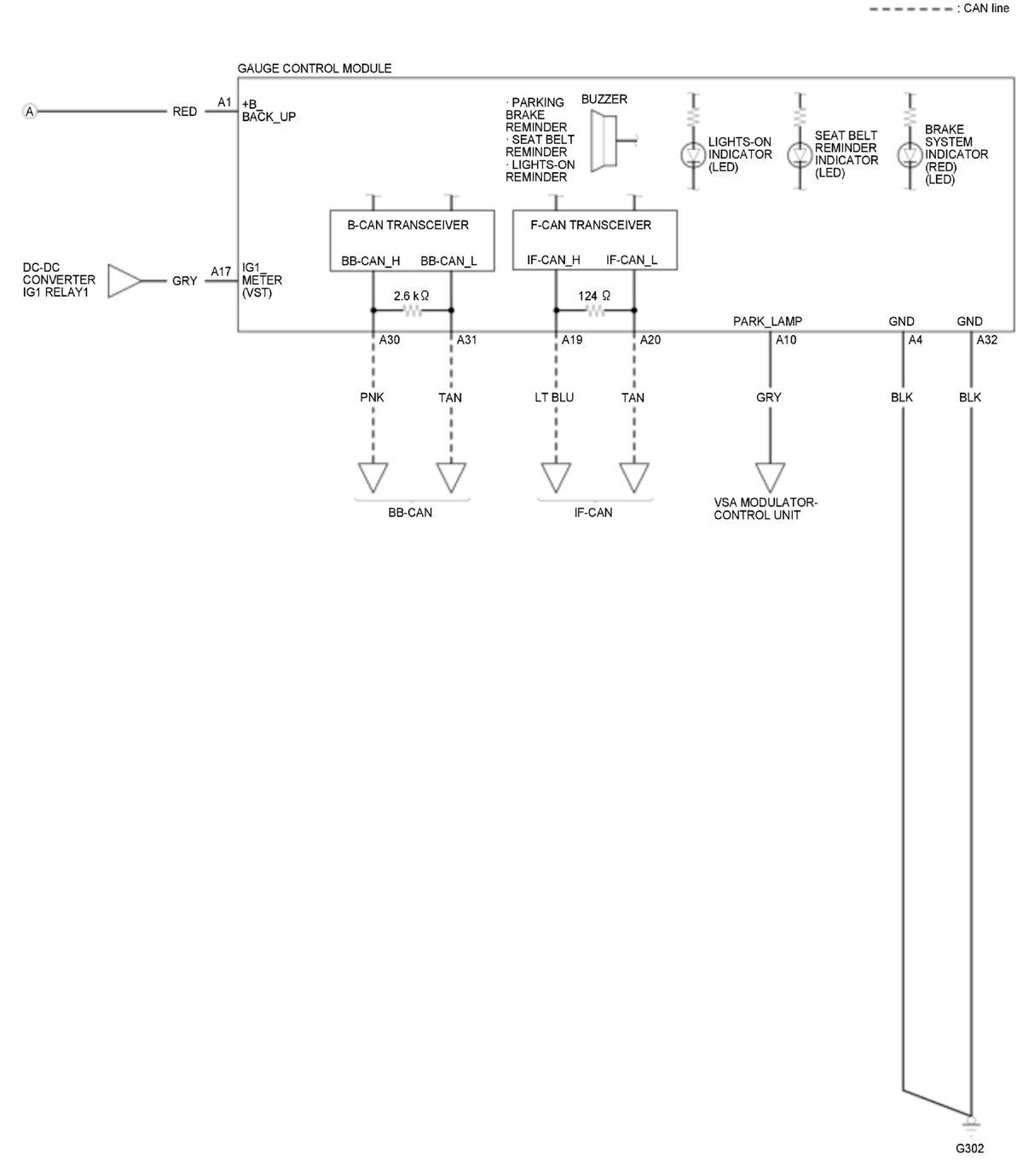

Reminder Systems Circuit Diagram
Reminder Systems Circuit Diagram
NOTE:
For details of the CAN circuit, refer to the Network Communications Circuit Diagram.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
