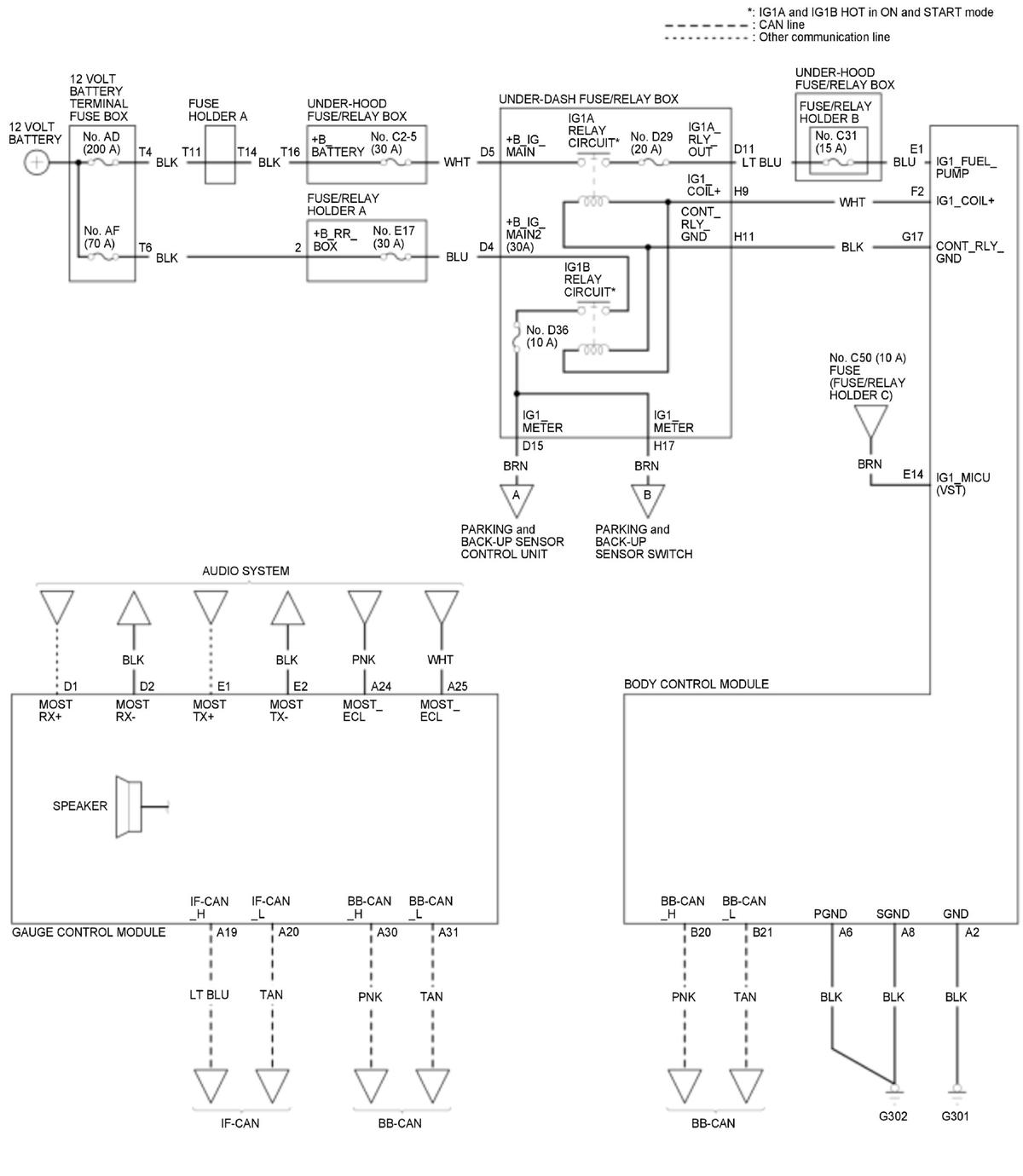

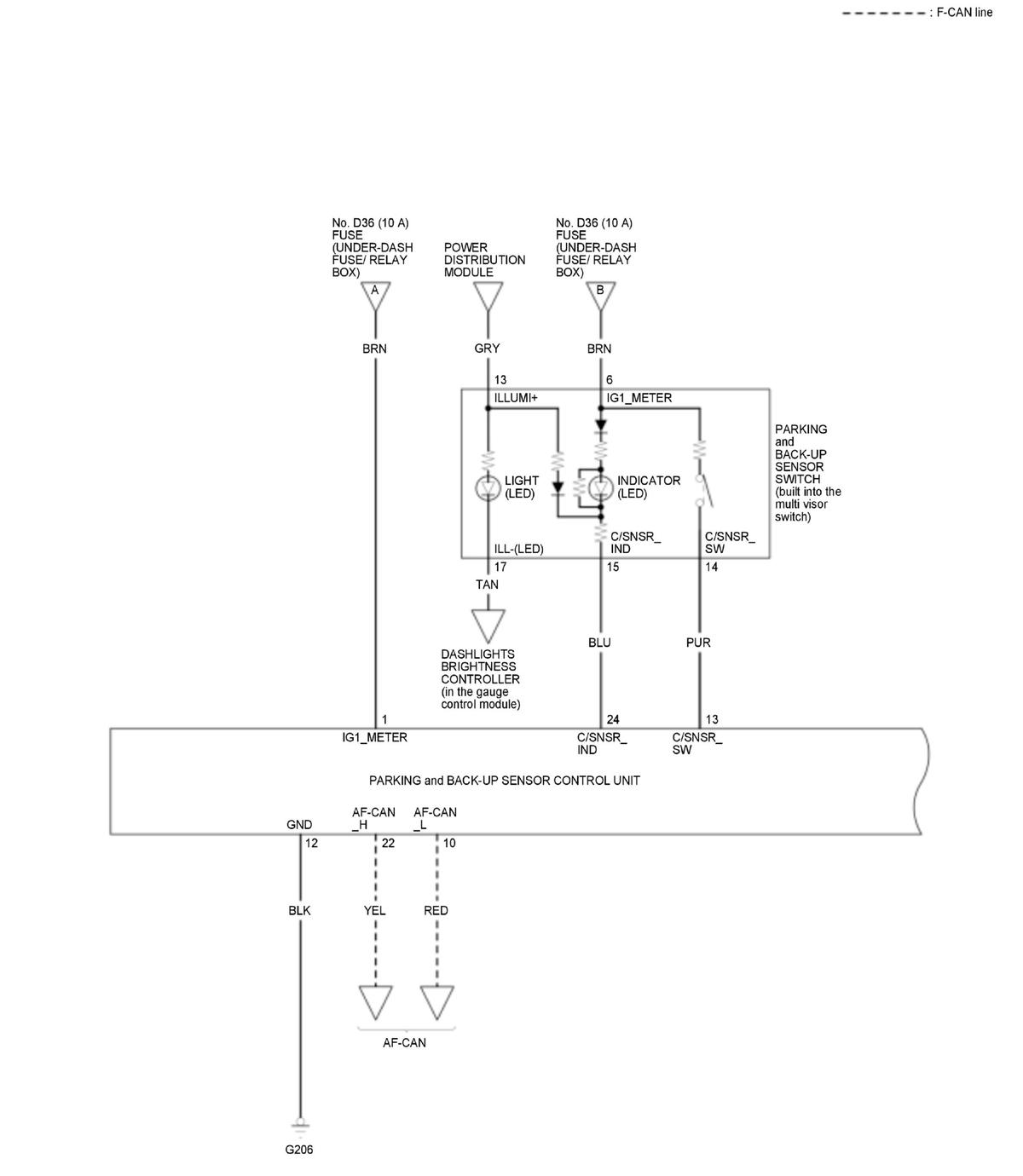

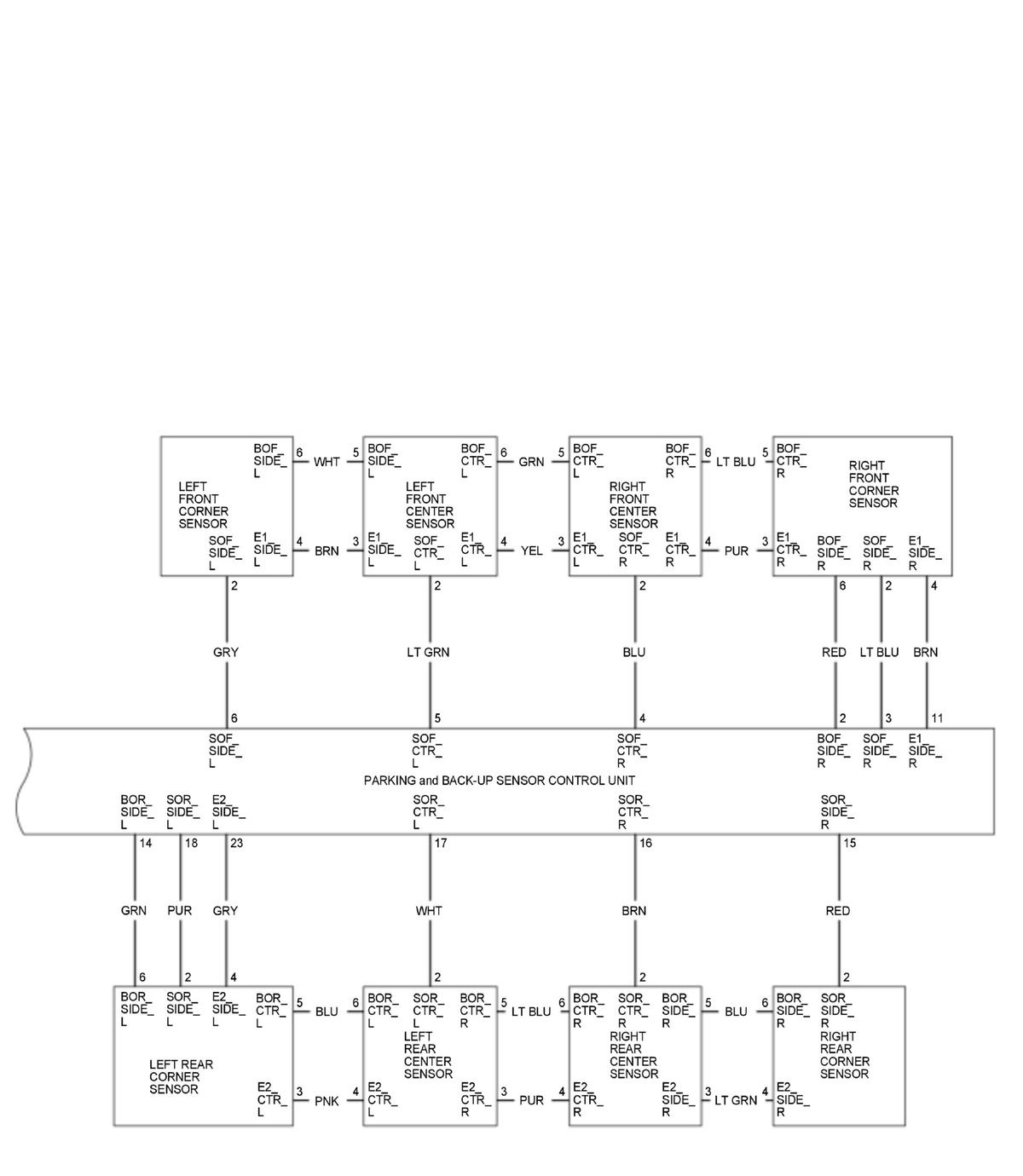

Parking and Back-Up Sensor System Circuit Diagram

NOTE: For details of the CAN circuit, refer to the Network Communications Circuit Diagram.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
