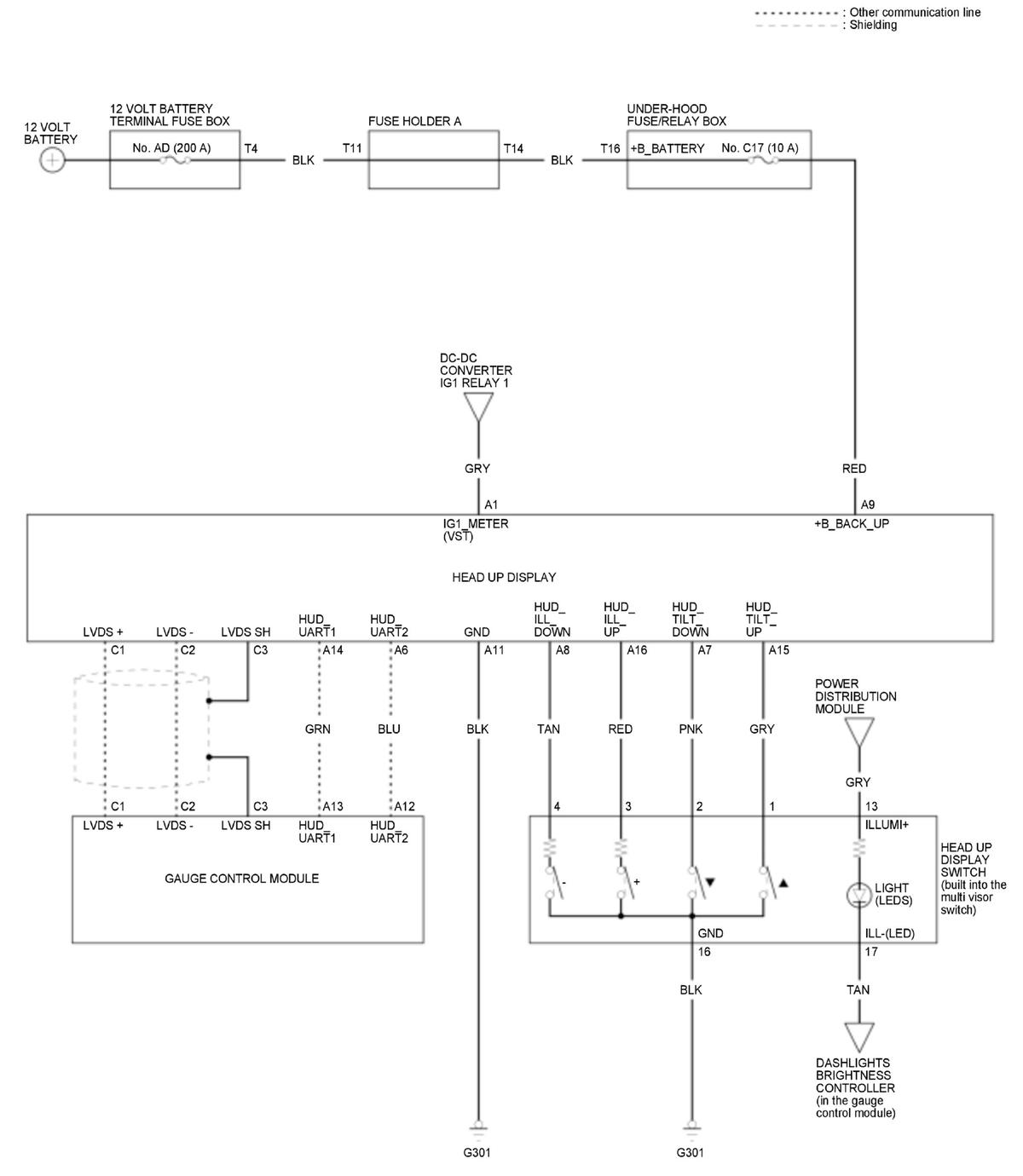

Head Up Display Circuit Diagram
Head Up Display Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
