Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System - Service, Testing And Troubleshooting
>>
Circuit Diagram
>>

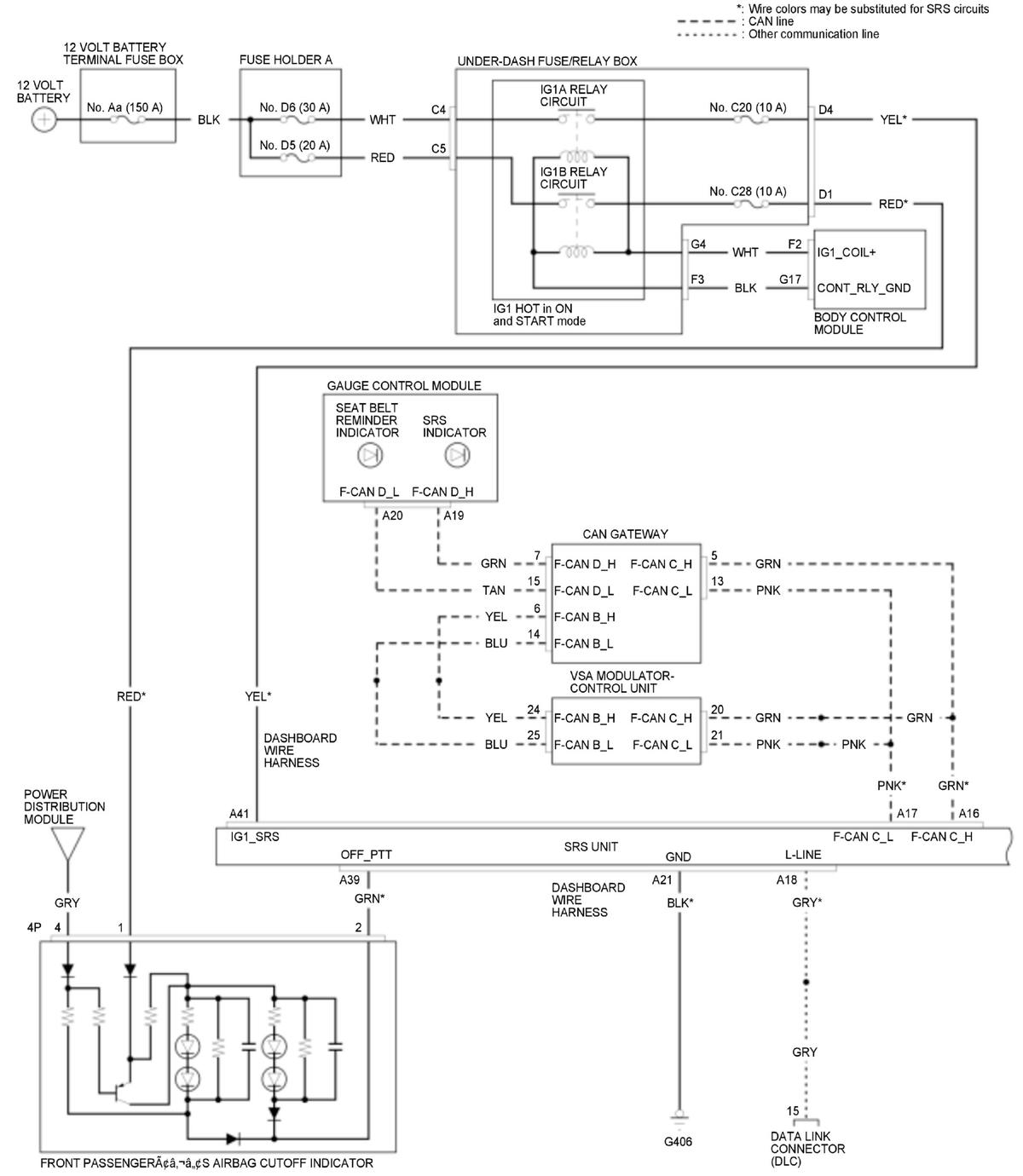

SRS Circuit Diagram (USA models) (2022, 2023)

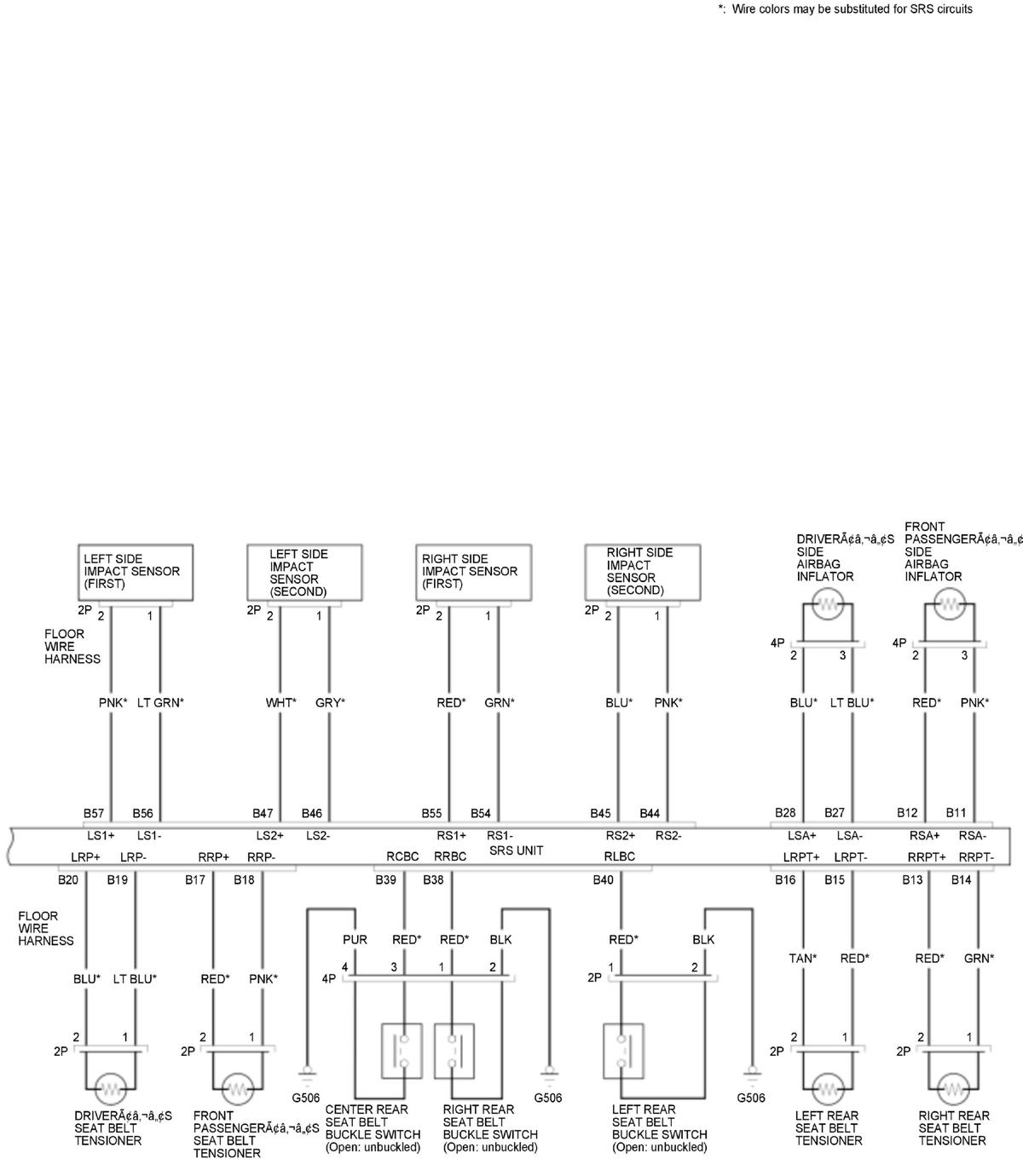

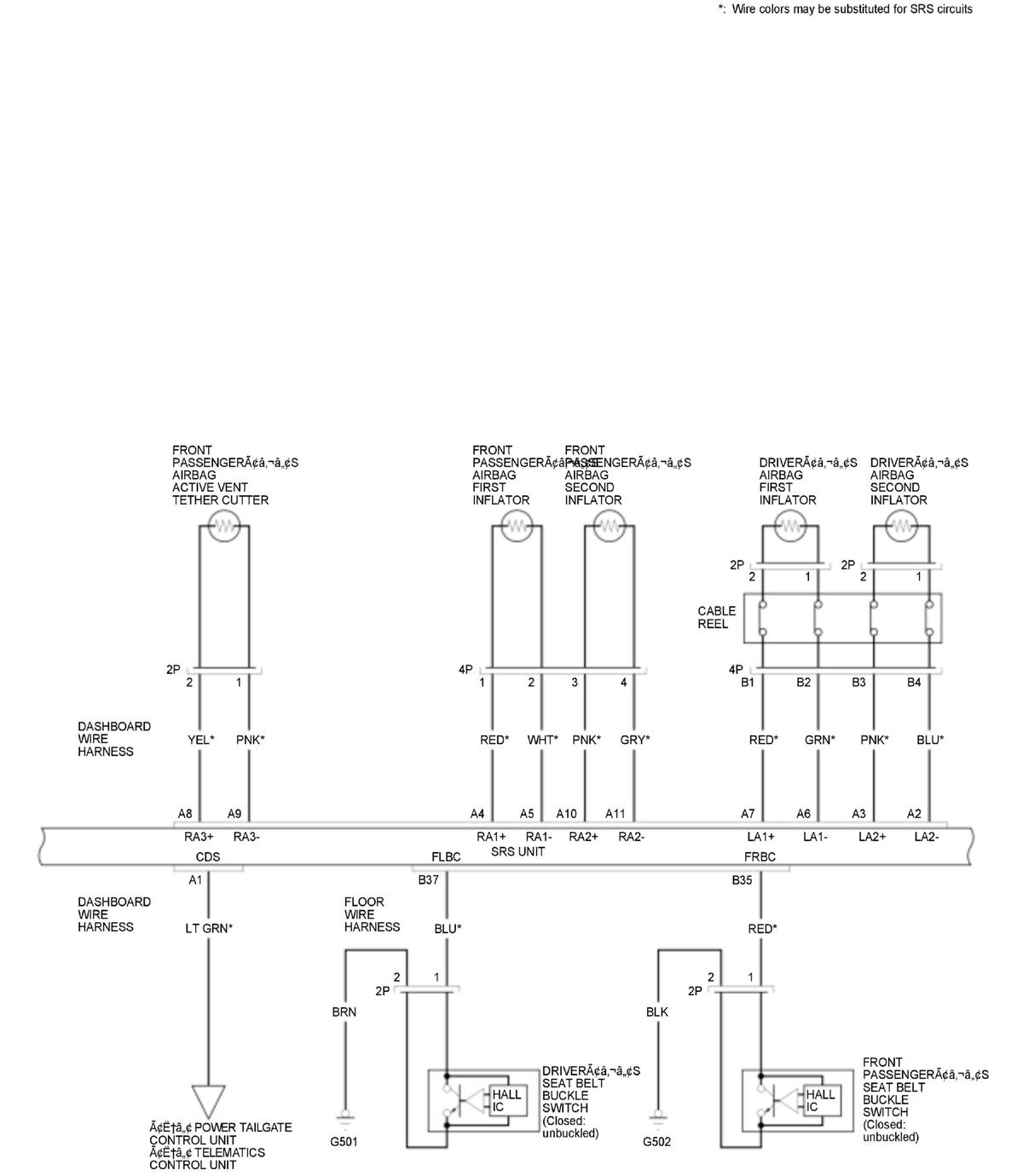

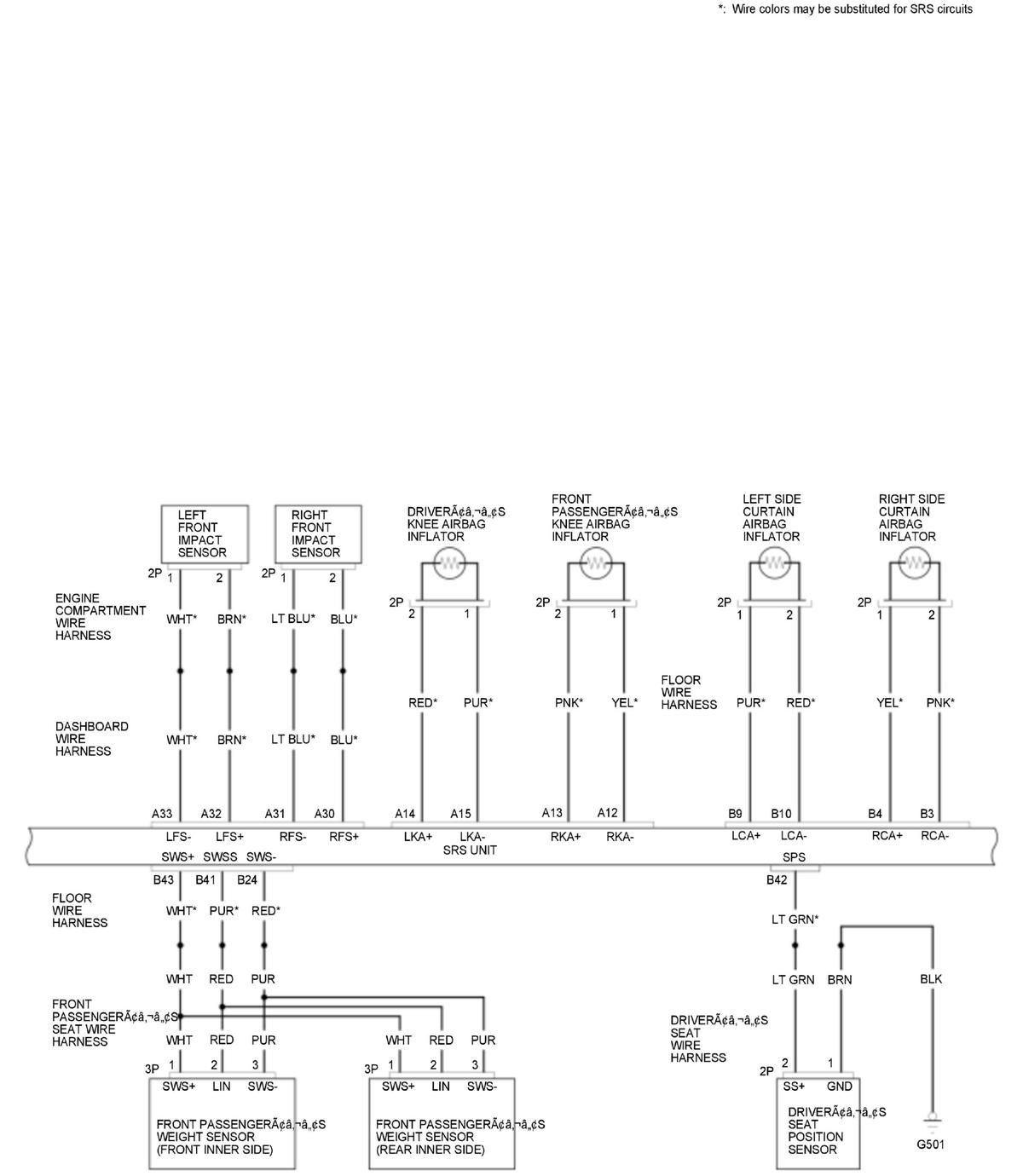

SRS Circuit Diagram (USA models) (2022, 2023)
