Power Supply (RRP+), GND (RRP-) Open Wire Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector B (57P) : disconnected
- Front passenger's seat belt tensioner 2P connector: disconnected

Procedure

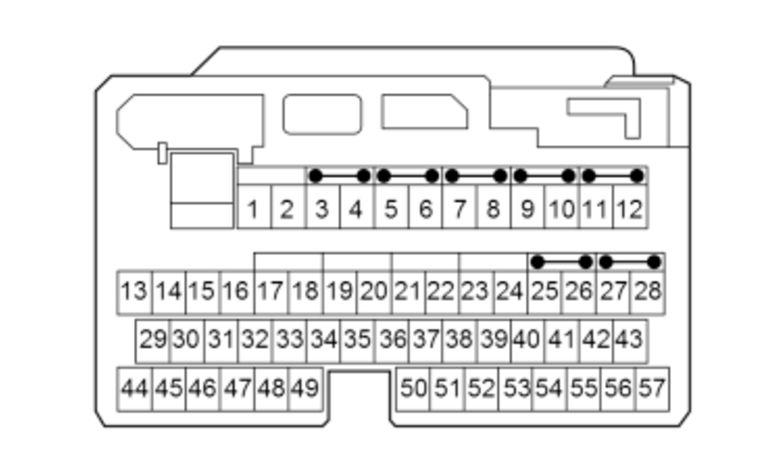

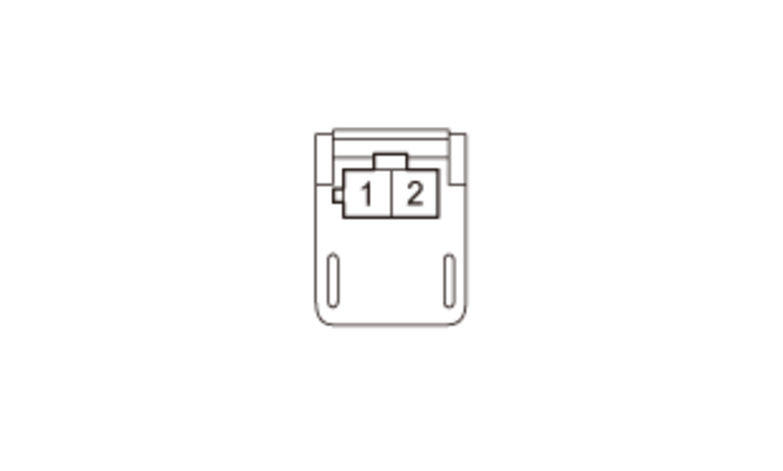

		(Disconnected) SRS unit connector B (57P) female terminals	(Disconnected) Front passenger's seat belt tensioner 2P connector female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
RRP+ open wire inspection	OFF			There is less than 1 Ω
RRP- open wire inspection	OFF			There is less than 1 Ω

Results
