Power Supply (LCA+), GND (LCA-) Shorted Wire Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector B (57P) : disconnected
- Left side curtain airbag inflator 2P connector: disconnected
- SRS unit connector B (57P) No. 9 and No. 10: connected to SRS short canceller

Procedure

Perform the inspection according to the following table.

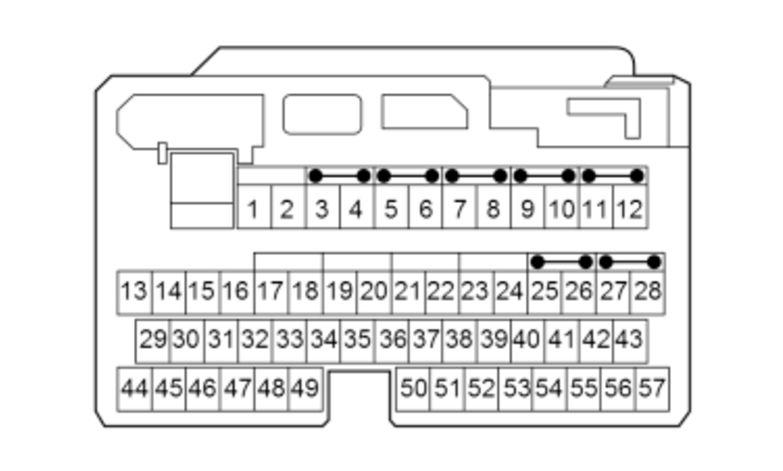

		(Disconnected) SRS unit connector B (57P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
LCA+, LCA- shorted wire to wire inspection	OFF		There is more than 1 MΩ

Results
