Power Supply (LCA+), GND (LCA-) Open Wire Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector B (57P) : disconnected
- Left side curtain airbag inflator 2P connector: disconnected

Procedure

Perform the inspection according to the following table.

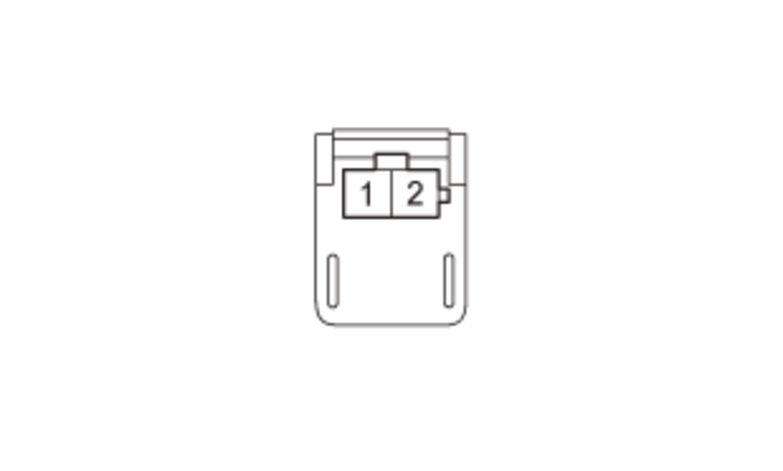

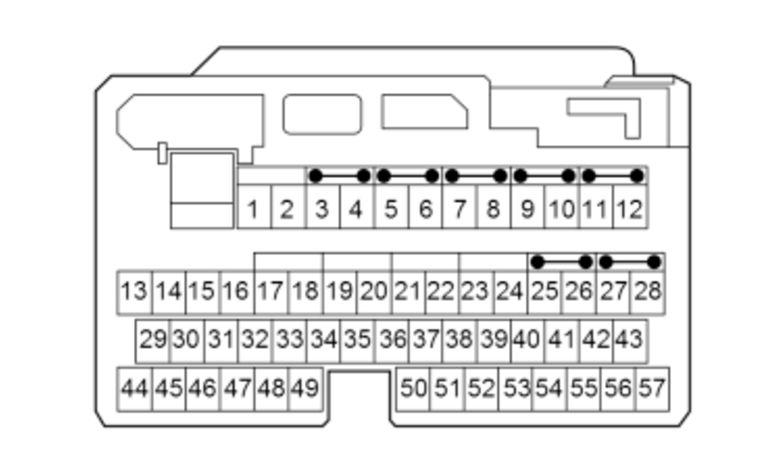

		(Disconnected) SRS unit connector B (57P) female terminals	(Disconnected) Left side curtain airbag inflator 2P connector female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
LCA+ open wire inspection	OFF			There is less than 1 Ω
LCA- open wire inspection	OFF			There is less than 1 Ω

Results
