Power Supply (RA2+), GND (RA2-) Shorted Wire Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector A (43P) : disconnected
- Front passenger's airbag inflator 4P connector: disconnected

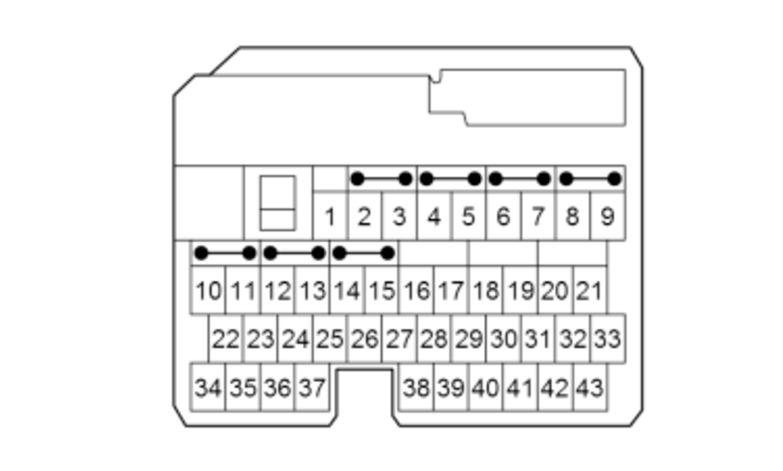

- SRS unit connector A (43P) No. 10 and No. 11: connected to SRS short canceller

Procedure

Perform the inspection according to the following table.


		(Disconnected) SRS unit connector A (43P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
RA2+, RA2- shorted wire to wire inspection	OFF		There is more than 1 MΩ

Results
