Power Supply (LA2+), GND (LA2-) Open Wire Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector A (43P) : disconnected
- Cable reel connector B (4P) : disconnected

Procedure

Perform the inspection according to the following table.

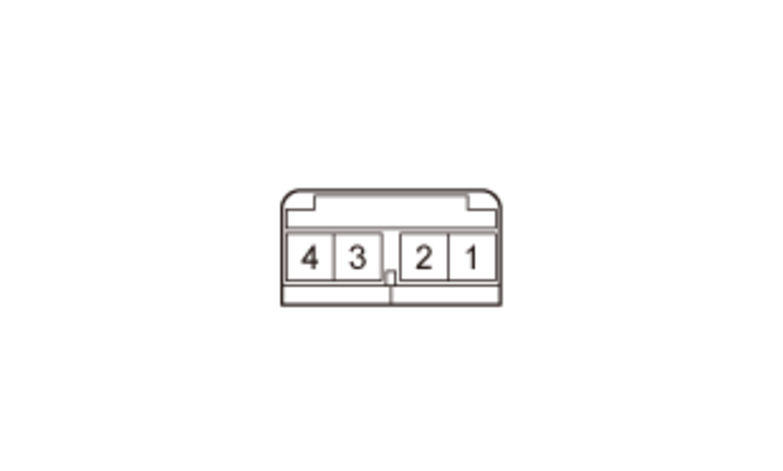

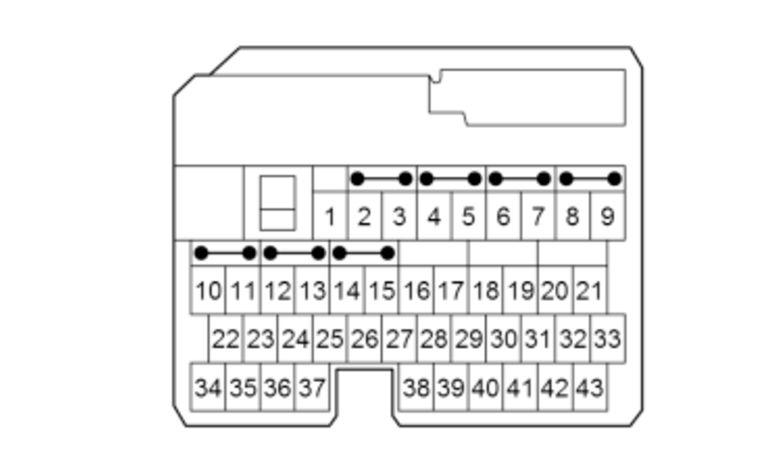

		(Disconnected) SRS unit connector A (43P) female terminals	(Disconnected) Cable reel connector B (4P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
LA2+ open wire inspection	OFF			There is less than 1 Ω
LA2- open wire inspection	OFF			There is less than 1 Ω

Results
