Cable Reel Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- Driver's airbag first inflator 2P connector: disconnected
- Cable reel connector B (4P) : disconnected

Procedure

Perform the inspection according to the following table.

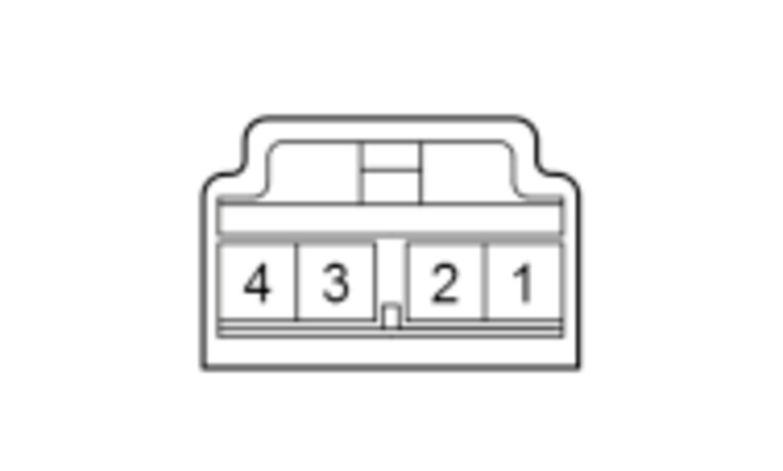

		(Disconnected) Cable reel connector B (4P) male terminals	(Disconnected) Driver's airbag first inflator 2P connector female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
LA1+ open wire inspection	OFF			There is less than 1 Ω
LA1- open wire inspection	OFF			There is less than 1 Ω
