Power Tailgate Component Location Index

• For the Keyless Access System, refer to Keyless Access System, Component Location Index .
• For relationships between signals in a system, refer to System Diagram - Go to: Power Tailgate System Description - System Diagram .

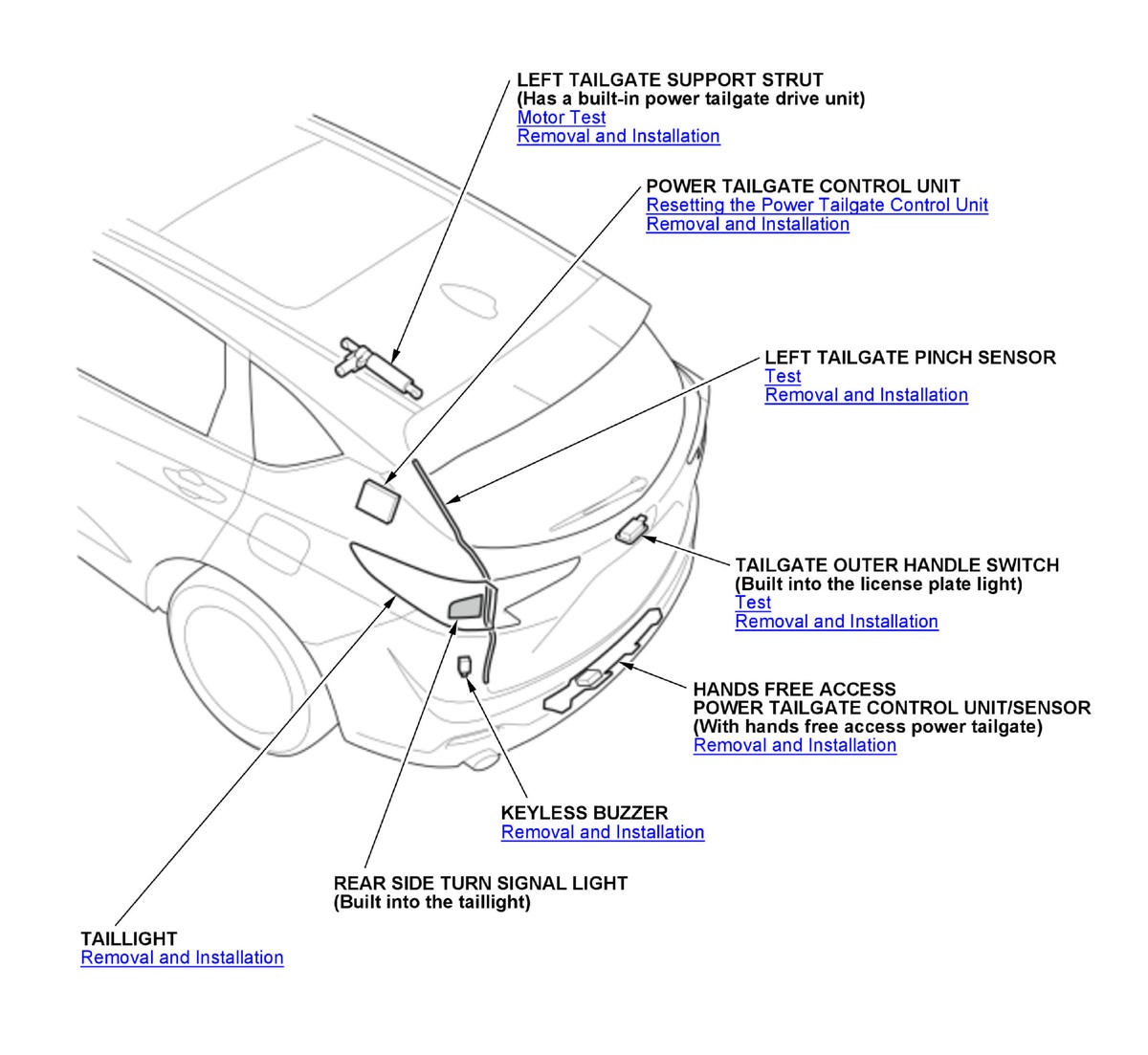

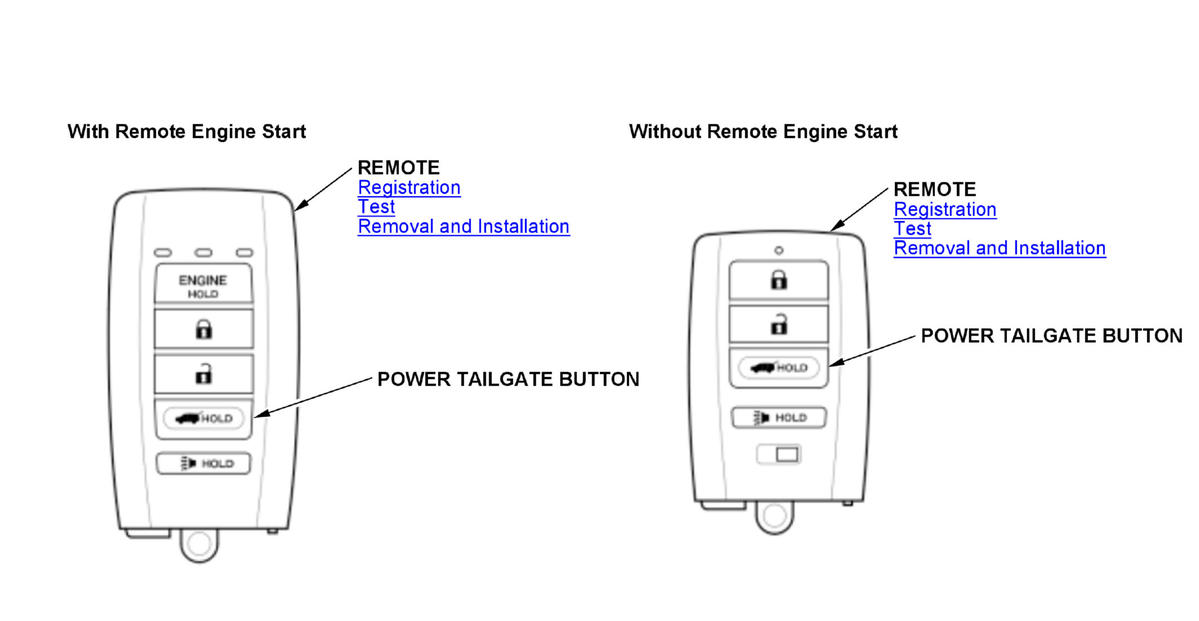

'19-21

Courtesy of HONDA, U.S.A., INC.

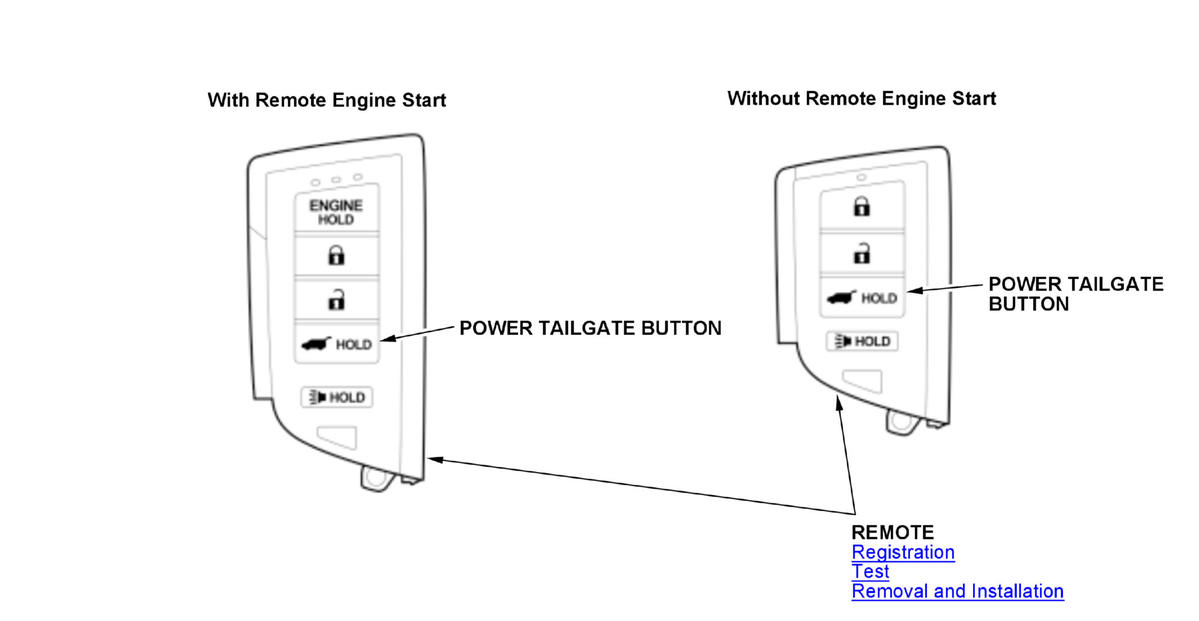

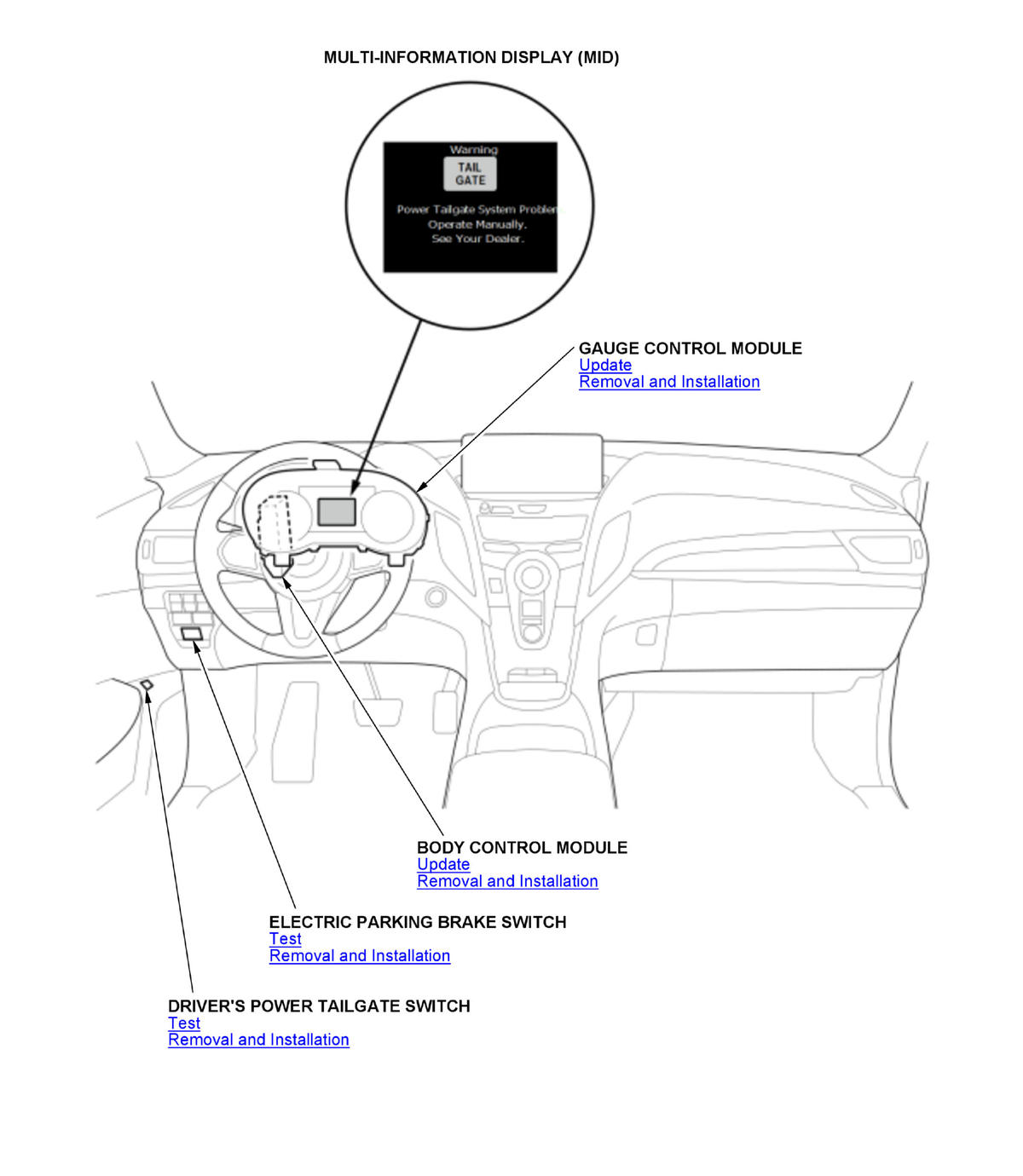

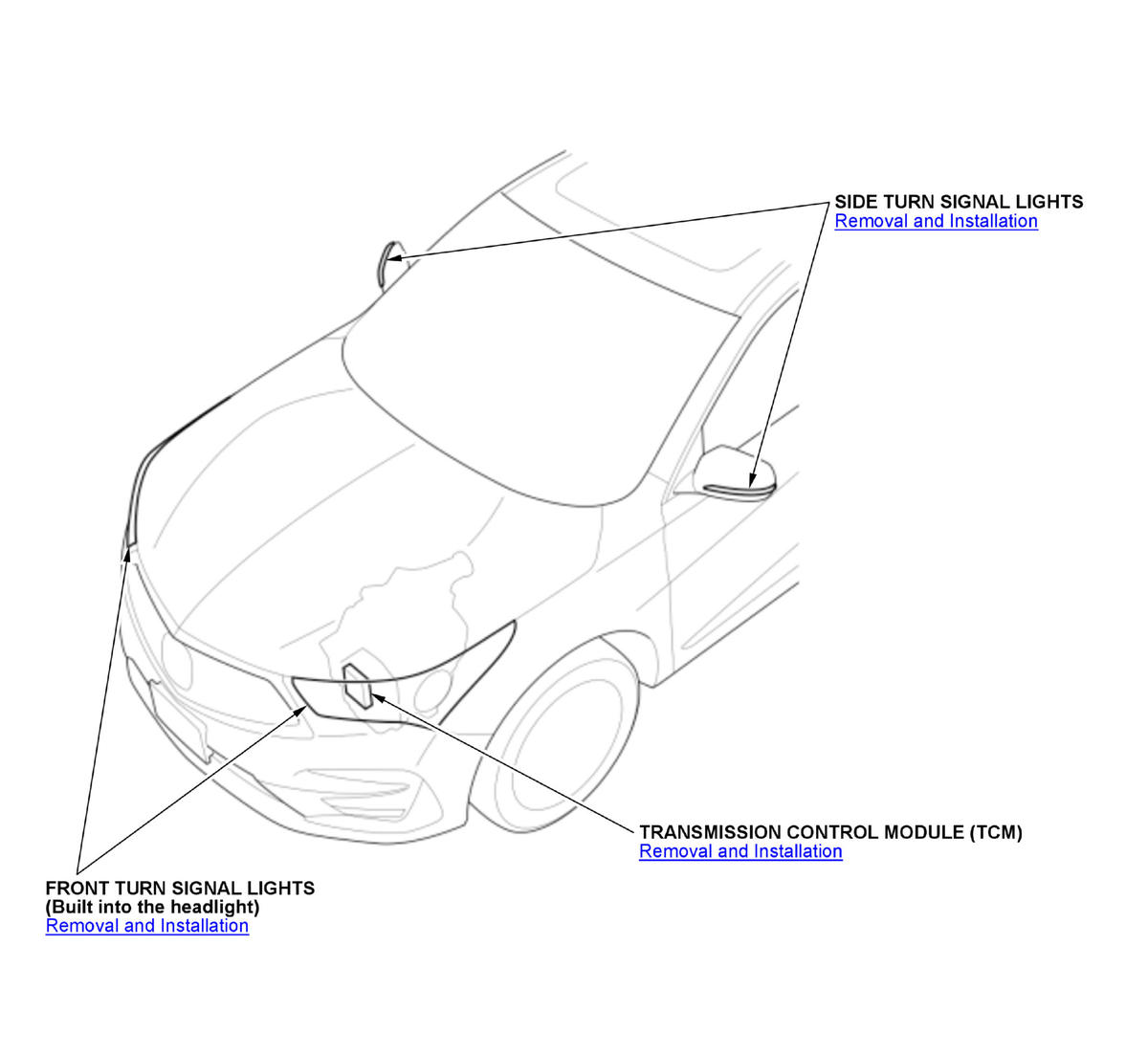

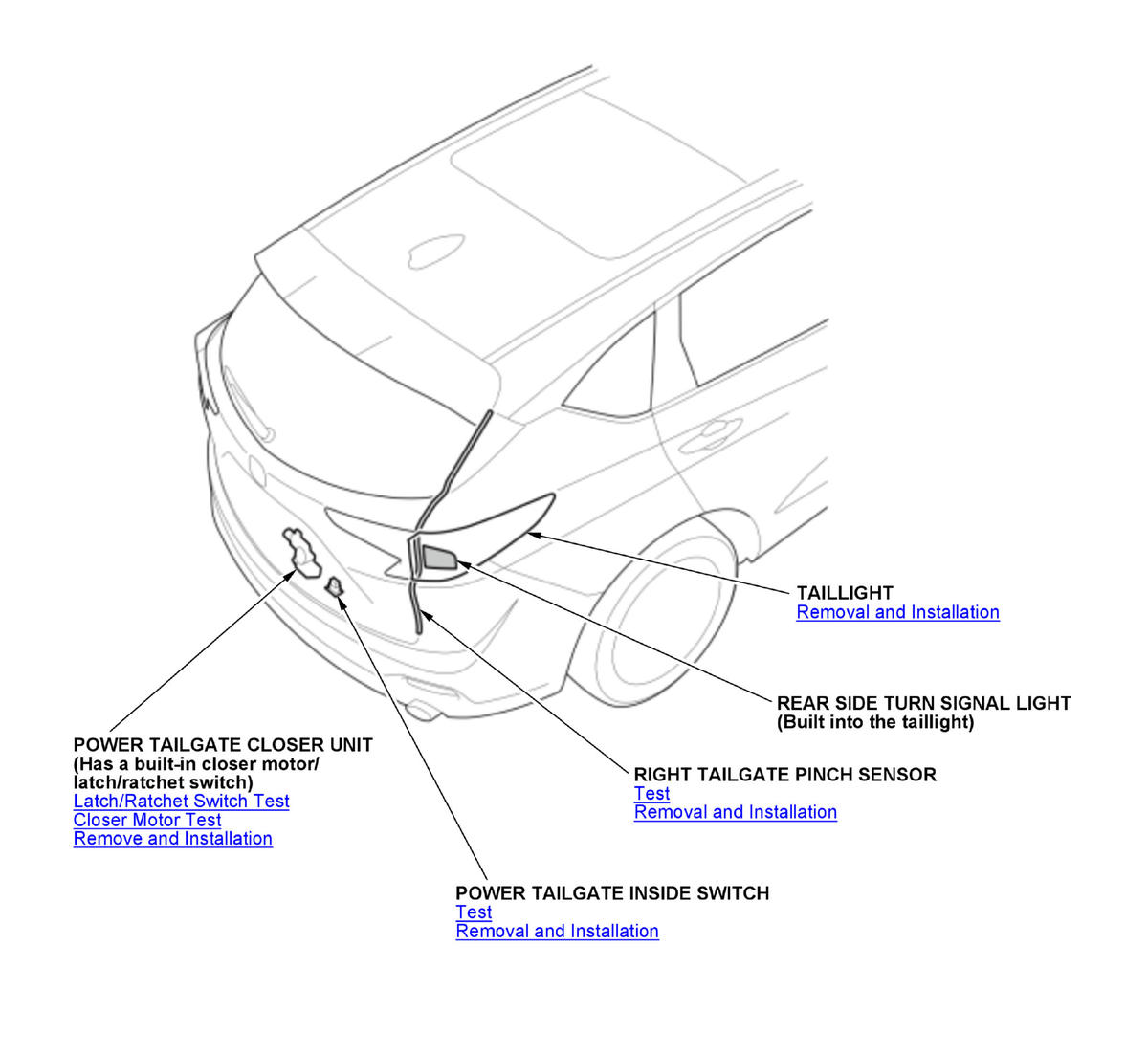

'22-23

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
