RDX PMC Edition
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System - Service, Testing And Troubleshooting
>>
Circuit Diagram
>>

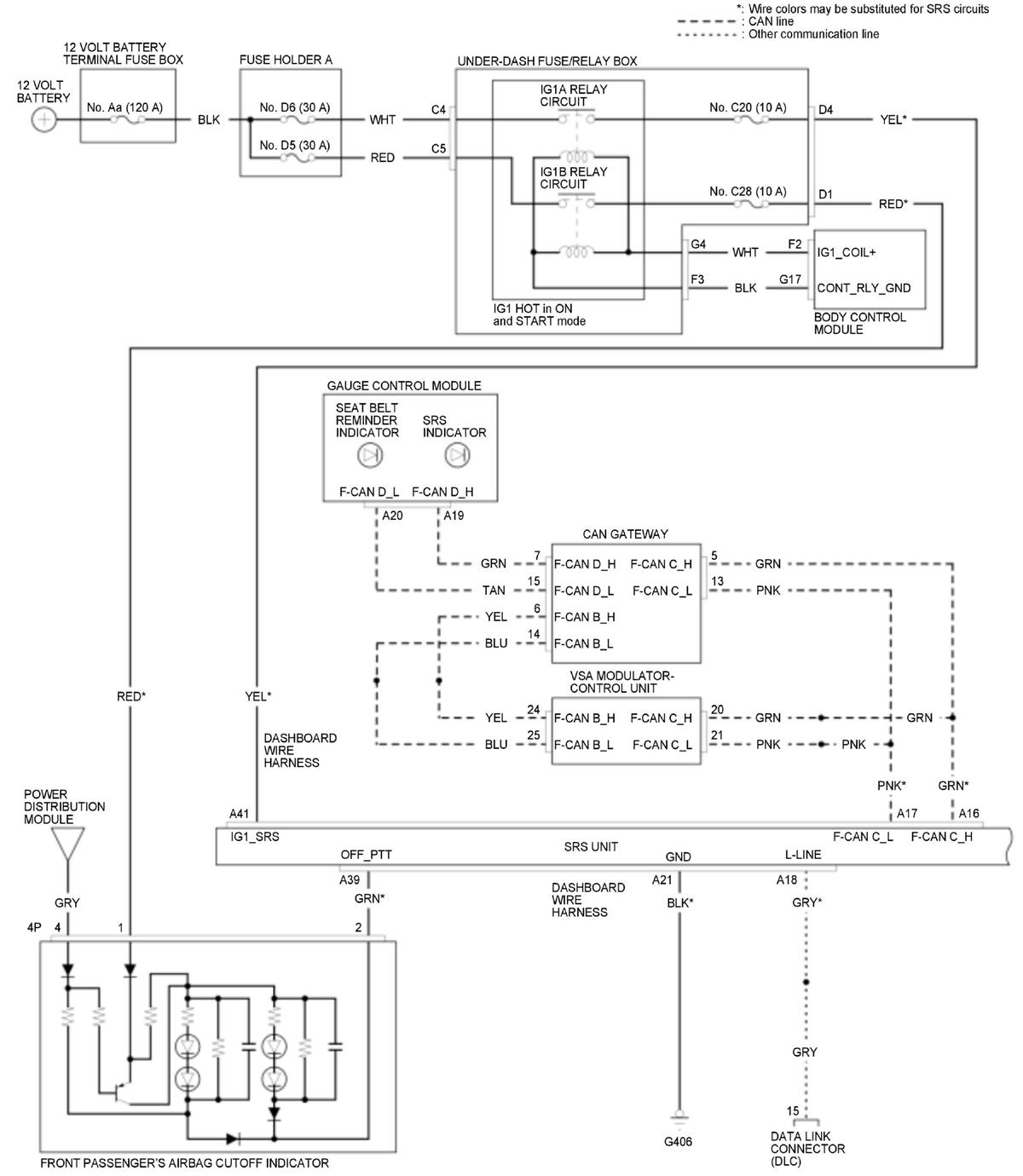

SRS Circuit Diagram (USA models) (2019, 2020, 2021)

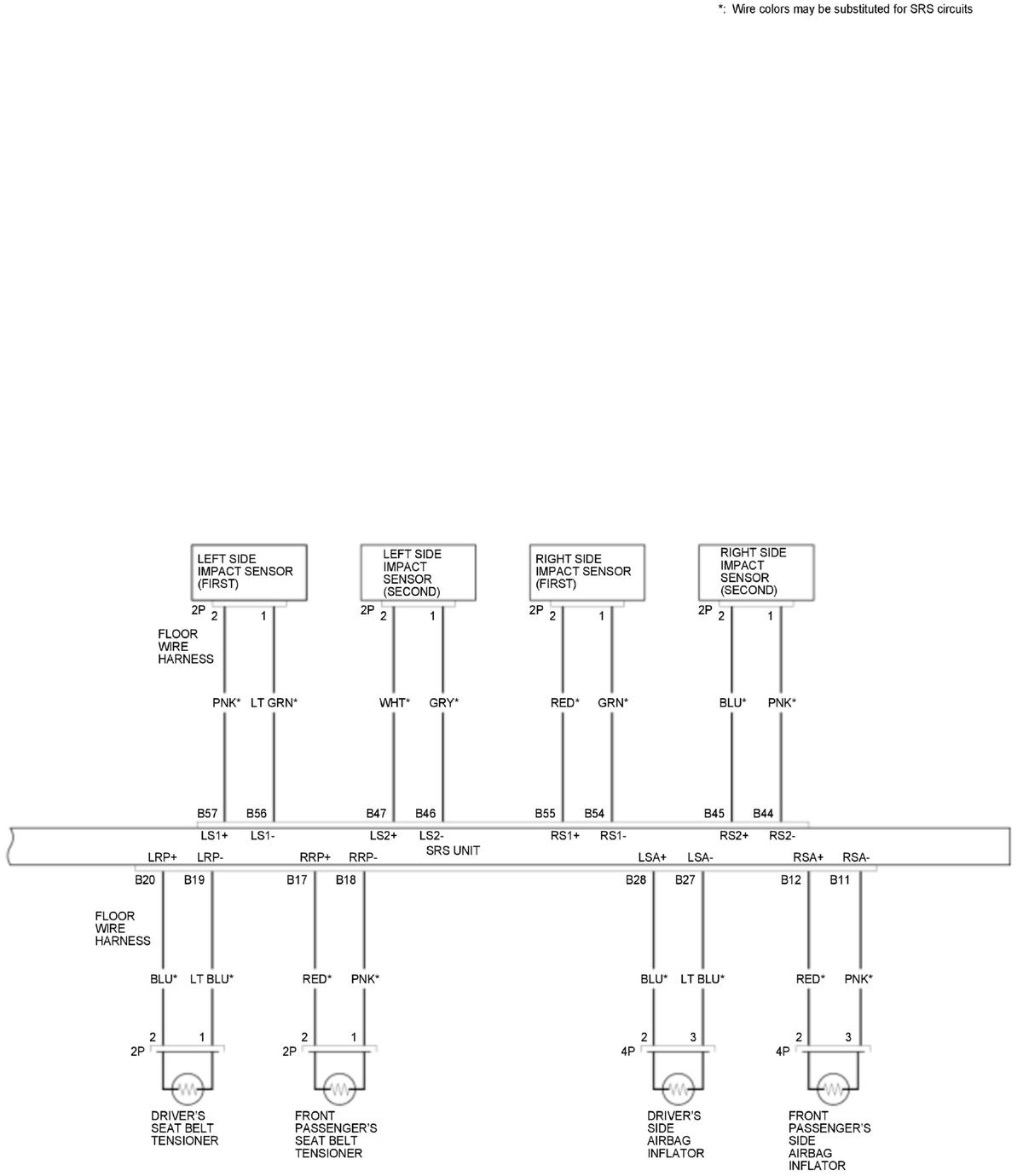

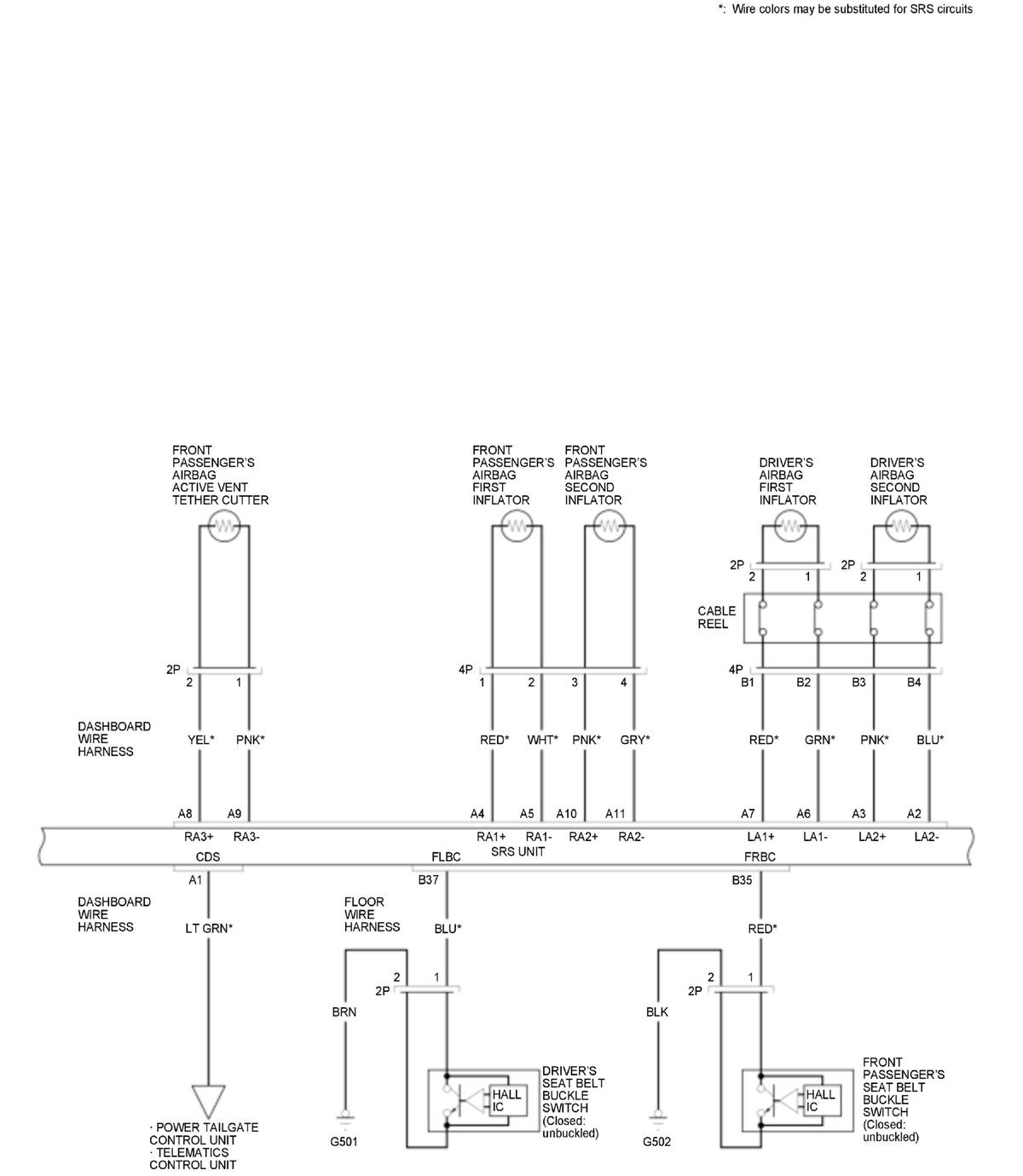

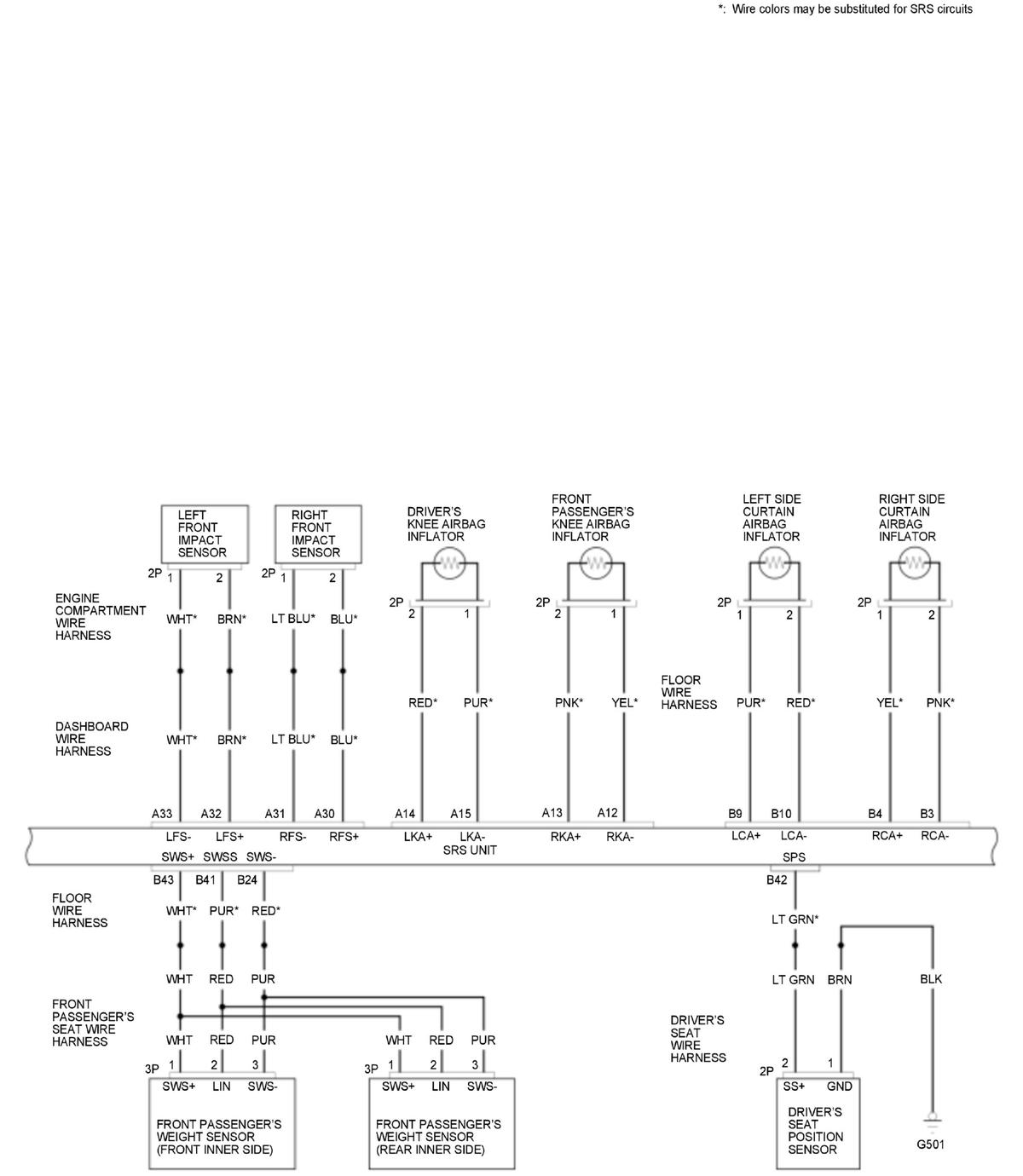

SRS Circuit Diagram (USA models) (2019, 2020, 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
