Power Supply (SWS+), Signal (SWSS [ LIN ]), GND (SWS-) Circuit Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector B (57P) : disconnected
- Front passenger's weight sensor (front inner side) 3P connector: disconnected
- Front passenger's weight sensor (rear inner side) 3P connector: disconnected

Procedure

Perform the inspection according to the following table.

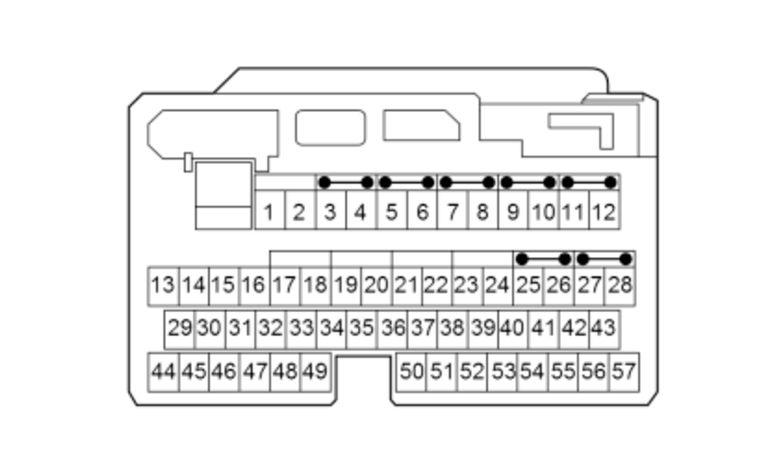

			(Disconnected) SRS unit connector B (57P) female terminals	(Disconnected) Front passenger's weight sensor (rear inner side) 3P connector female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	SWSS [ LIN ], SWS- shorted wire to wire inspection	OFF			There is more than 1 MΩ
	SWSS [ LIN ], SWS+ shorted wire to wire inspection	OFF			There is more than 1 MΩ
	SWS+ open wire inspection	OFF			There is less than 1 Ω
	SWS- open wire inspection	OFF			There is less than 1 Ω
	SWSS [ LIN ] open wire inspection	OFF			There is less than 1 Ω
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	SWSS [ LIN ] shorted to ground inspection	OFF			Not shorted or at least 1 MΩ
	SWSS [ LIN ] shorted to power inspection	ON			Not shorted or 0.2 V or less

Results

If abnormal, there is a problem in the circuit.
