Power Supply (RS1+), GND (RS1-) Circuit Inspection

Test Procedure

• Preparation

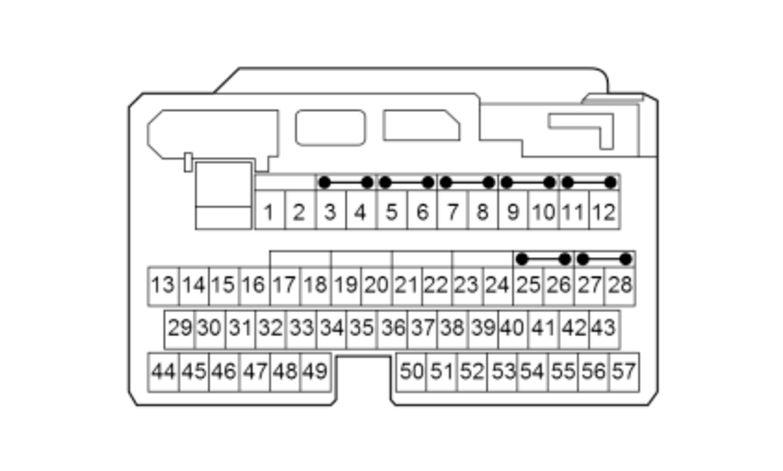

  • SRS unit connector B (57P) : disconnected

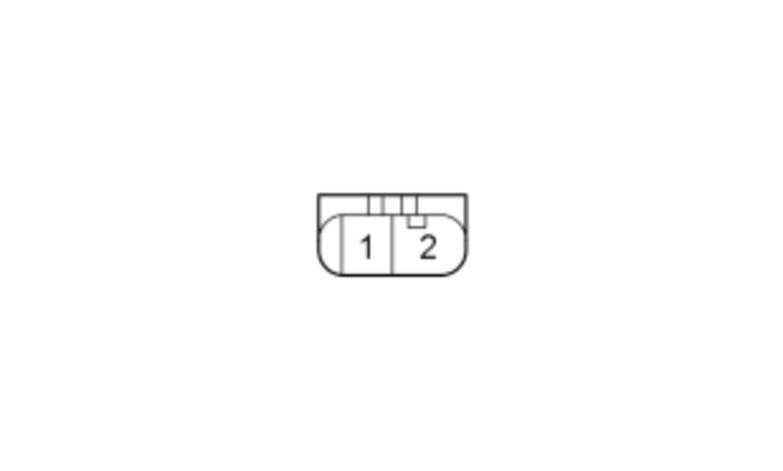

  • Right side impact sensor (first) 2P connector: disconnected
• Procedure
  • Perform the inspection according to the following table.

    			(Disconnected) SRS unit connector B (57P) female terminals	(Disconnected) Right side impact sensor (first) 2P connector female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	RS1+, RS1- shorted wire to wire inspection	OFF			There is more than 1 MΩ
    	RS1+ open wire inspection	OFF			There is less than 1 Ω
    	RS1- open wire inspection	OFF			There is less than 1 Ω
    	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
    	RS1+ shorted to ground inspection	OFF			Not shorted or at least 1 MΩ
    	RS1- shorted to ground inspection	OFF			Not shorted or at least 1 MΩ
    	RS1+ shorted to power inspection	ON			Not shorted or 0.2 V or less
    	RS1- shorted to power inspection	ON			Not shorted or 0.2 V or less

Results

• If abnormal, there is a problem in the circuit.
