Signal (FRBC), GND (GND) Open Wire Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector B (57P) : disconnected
- Front passenger's seat belt buckle switch 2P connector: disconnected

Procedure

Perform the inspection according to the following table.

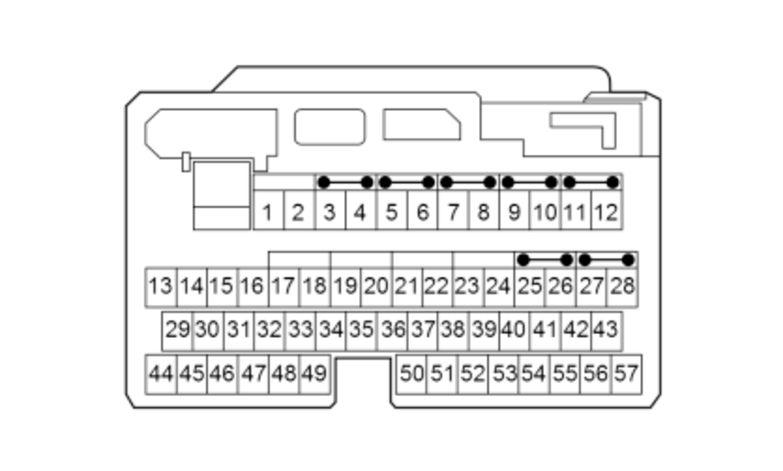

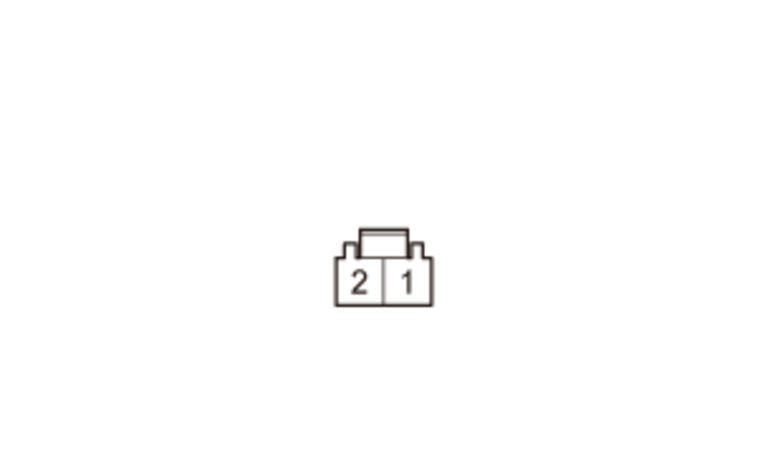

		(Disconnected) SRS unit connector B (57P) female terminals	(Disconnected) Front passenger's seat belt buckle switch 2P connector female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
FRBC open wire inspection	OFF			There is less than 1 Ω
GND open wire inspection	OFF			There is less than 1 Ω

Results
