Power Supply (RSA+), GND (RSA-) Shorted Wire Inspection

NOTE: Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

Test Procedure

Preparation
- SRS unit connector B (57P) : disconnected
- Front passenger's side airbag inflator 4P connector: disconnected
- SRS unit connector B (57P) No. 11 and No. 12: connected to SRS short canceller

Procedure

Perform the inspection according to the following table.

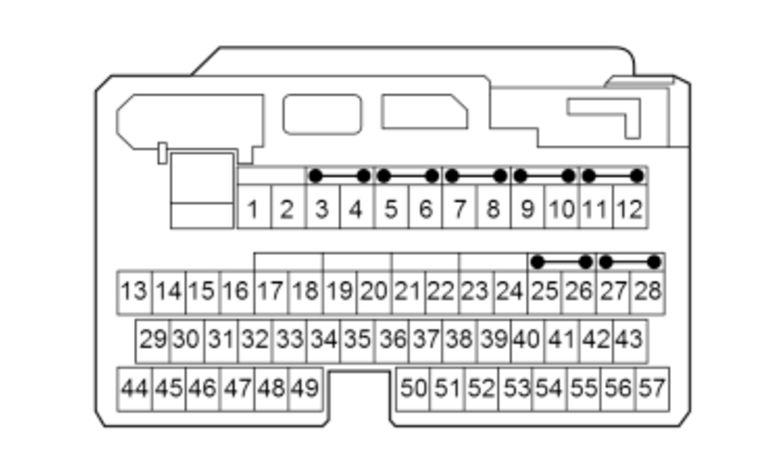

		(Disconnected) SRS unit connector B (57P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
RSA+, RSA- shorted wire to wire inspection	OFF		There is more than 1 MΩ

Results
