Exploded View
For replacement of components listed below, see Repair Procedure .

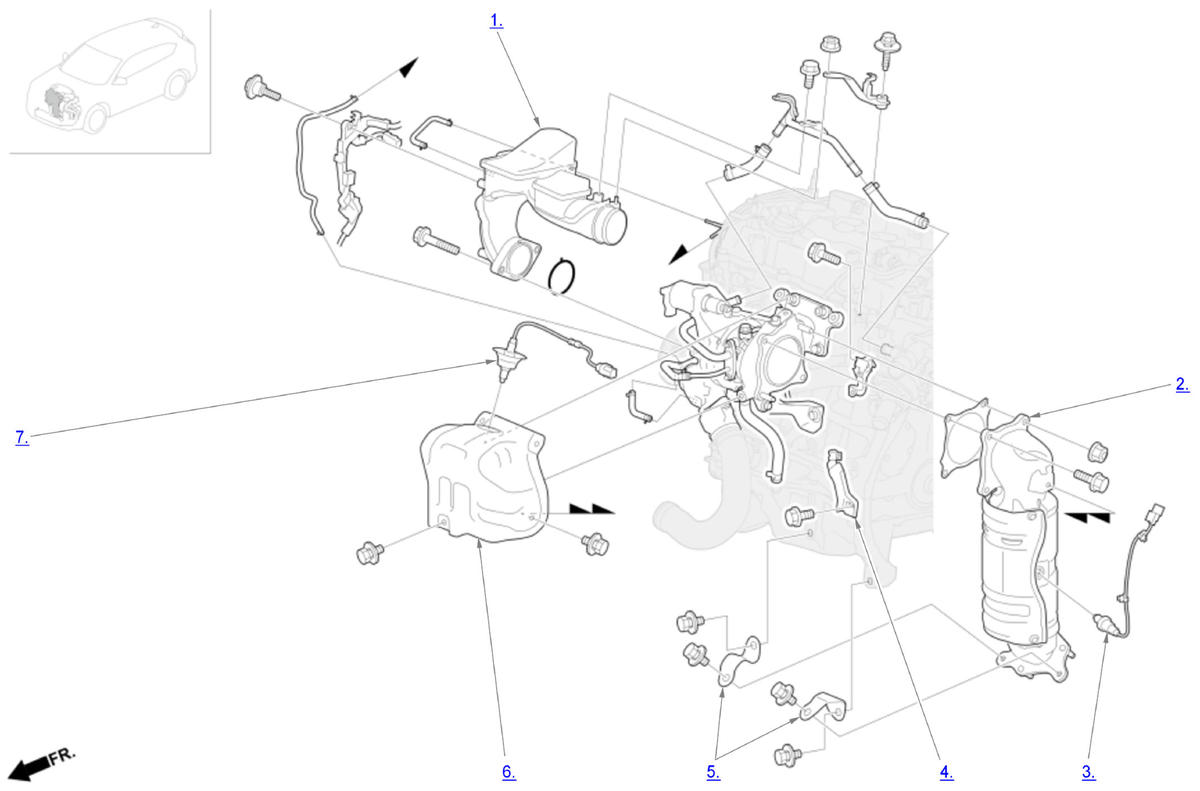

Catalytic Converter/Turbocharger Area Components
| Component Name | Callout |
|---|---|
| Turbocharger Inlet Joint Pipe | 1 |
| Three Way Catalytic Converter (TWC) | 2 |
| Secondary Heated Oxygen Sensor (Secondary HO2S) (Sensor 2) | 3 |
| Sensor Harness Bracket | 4 |
| TWC Bracket | 5 |
| Exhaust Chamber Cover | 6 |
| Air Fuel Ratio (A/F) Sensor (Sensor 1) | 7 |

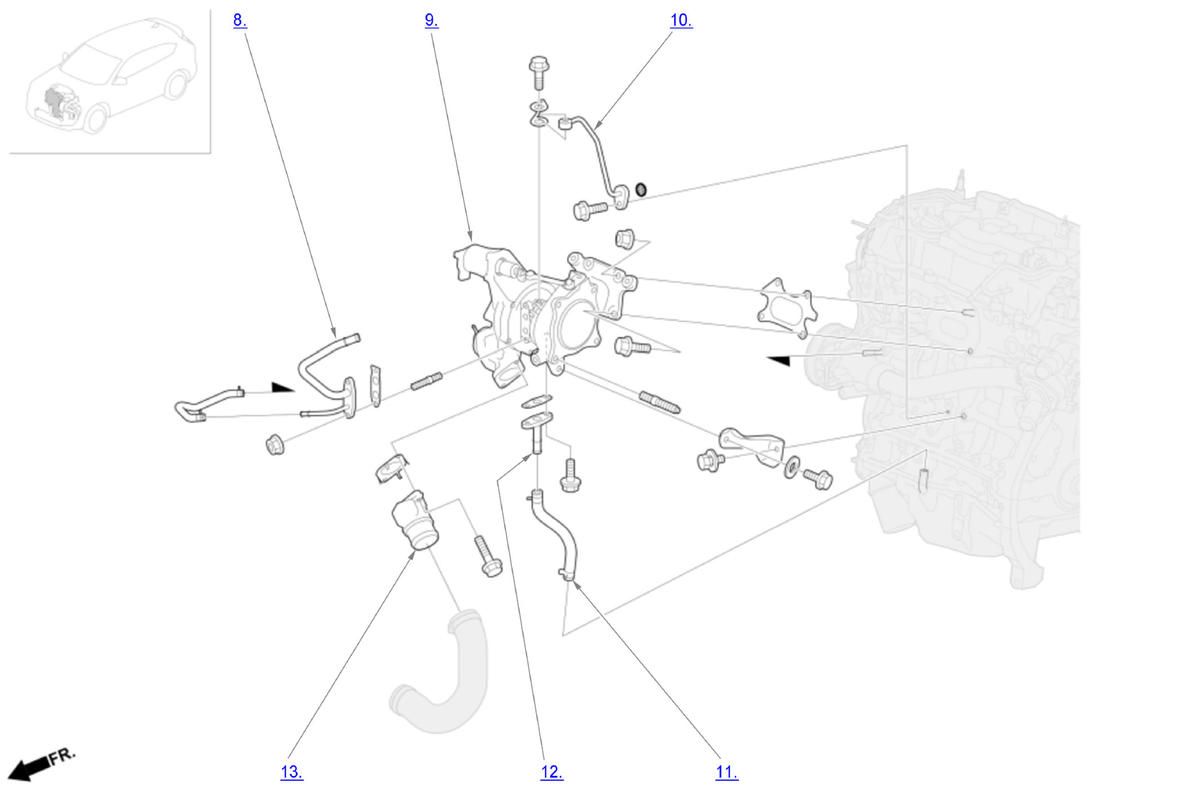

| Water Pipe | 8 |
| Turbocharger | 9 |
| Oil Feed Pipe | 10 |
| Oil Return Hose | 11 |
| Oil Return Pipe | 12 |
| Turbocharger Outlet Pipe | 13 |

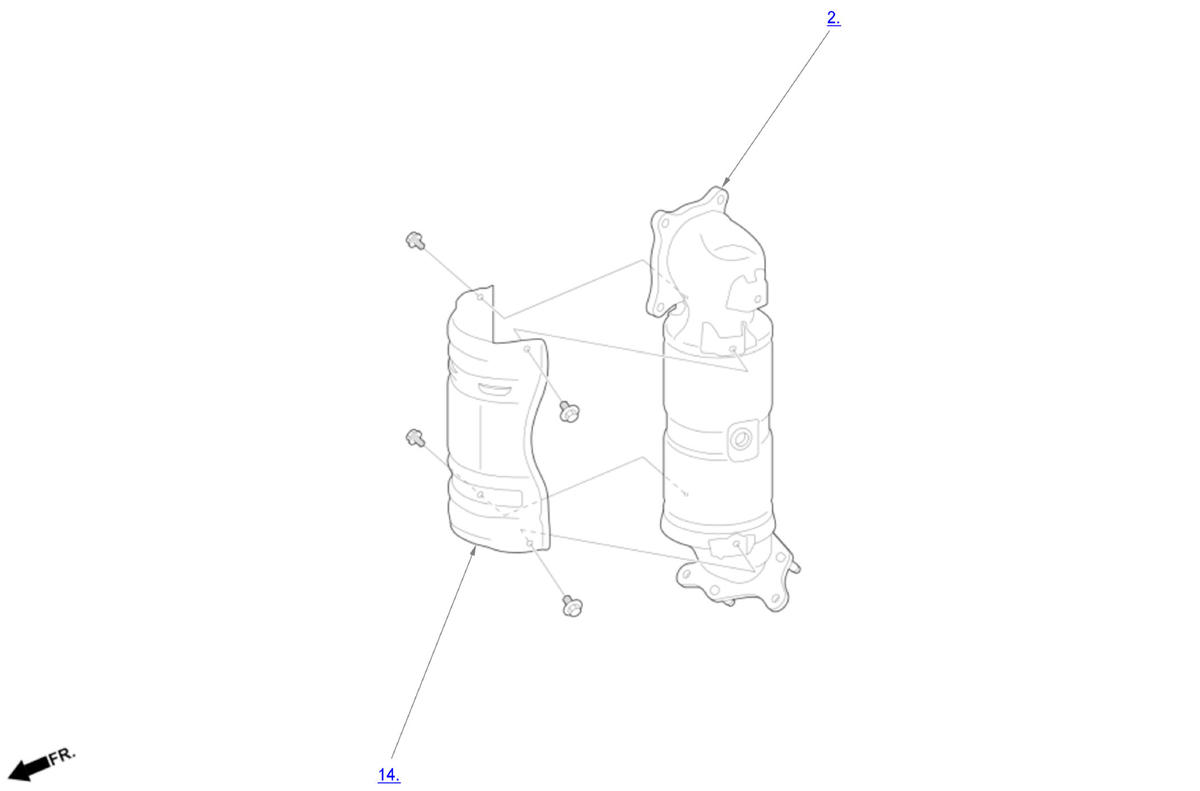

| Three Way Catalytic Converter (TWC) Cover | 14 |
