12 Volt Battery Management System Component Location Index

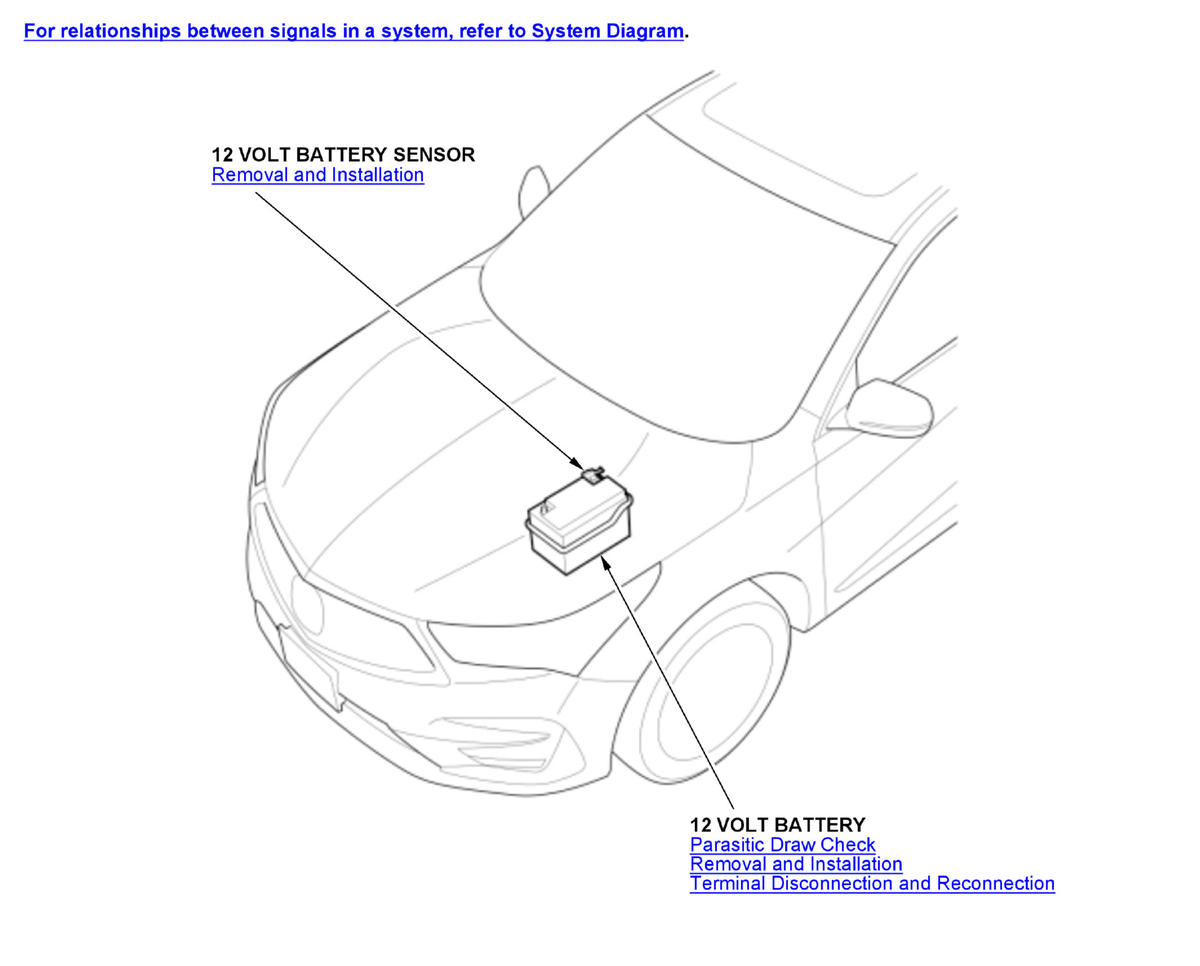

GHH330813

Courtesy of HONDA, U.S.A., INC.

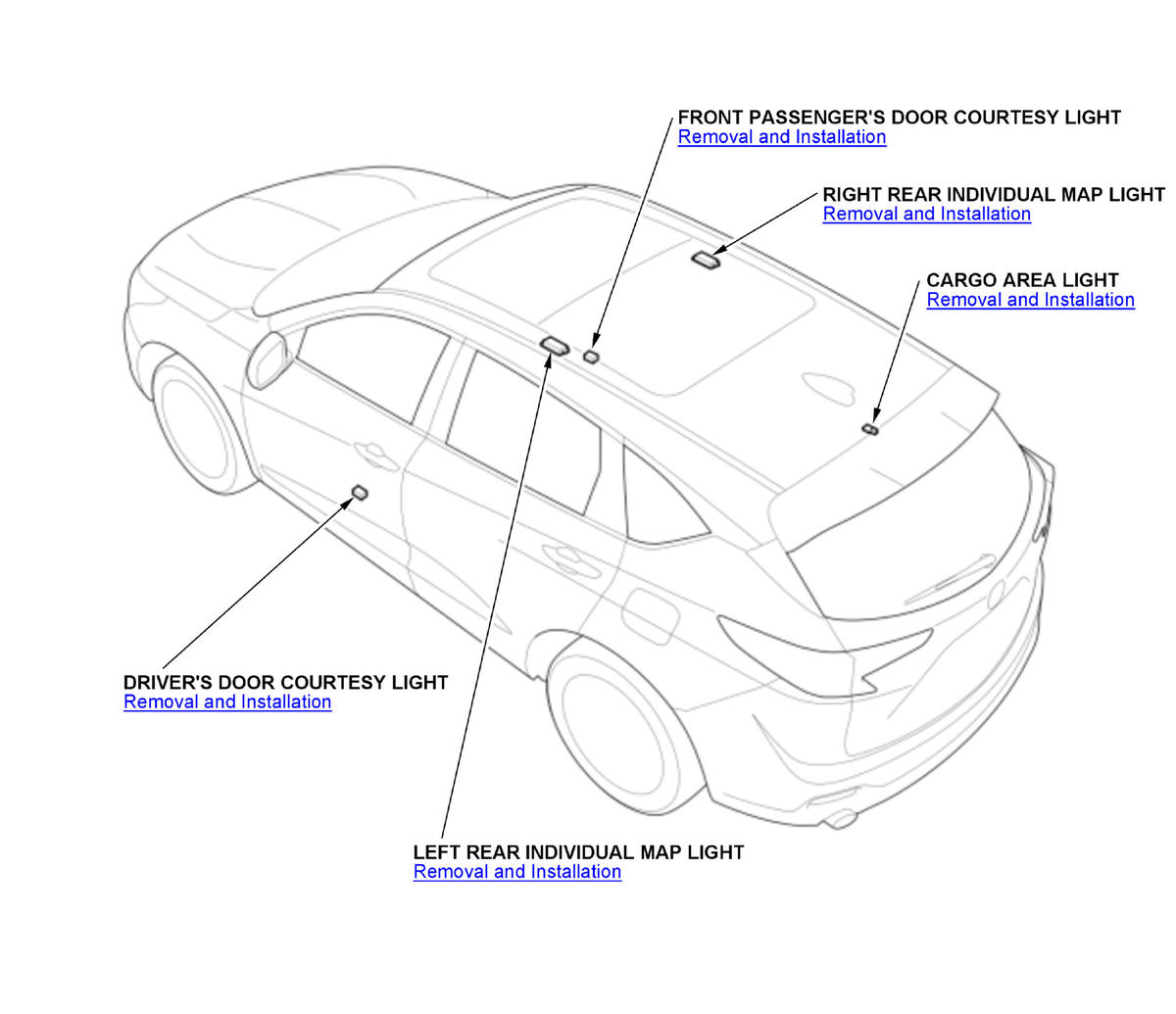

GHH330814

Courtesy of HONDA, U.S.A., INC.

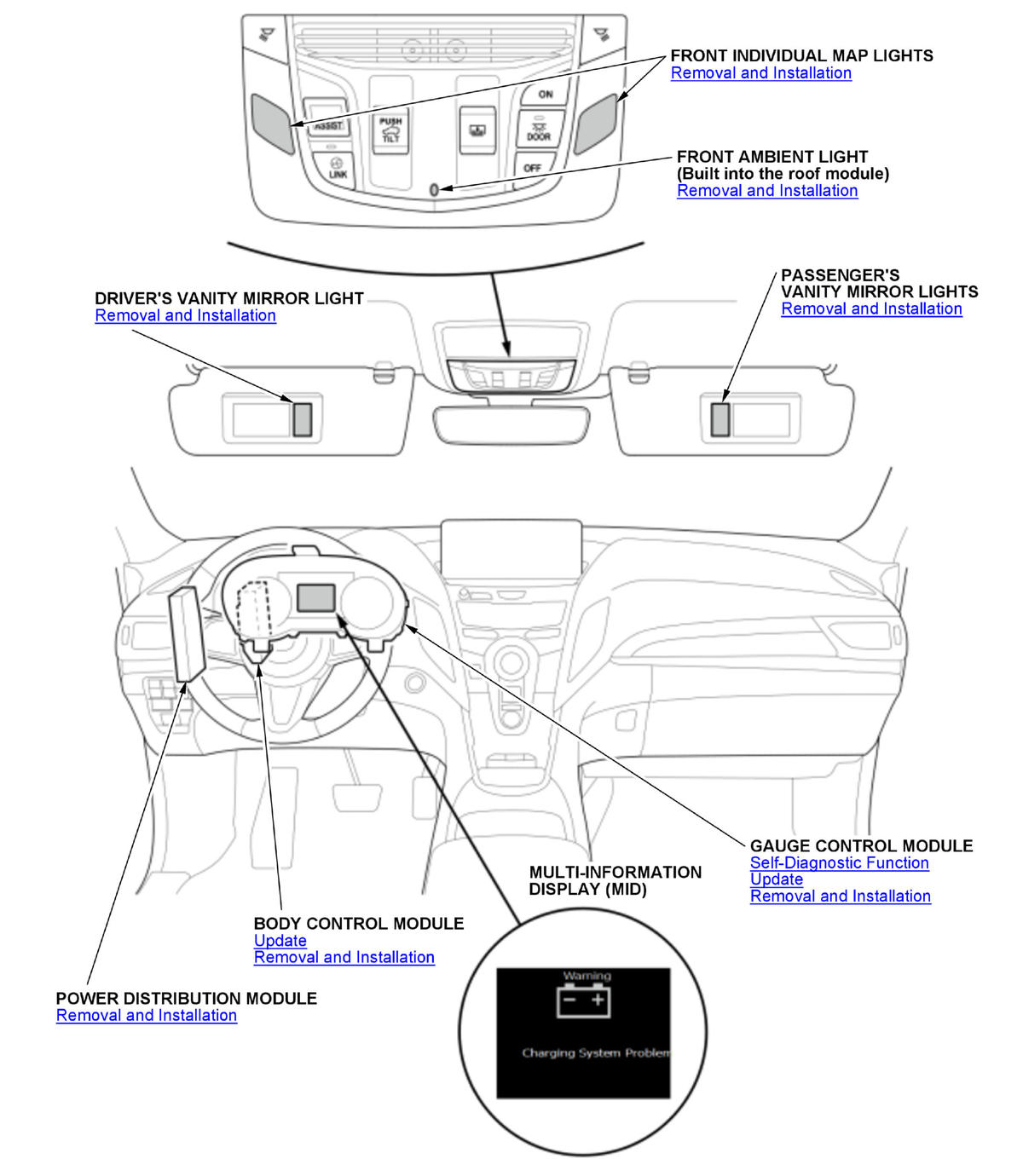

GHH330815

Courtesy of HONDA, U.S.A., INC.
