Home >> Acura >> 2021 >> RDX PMC Edition >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio Visual Systems - Diagnostics & Testing >> Component Location Index >> Audio and Visual System Component Location Index (2022 2023)

Audio and Visual System Component Location Index (2022 2023)

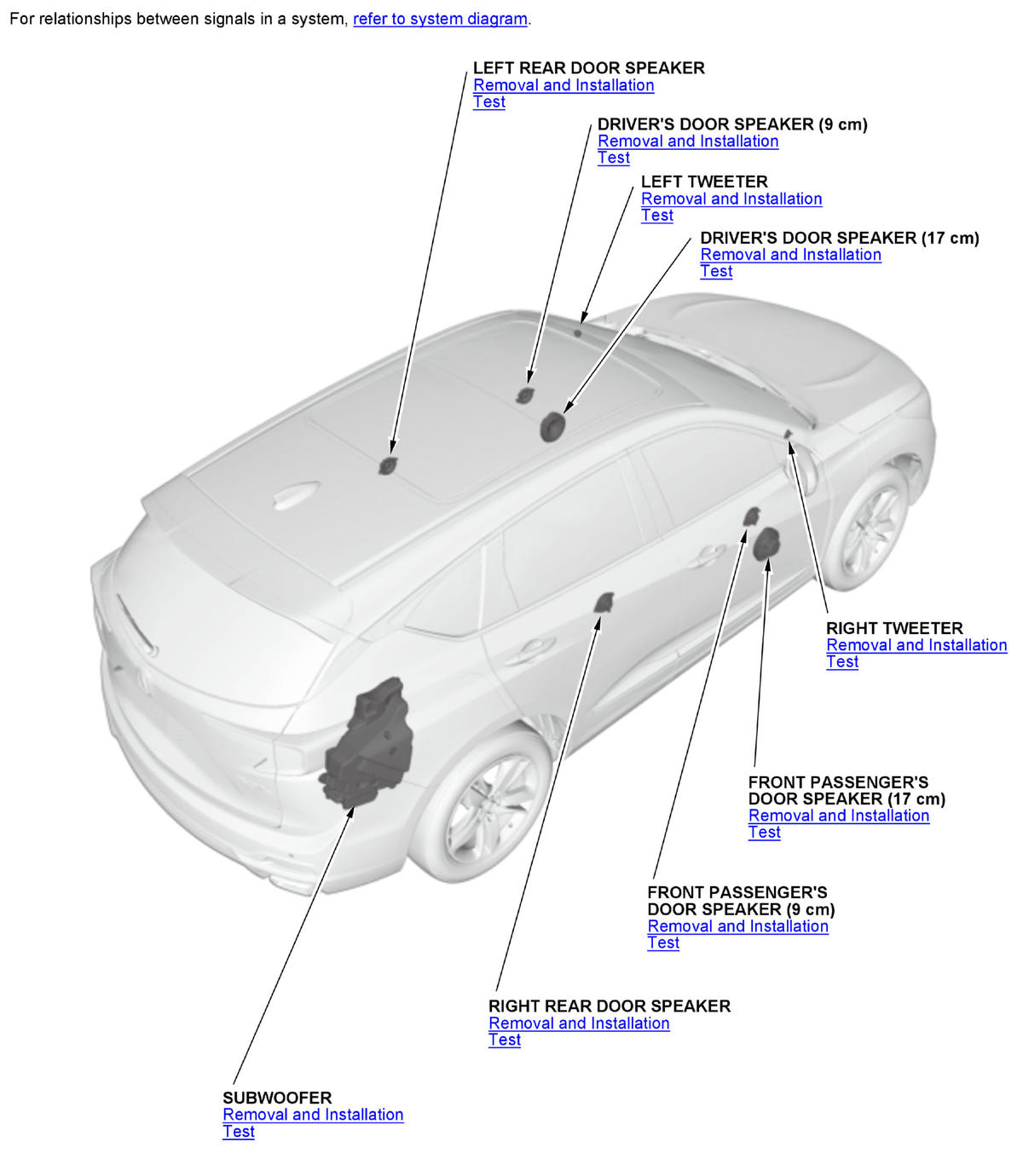

GHH554092Courtesy of HONDA, U.S.A., INC.

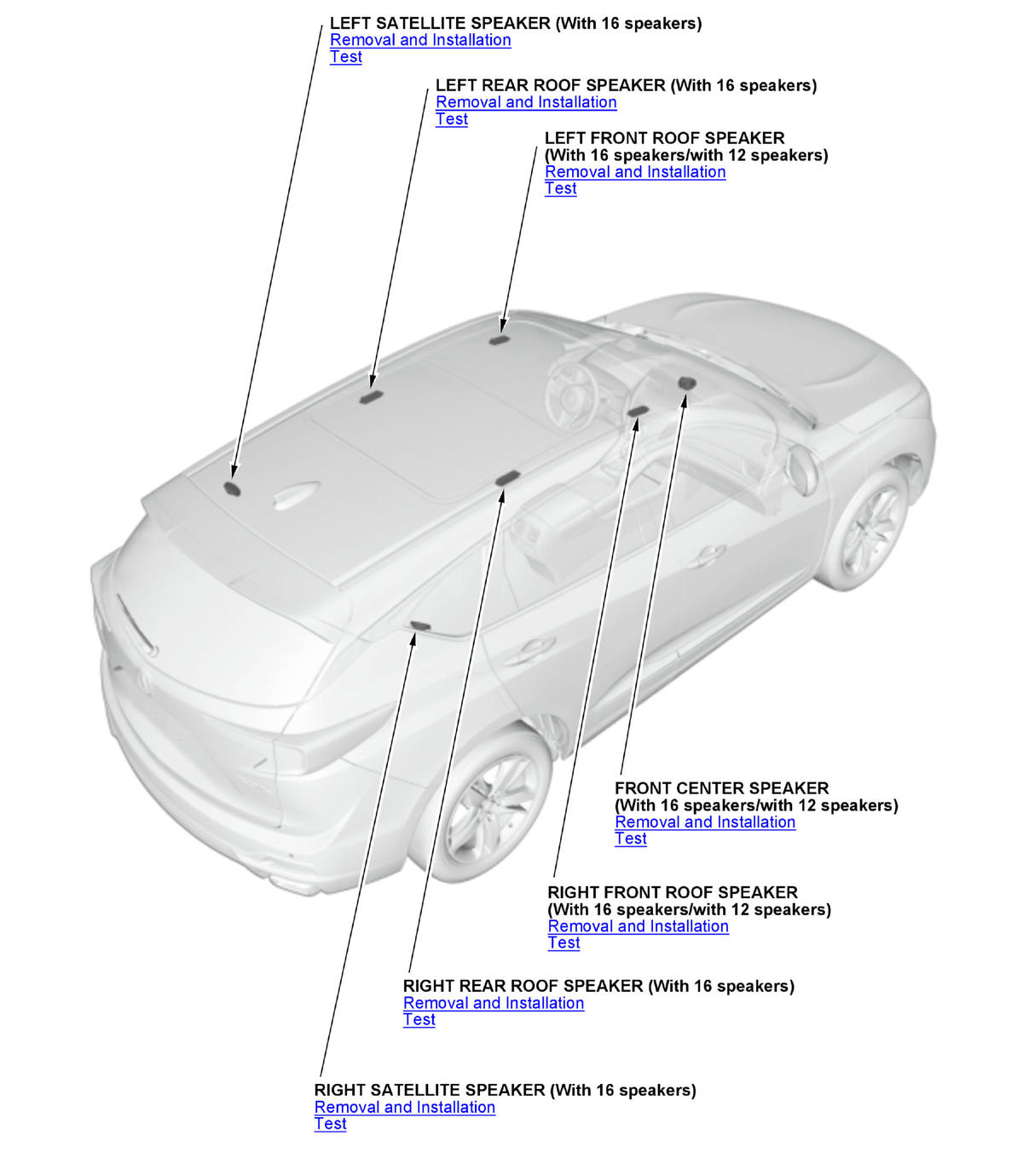

GHH554093Courtesy of HONDA, U.S.A., INC.

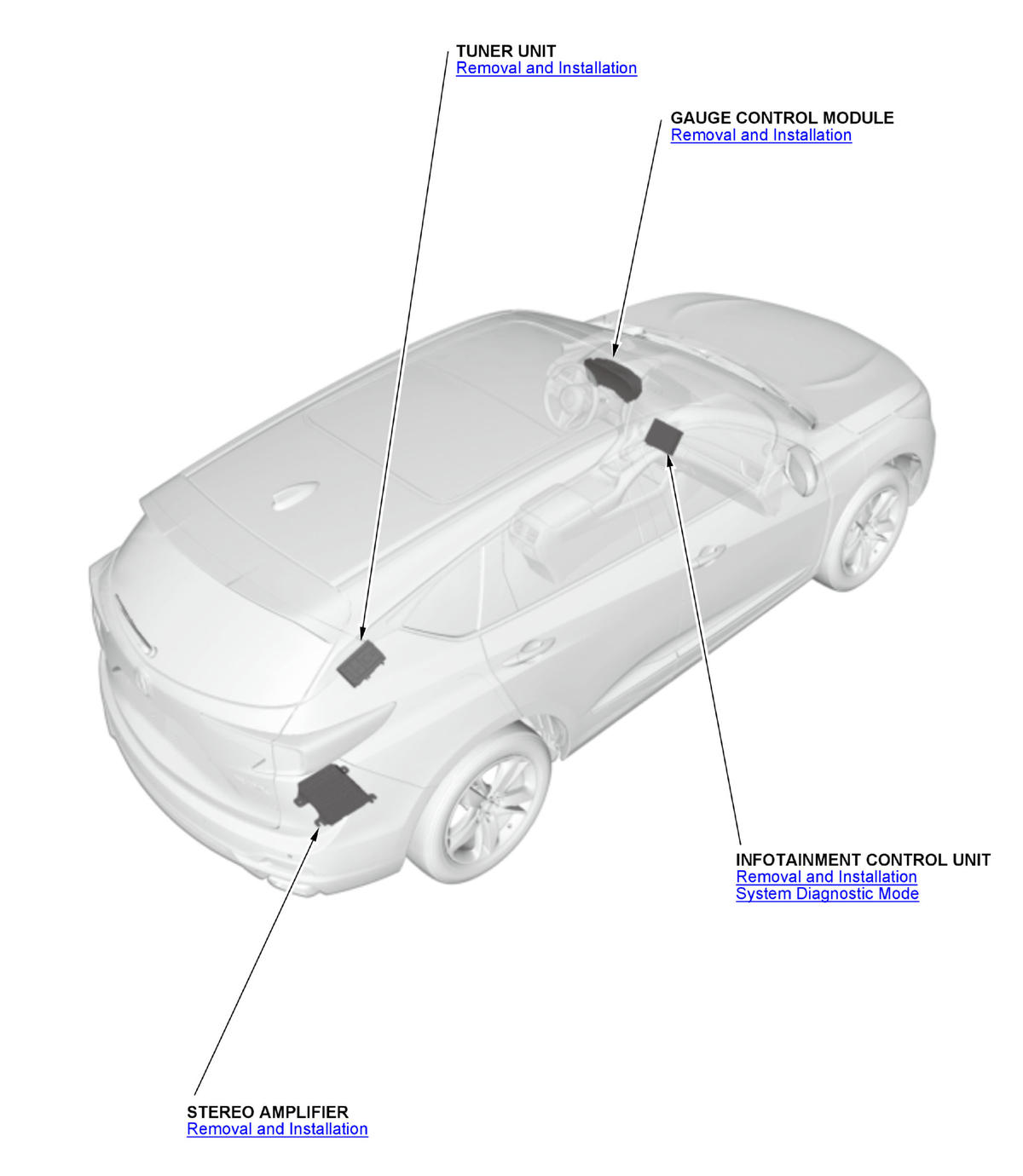

GHH554094Courtesy of HONDA, U.S.A., INC.

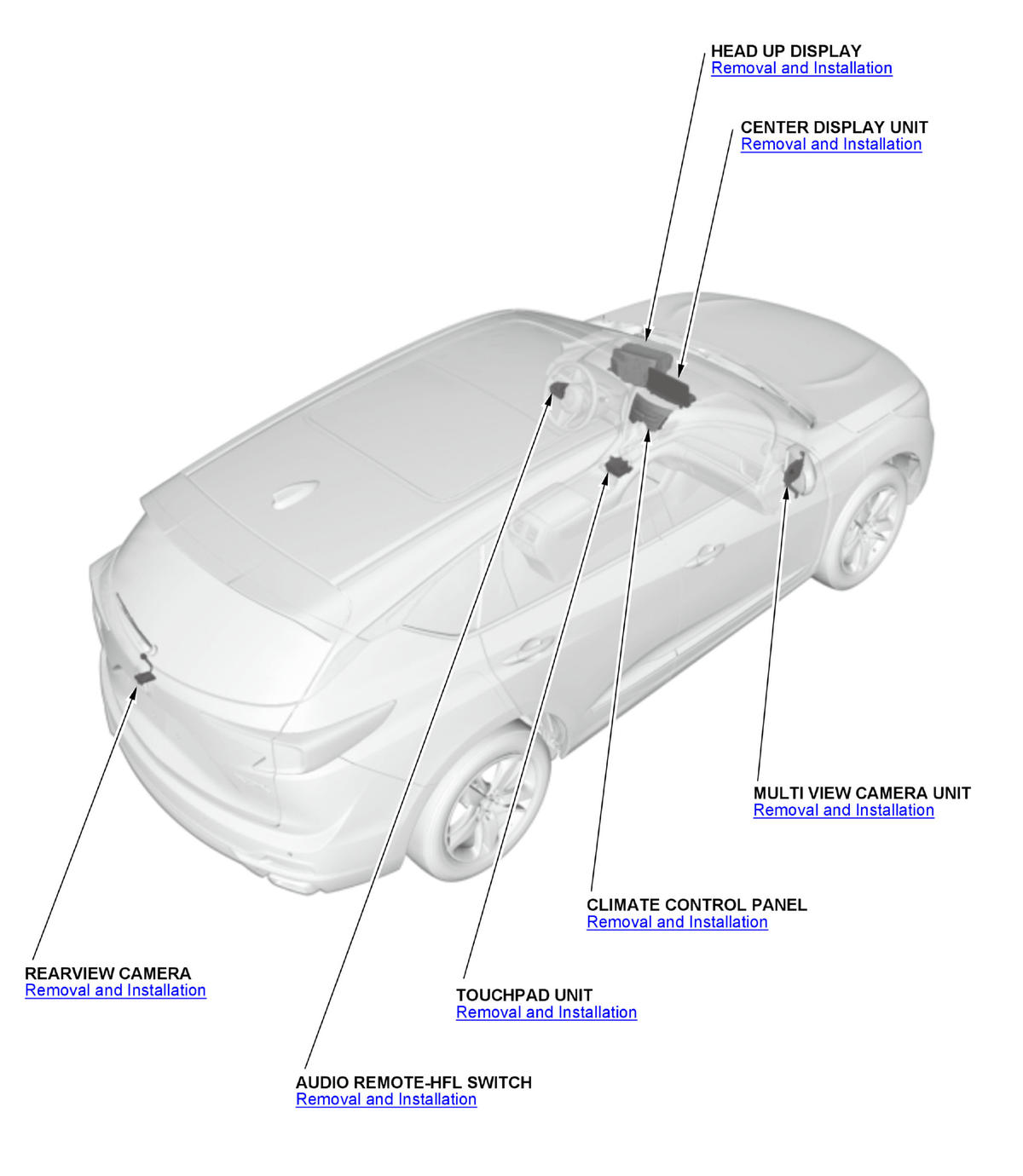

GHH554095Courtesy of HONDA, U.S.A., INC.

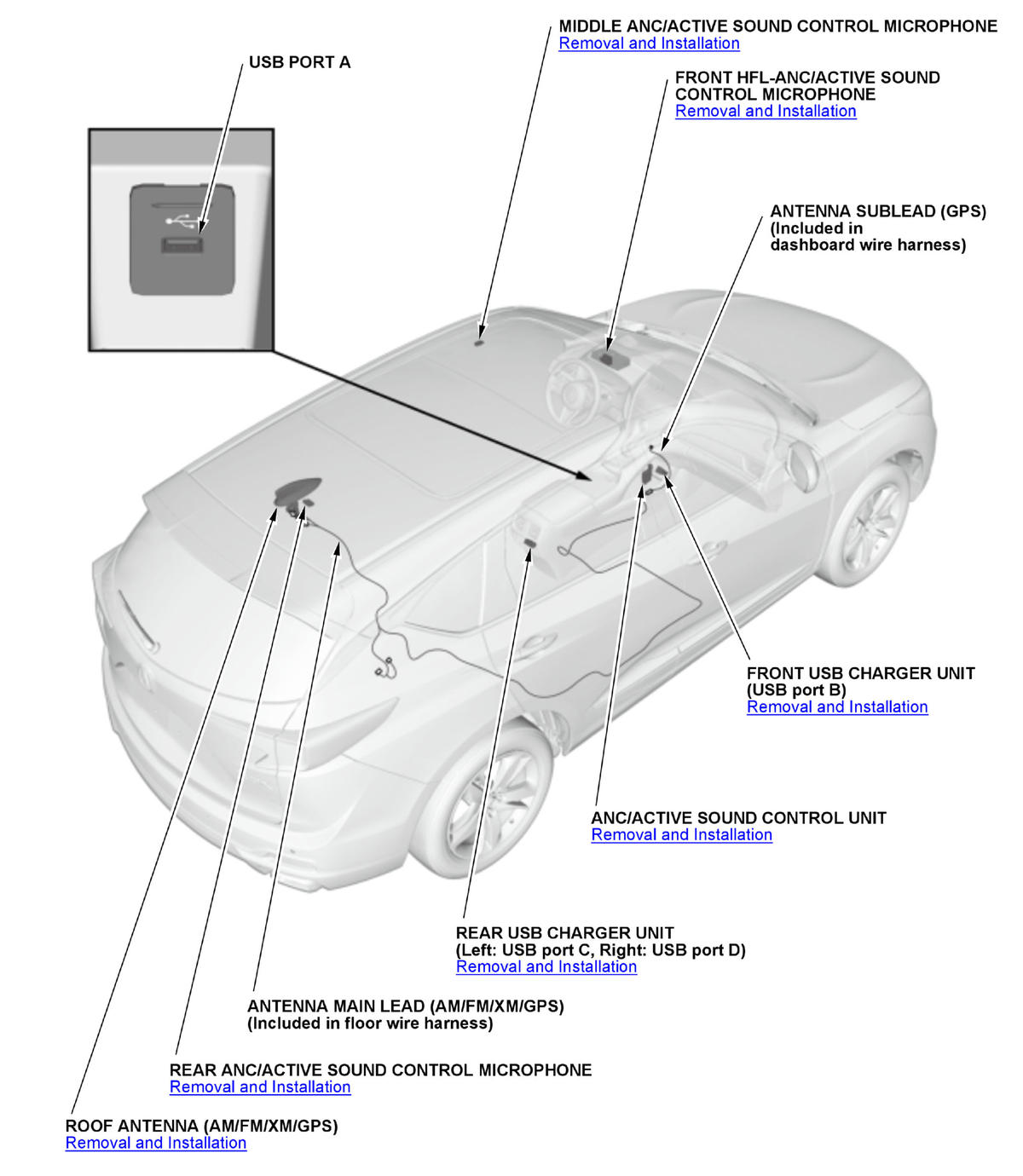

GHH554096Courtesy of HONDA, U.S.A., INC.
