Communication Systems Circuit Diagram (2022 2023)

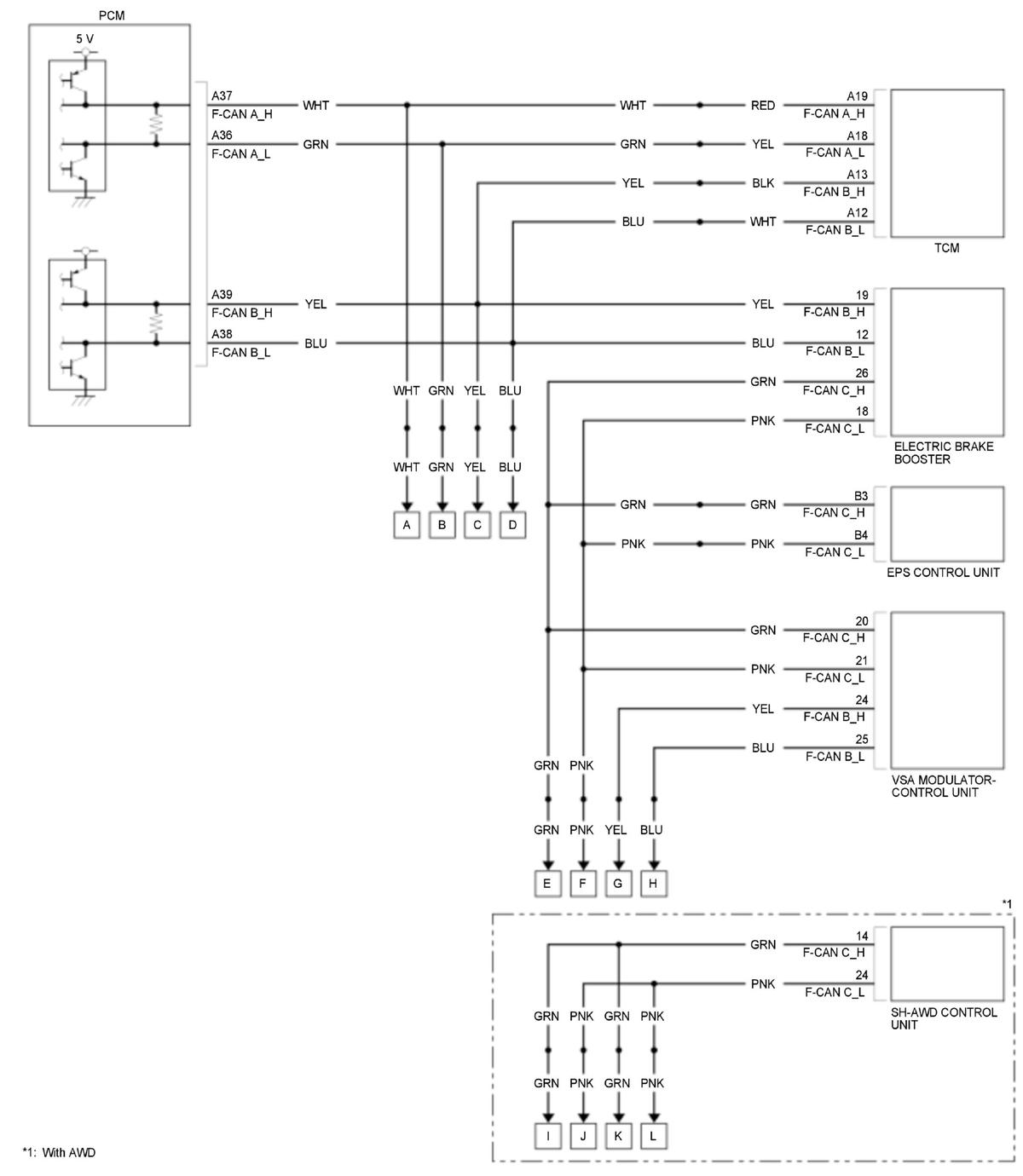

GHH555779

Courtesy of HONDA, U.S.A., INC.

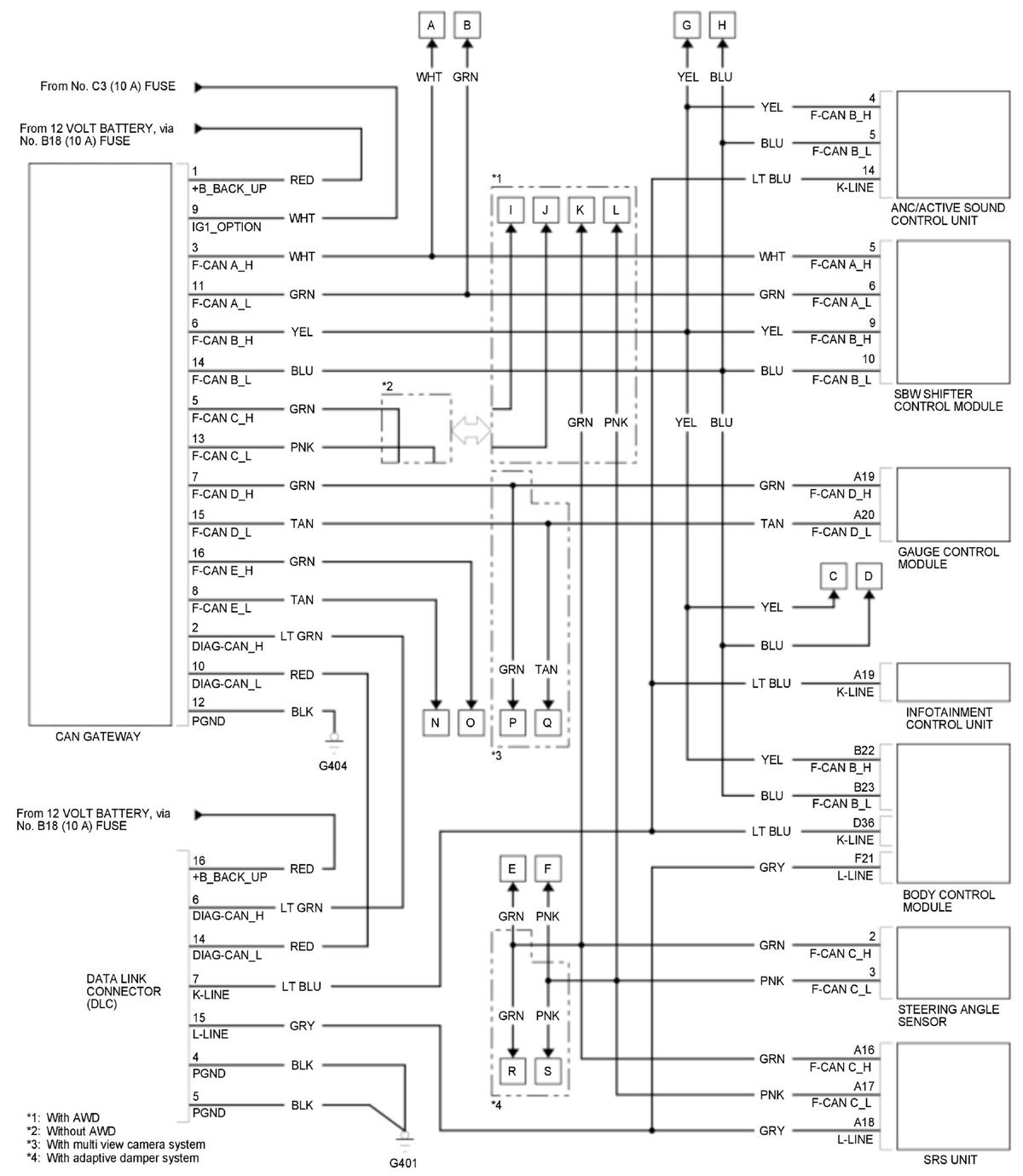

GHH555780

Courtesy of HONDA, U.S.A., INC.

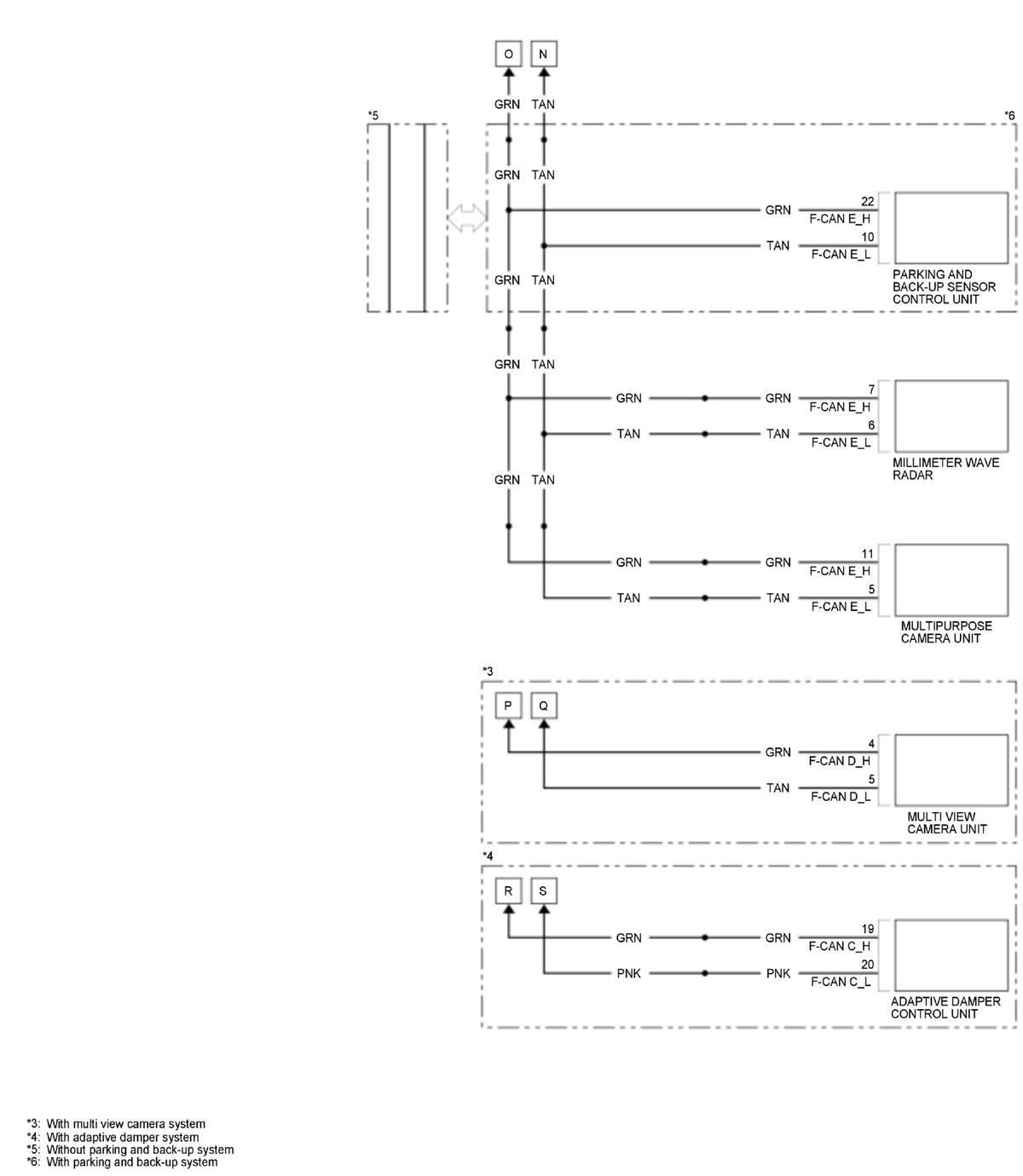

GHH555781

Courtesy of HONDA, U.S.A., INC.
