Communication Systems Circuit Diagram (2019 2020 2021)

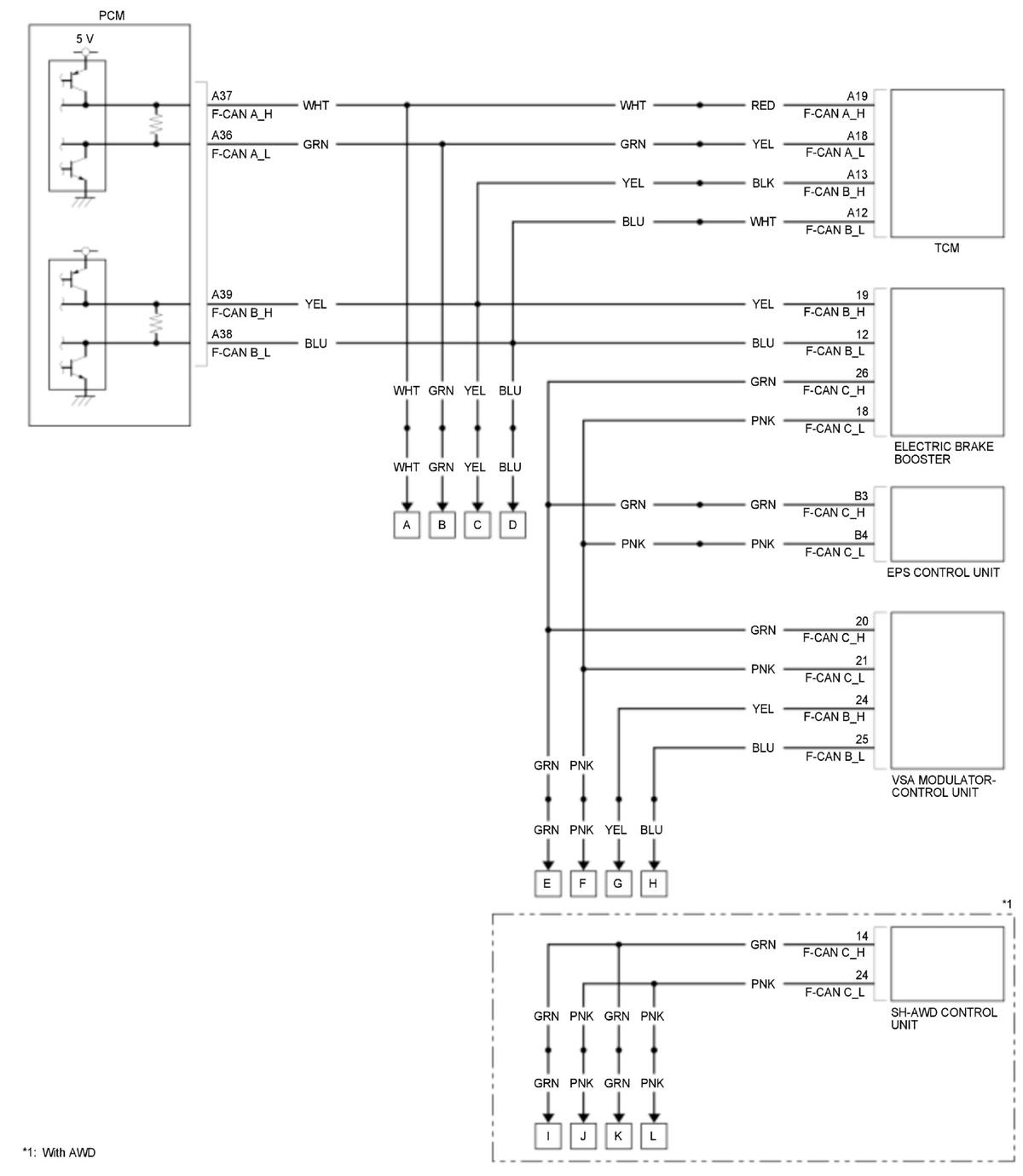

GHH335649

Courtesy of HONDA, U.S.A., INC.

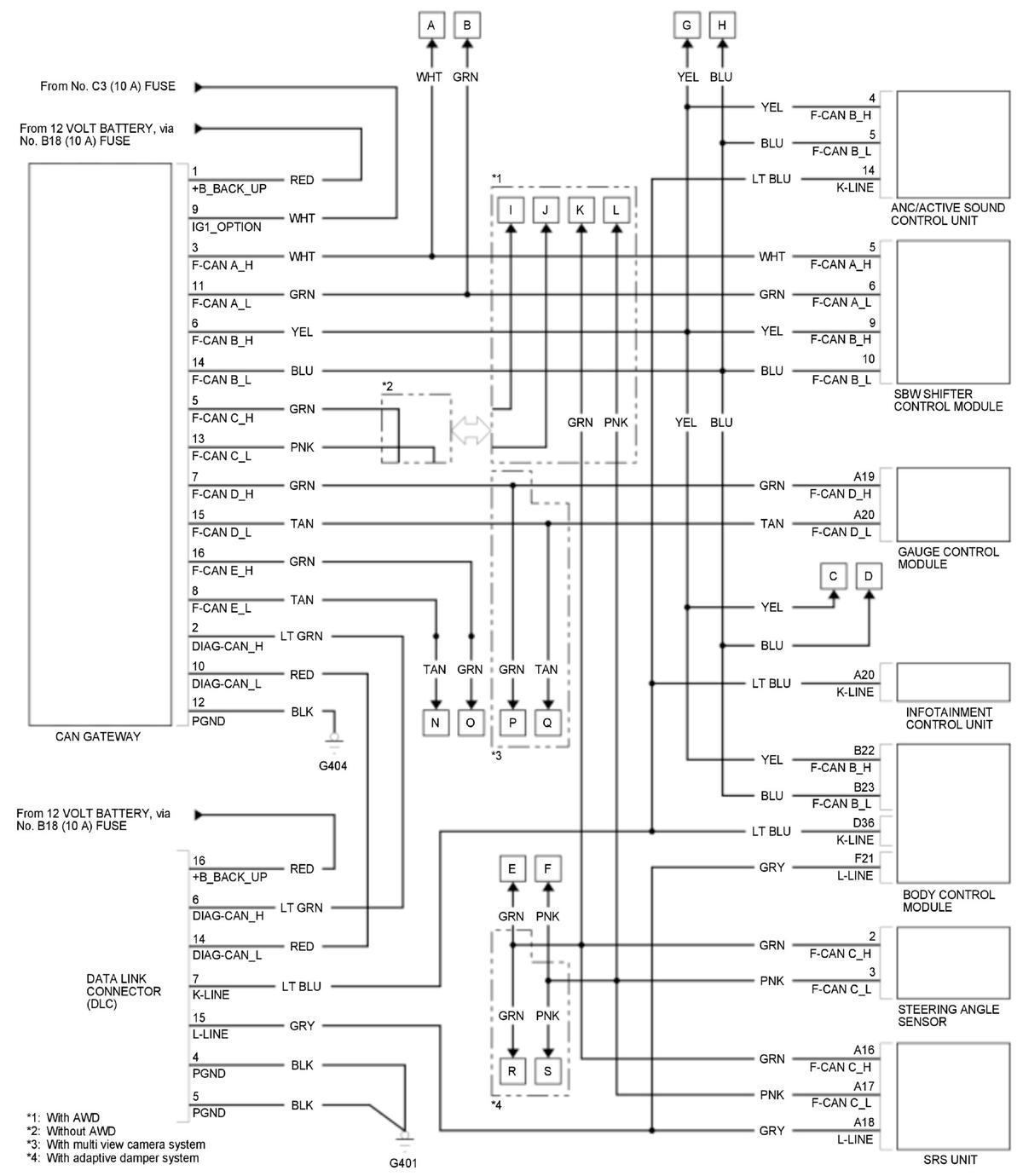

GHH335650

Courtesy of HONDA, U.S.A., INC.

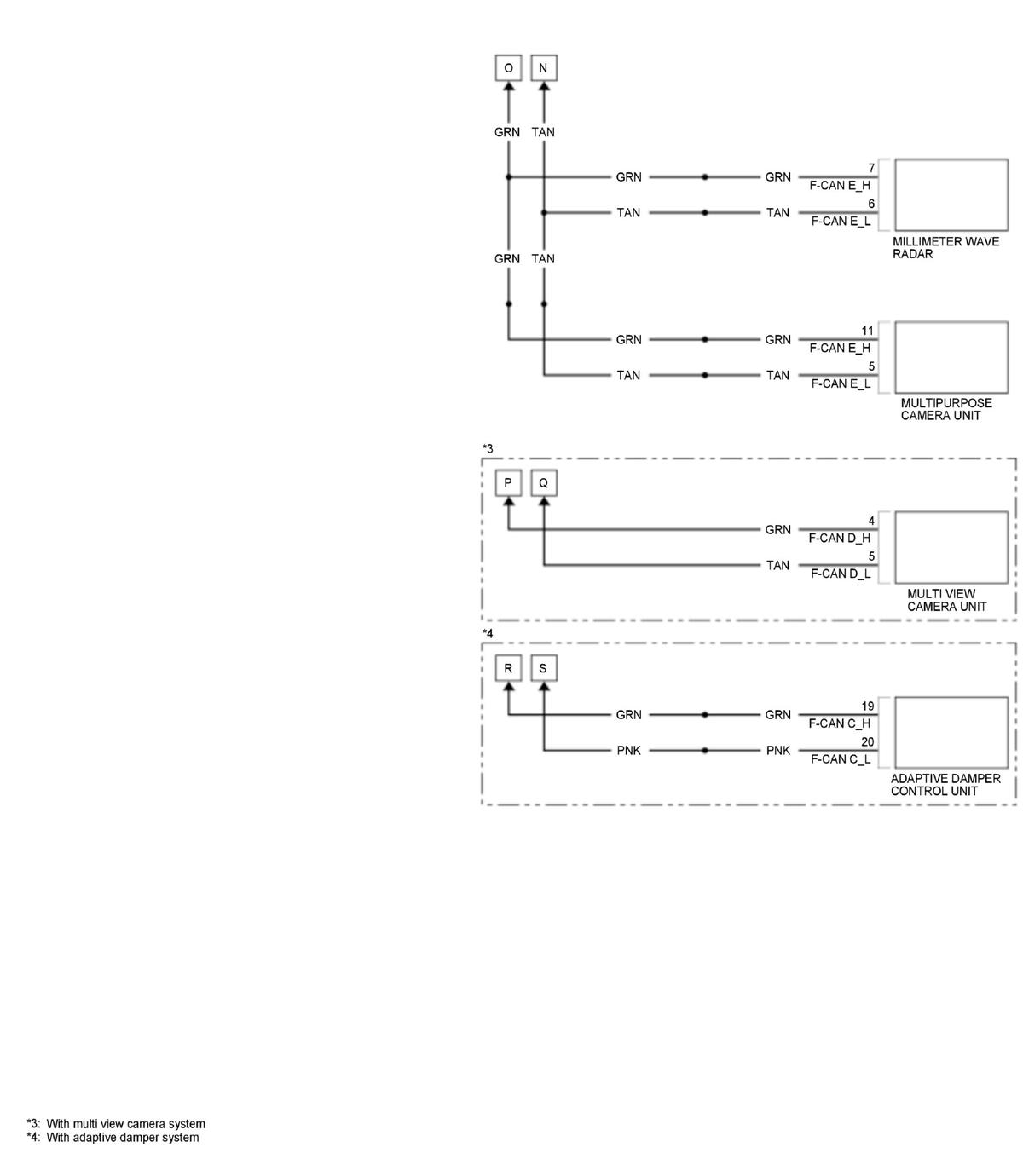

GHH335651

Courtesy of HONDA, U.S.A., INC.
