A/T System Circuit Diagram (2022, 2023)

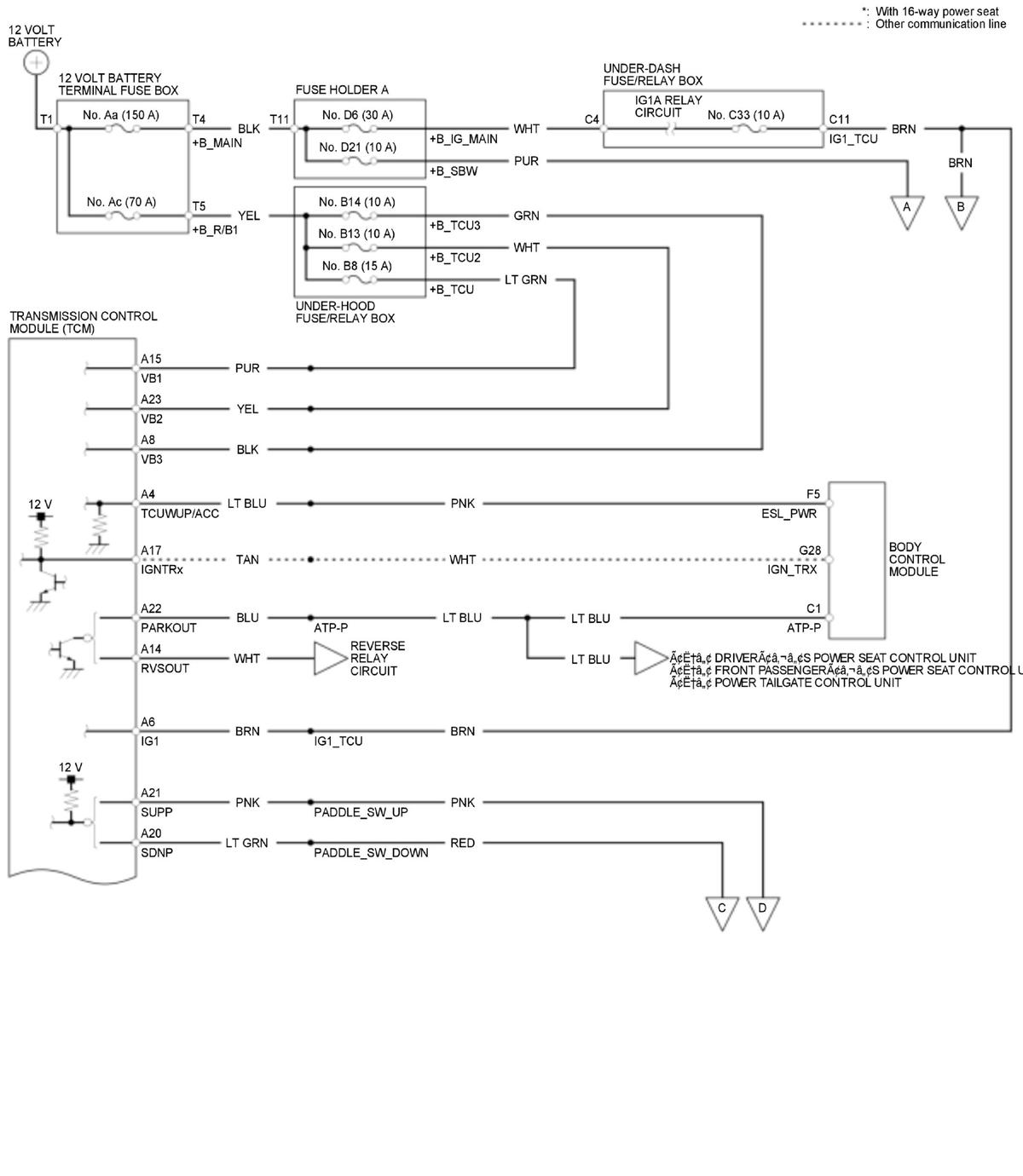

GHH554113

Courtesy of HONDA, U.S.A., INC.

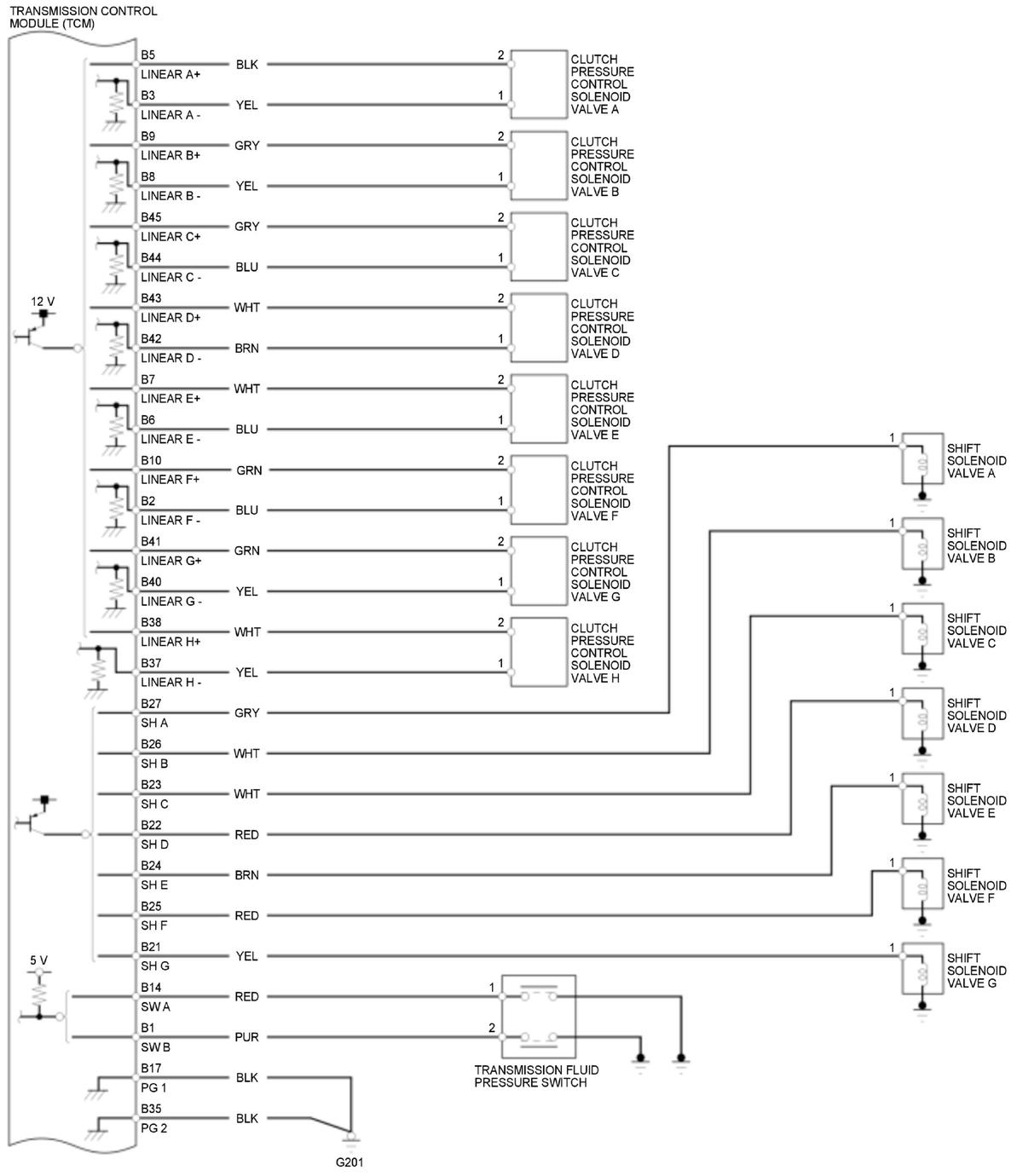

GHH554114

Courtesy of HONDA, U.S.A., INC.

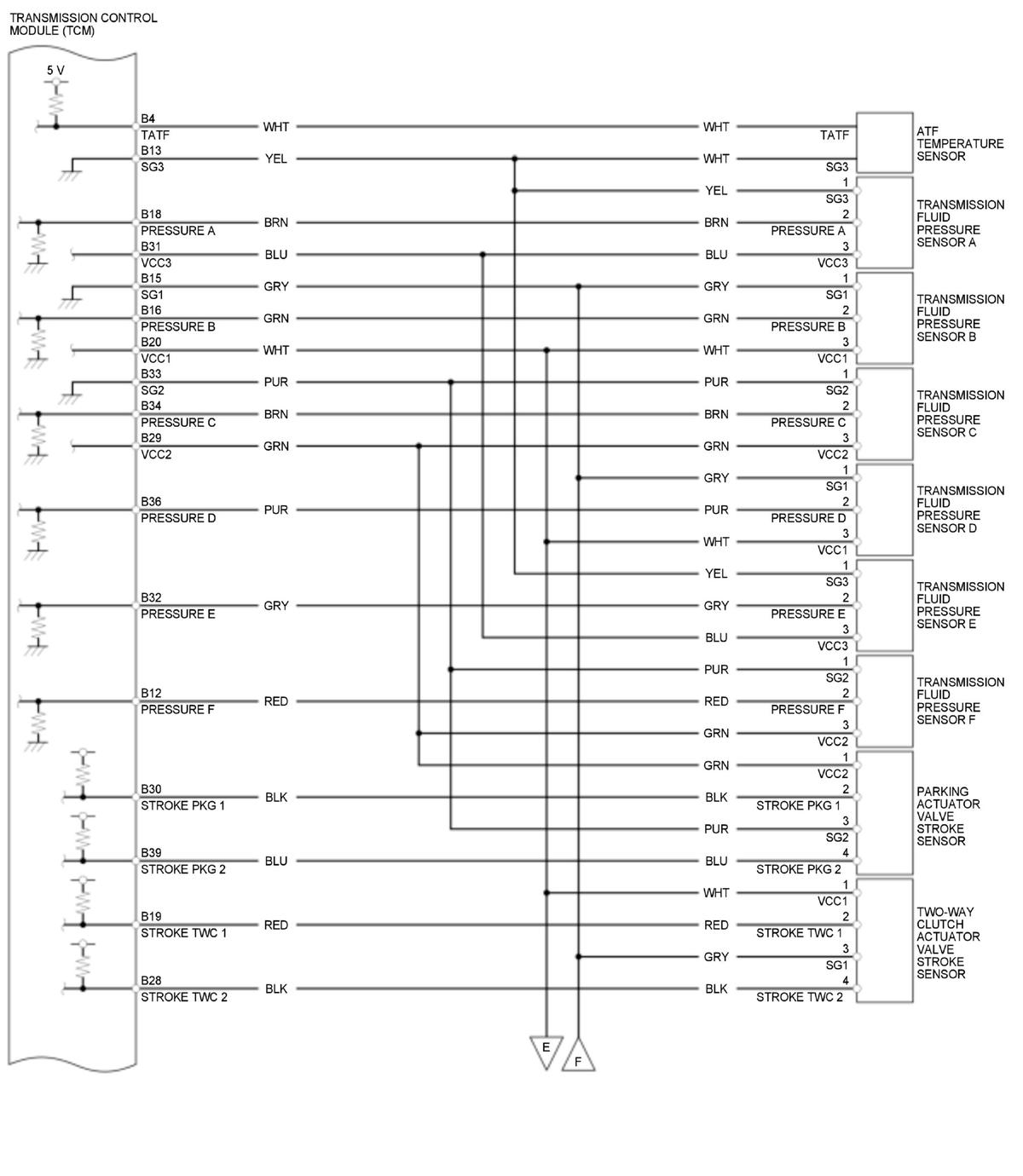

GHH554115

Courtesy of HONDA, U.S.A., INC.

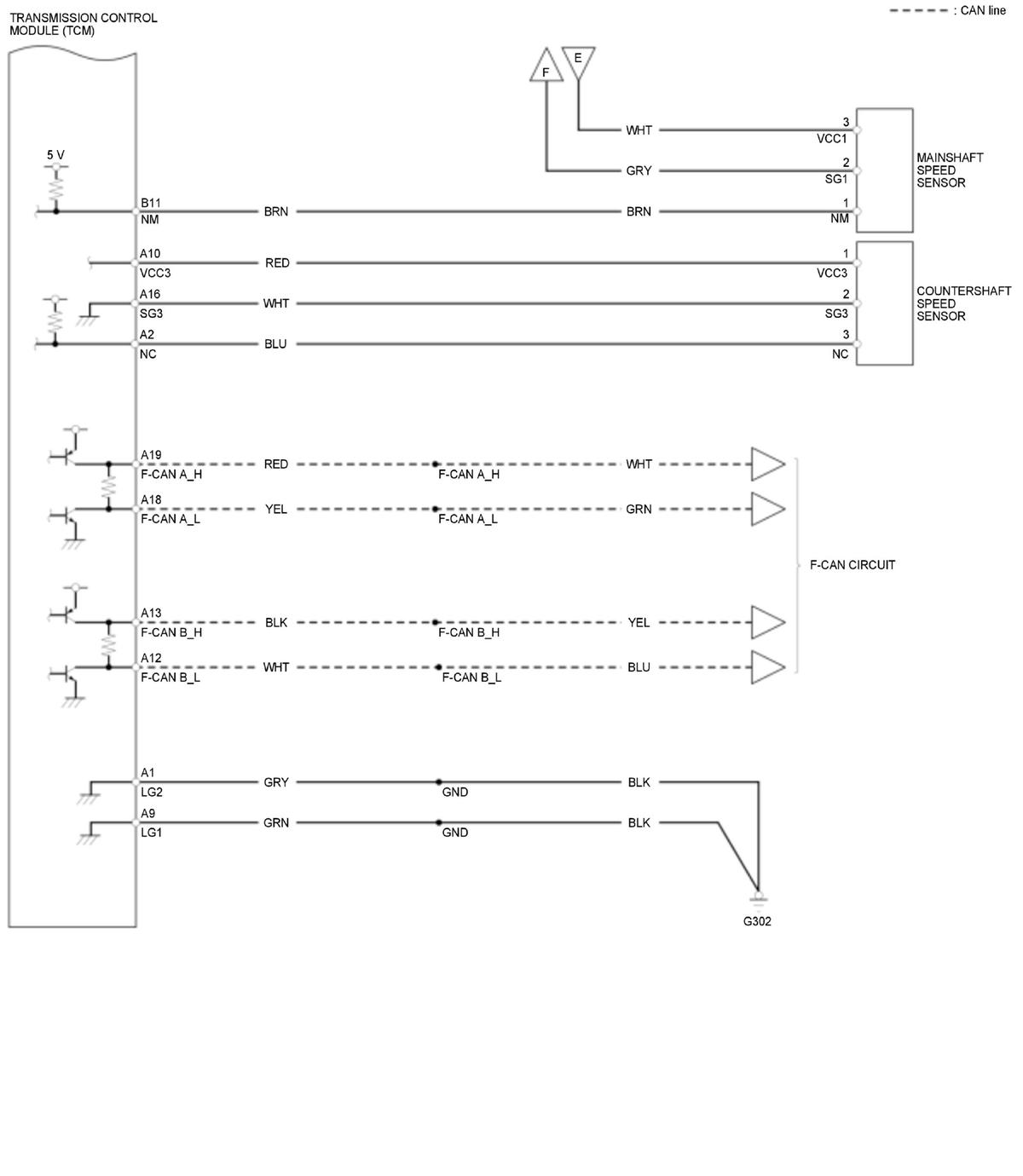

GHH554116

Courtesy of HONDA, U.S.A., INC.

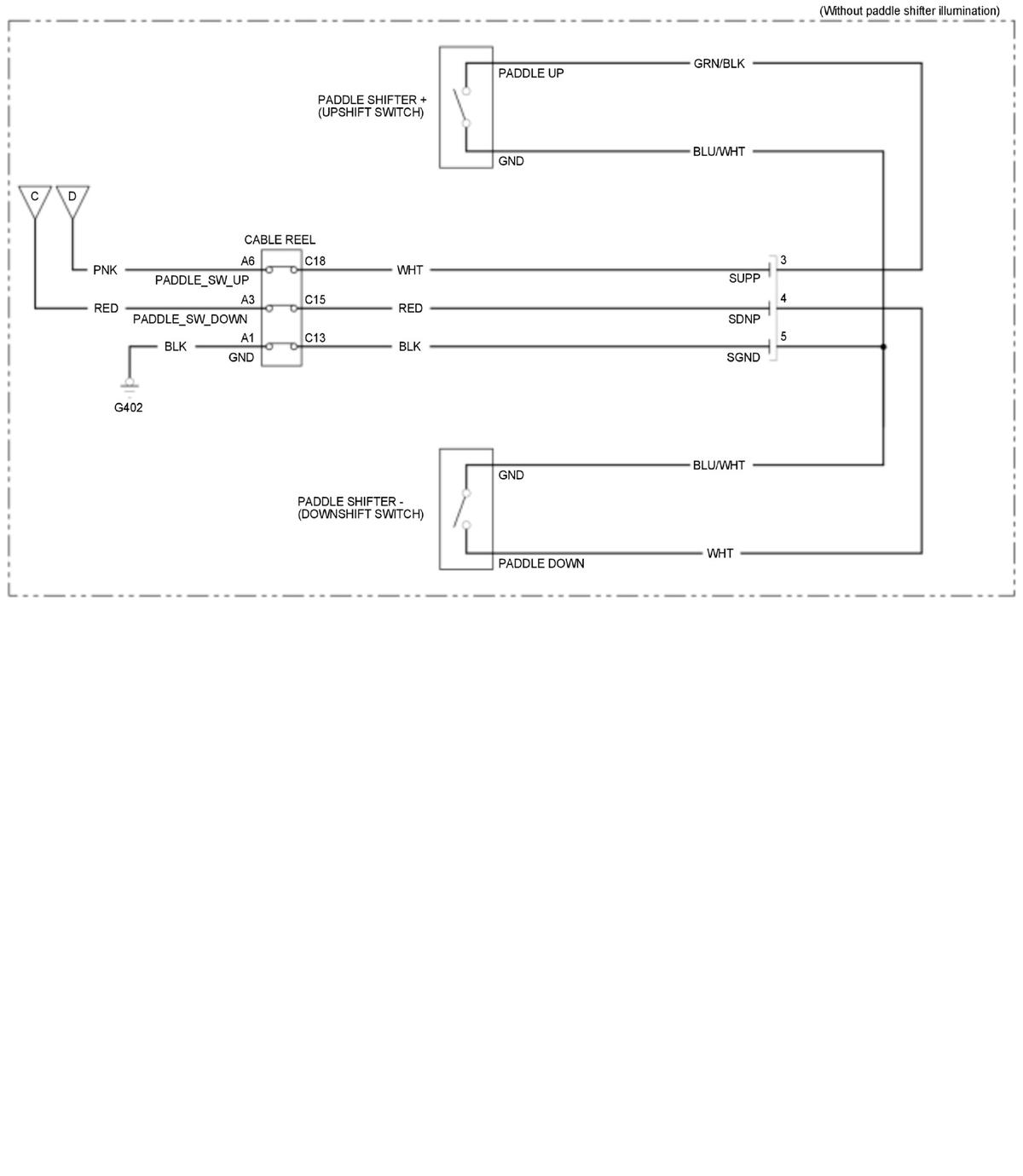

GHH554117

Courtesy of HONDA, U.S.A., INC.

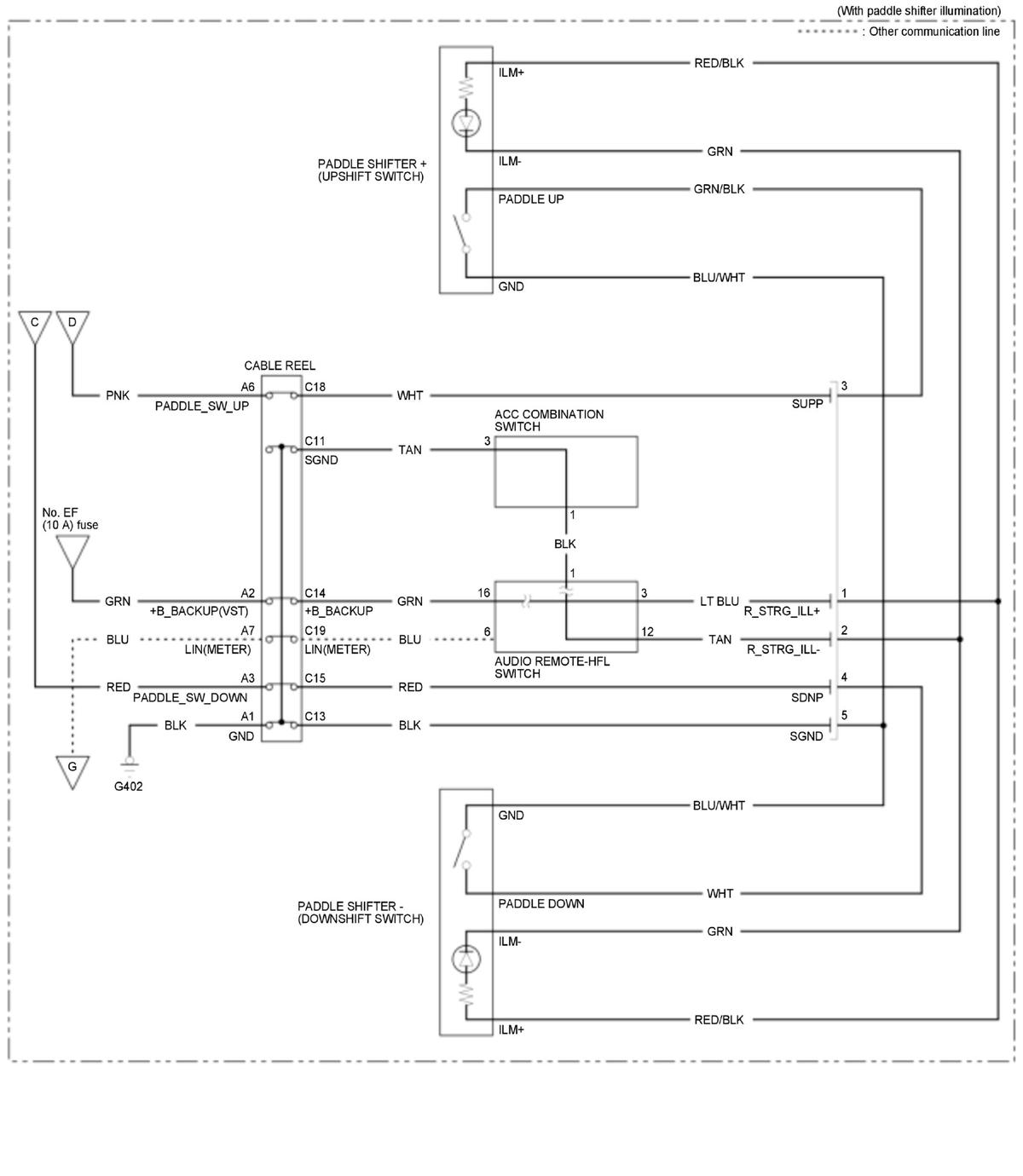

GHH554118

Courtesy of HONDA, U.S.A., INC.

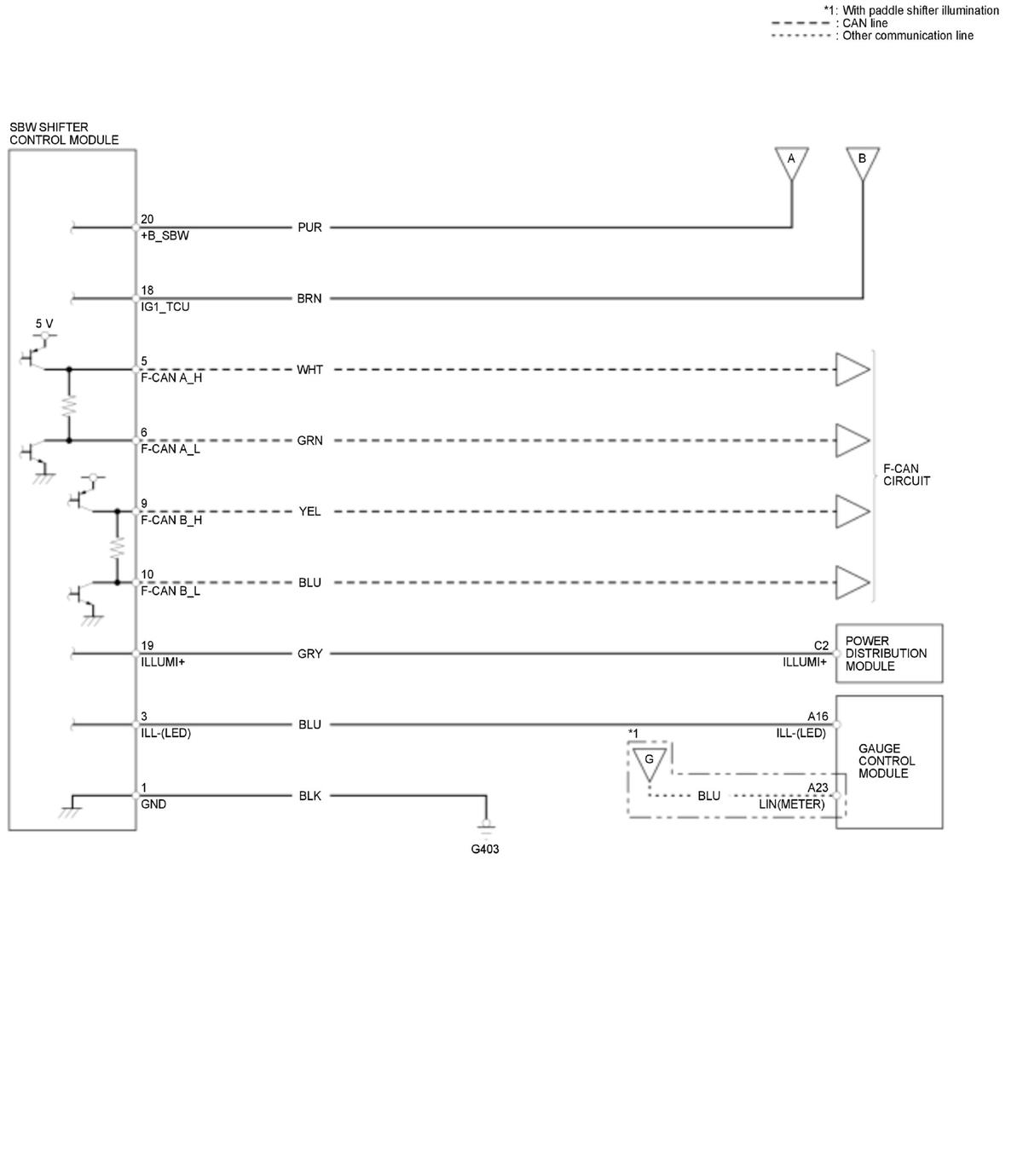

GHH554119

Courtesy of HONDA, U.S.A., INC.

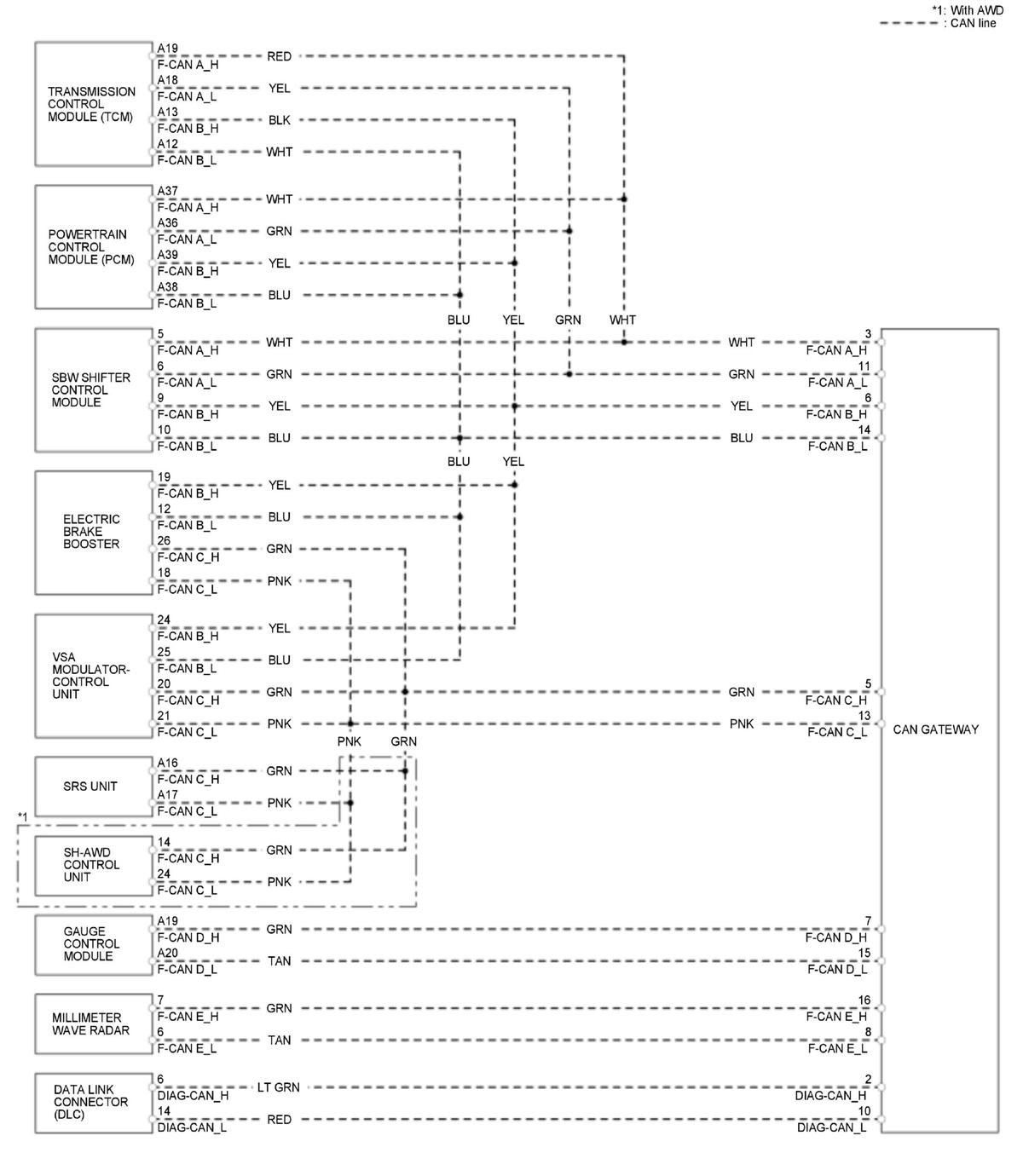

GHH554120

Courtesy of HONDA, U.S.A., INC.
