A/T System Circuit Diagram (2019, 2020, 2021)

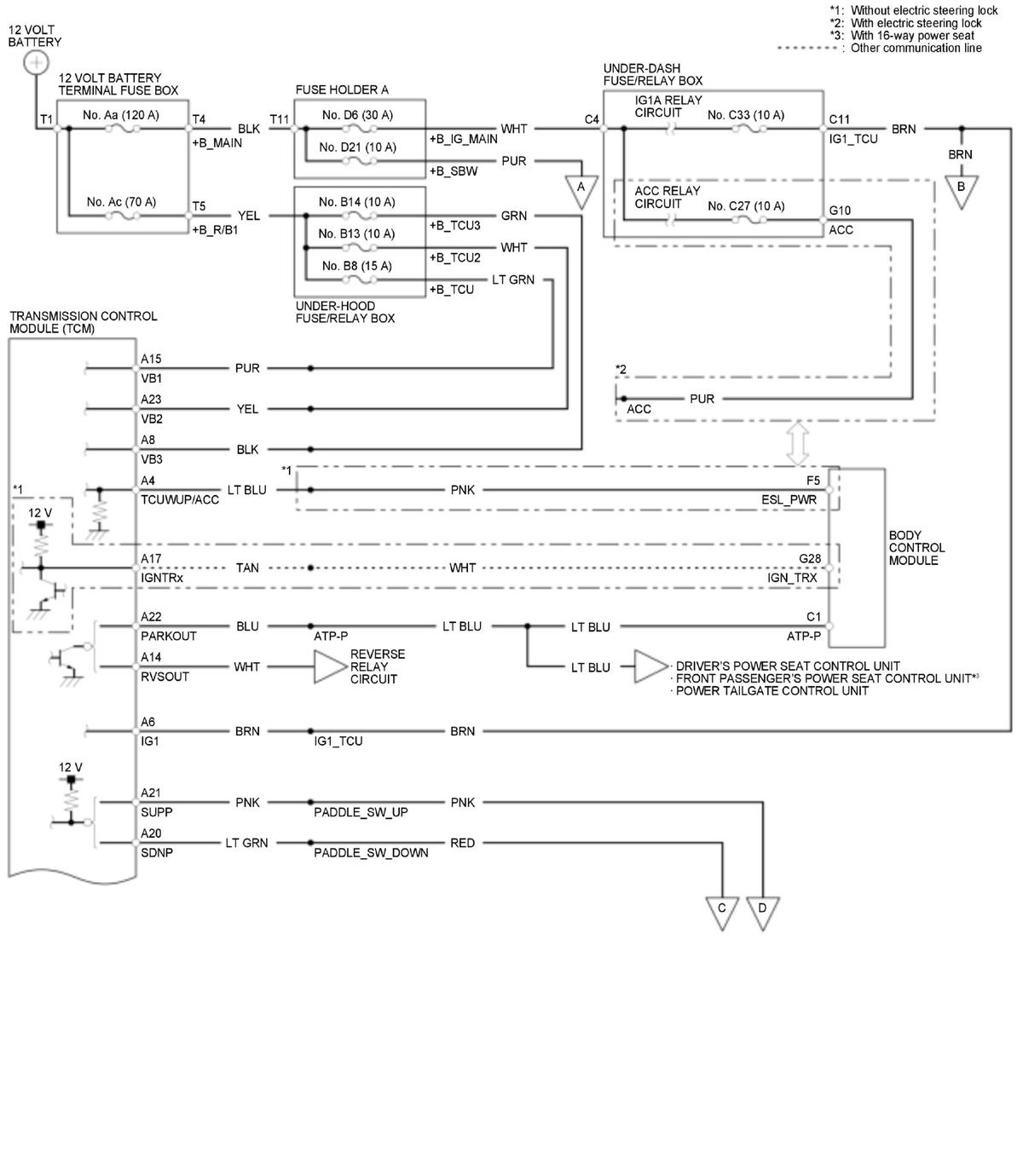

GHH330363

Courtesy of HONDA, U.S.A., INC.

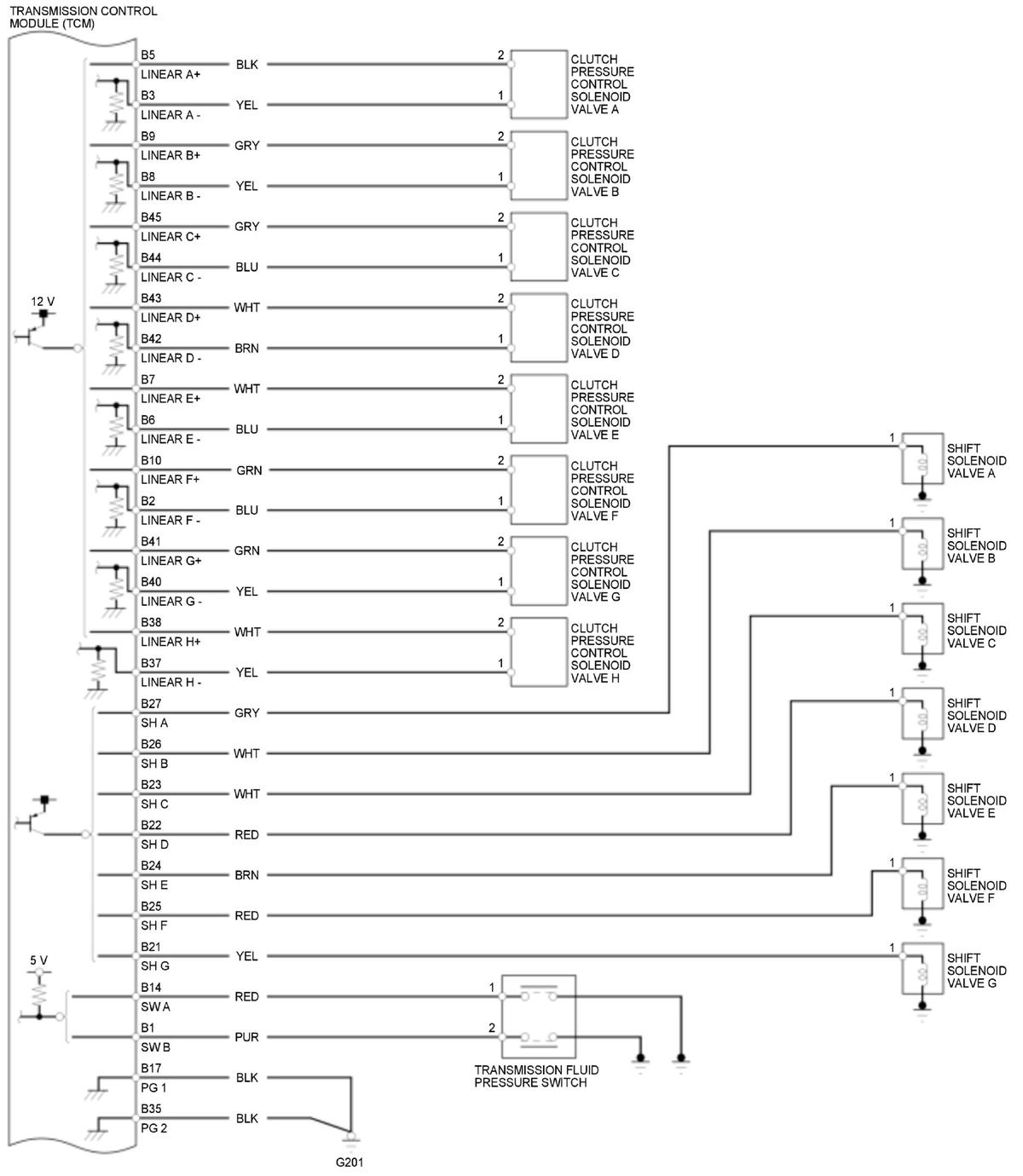

GHH330364

Courtesy of HONDA, U.S.A., INC.

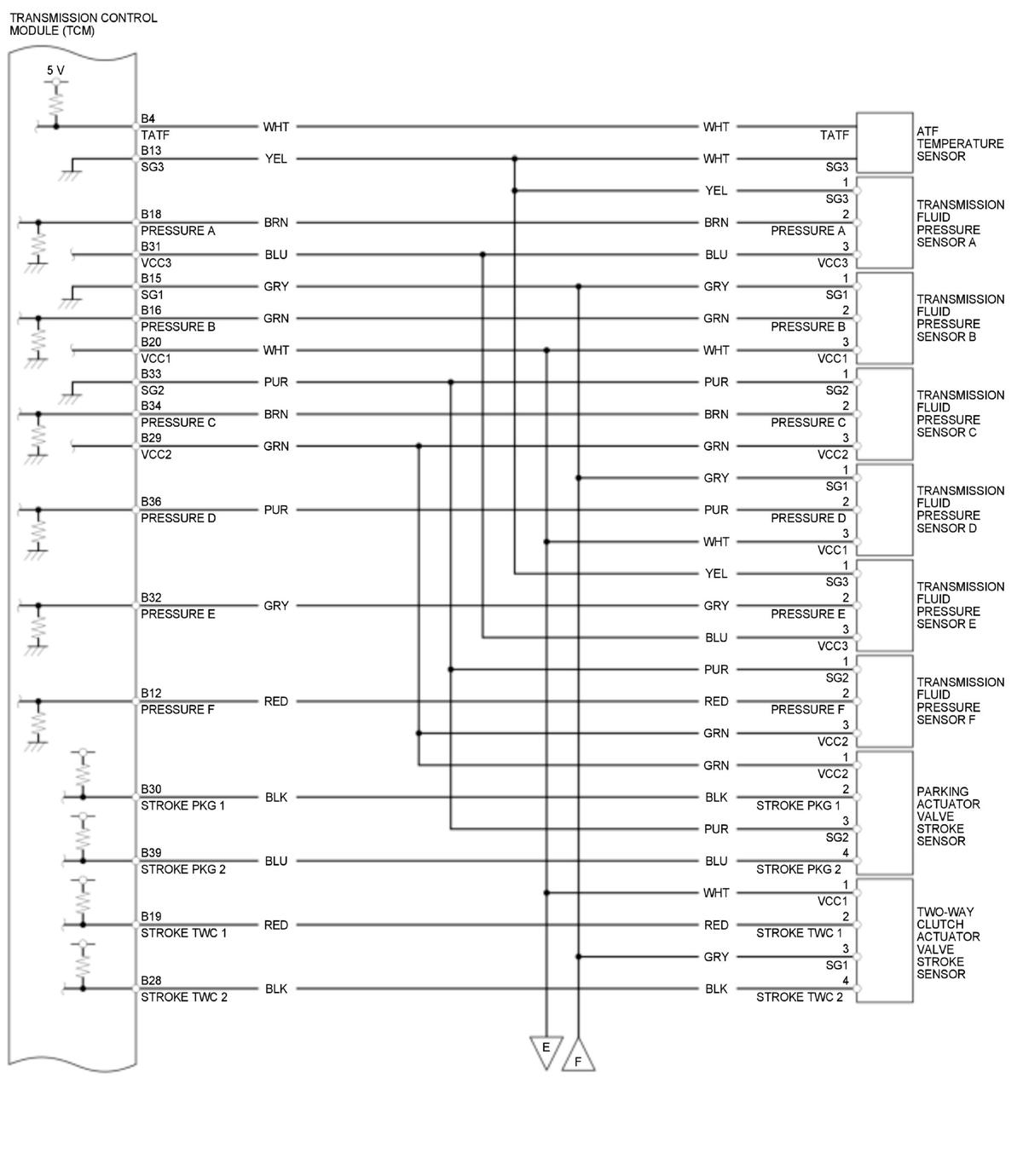

GHH330365

Courtesy of HONDA, U.S.A., INC.

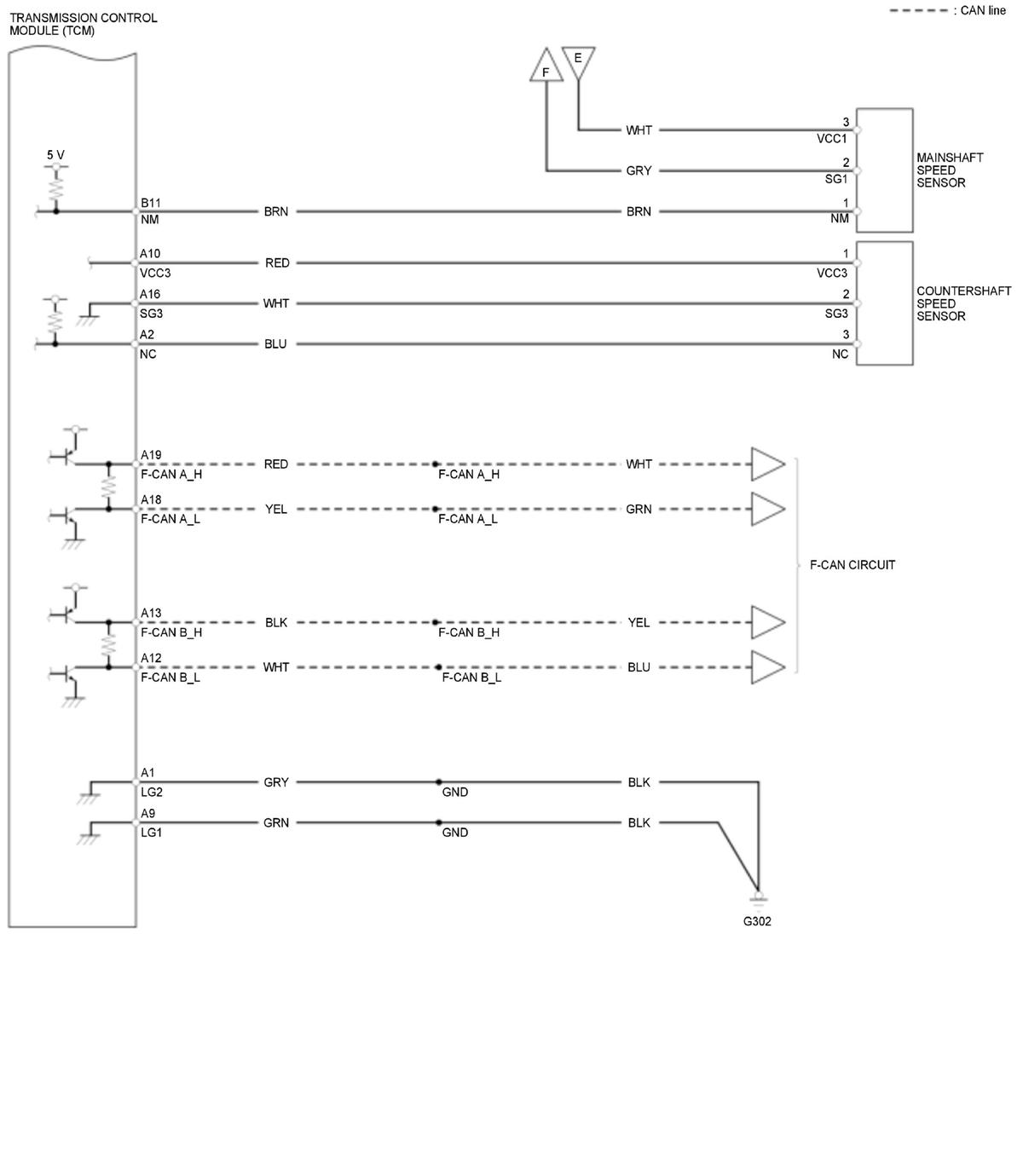

GHH330366

Courtesy of HONDA, U.S.A., INC.

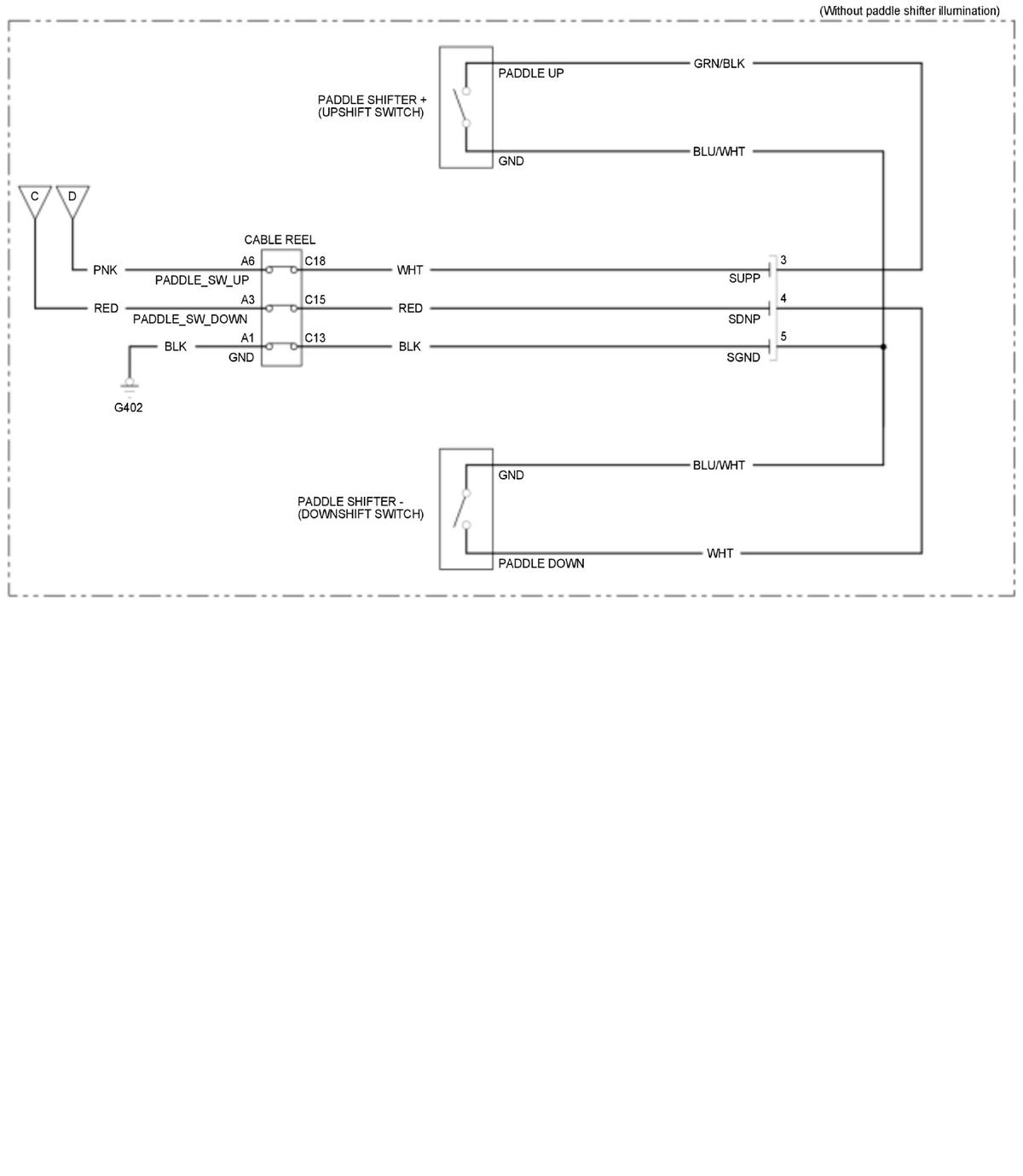

GHH330367

Courtesy of HONDA, U.S.A., INC.

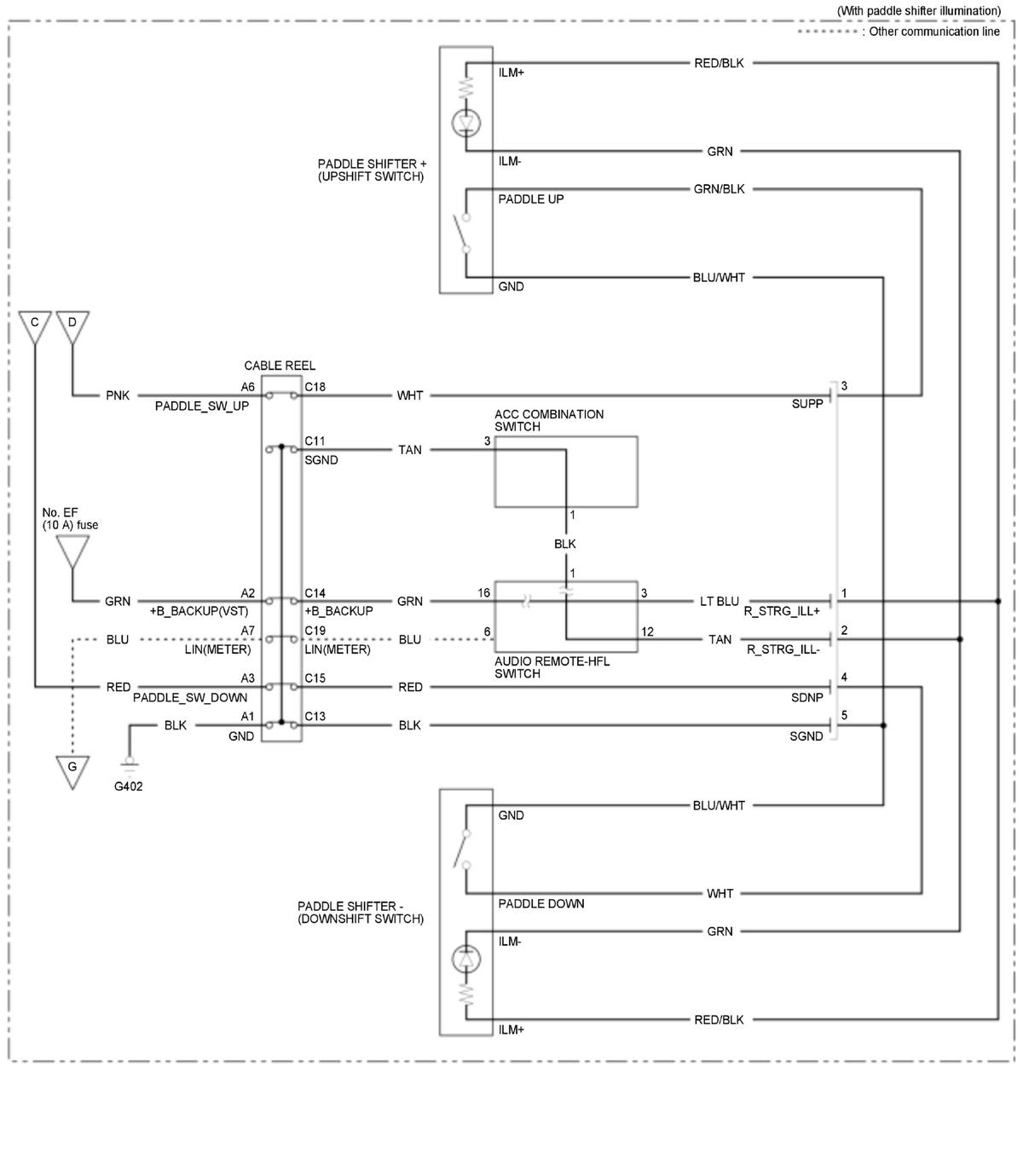

GHH330368

Courtesy of HONDA, U.S.A., INC.

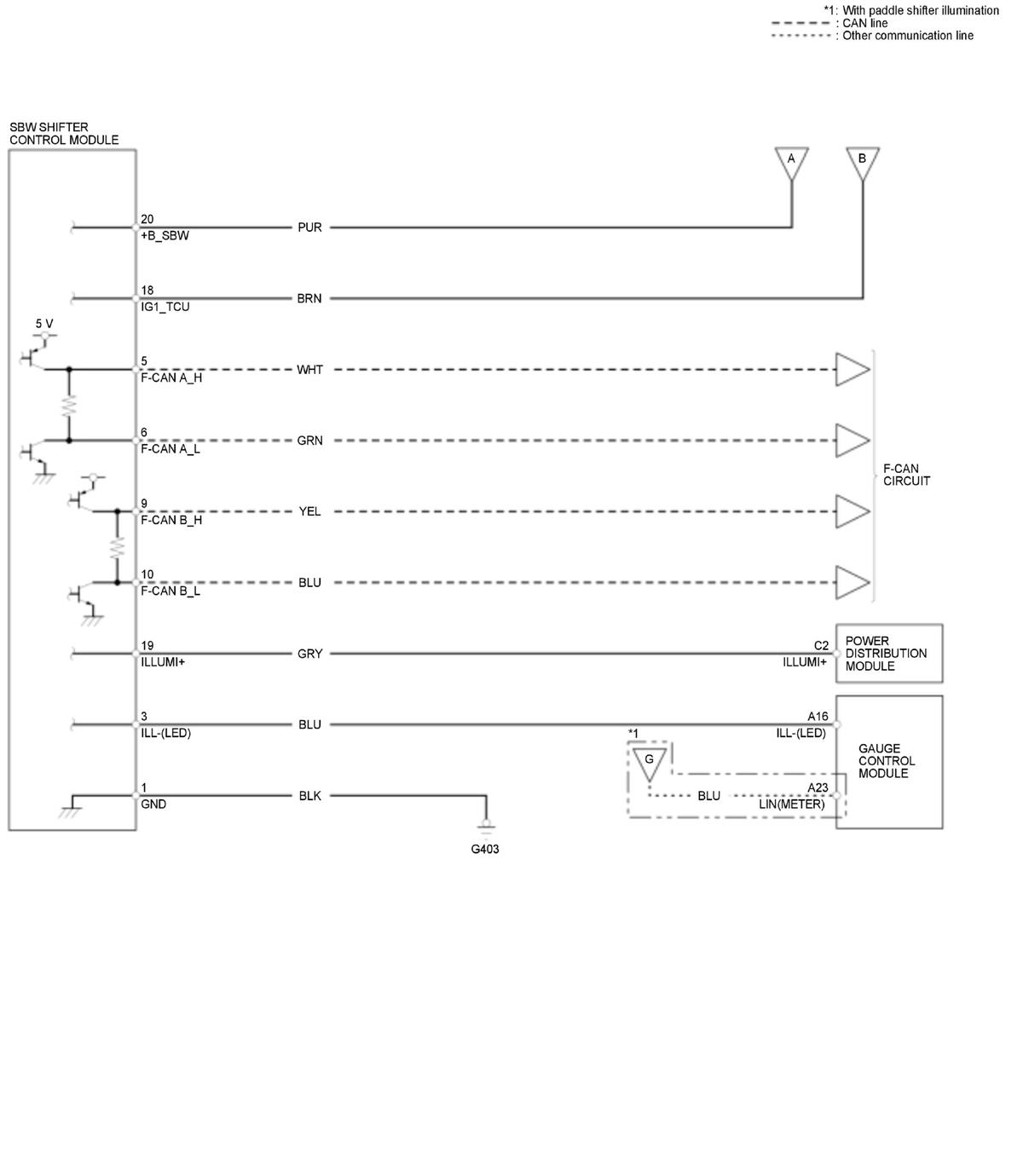

GHH330369

Courtesy of HONDA, U.S.A., INC.

GHH330370

Courtesy of HONDA, U.S.A., INC.
