Repair Procedure: Notes

How to use this Service Information .

Fig 1: Catalytic Converter/Turbocharger Area Replacement Components With Torque Specifications (1 Of 3)
GHH554221Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : SPL Tool : Required Removal
Fig 2: Catalytic Converter/Turbocharger Area Replacement Components With Torque Specifications (2 Of 3)
GHH554222Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal

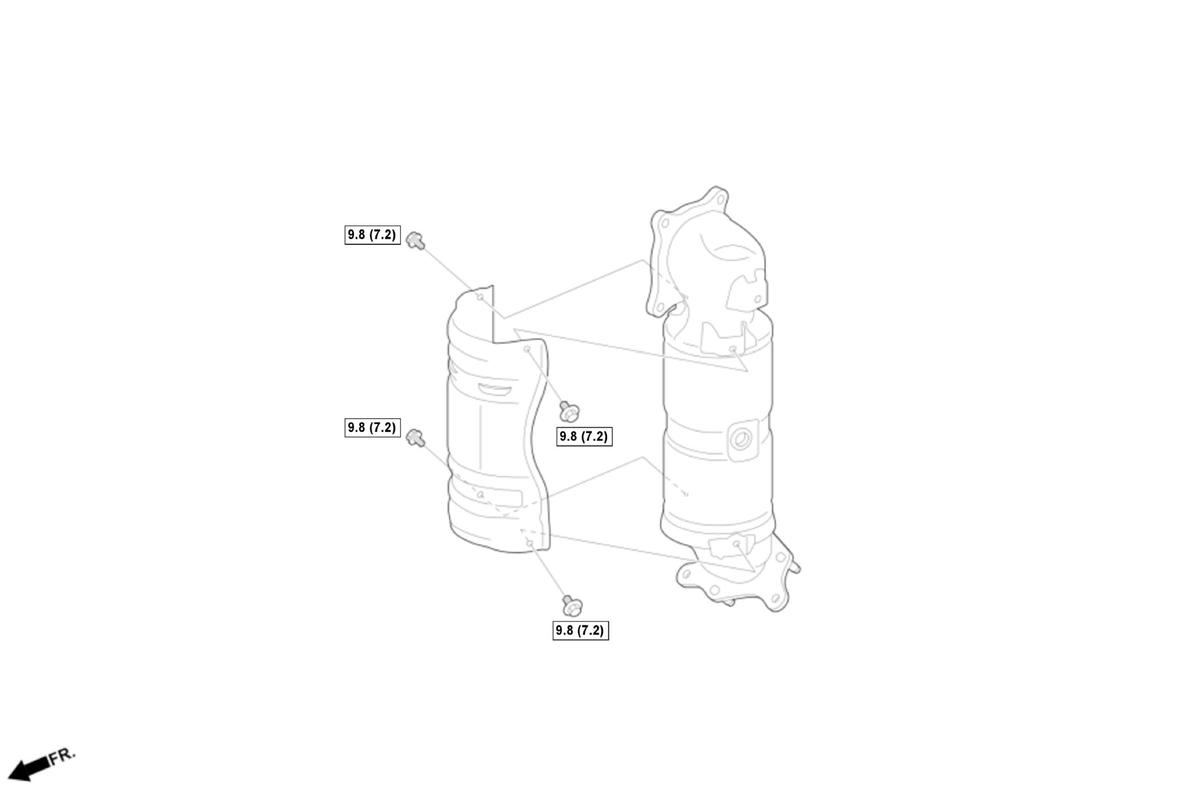

Fig 3: Catalytic Converter/Turbocharger Area Replacement Components With Torque Specifications (3 Of 3)
GHH554223Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
