Parking and Back-Up Sensor Switch Test (with Low Speed Brake Control): Test

How to use this Service Information .

1. Parking and Back-Up Sensor Switch - Test

   ■ Preconditions

   • Driver's Dashboard Lower Cover Removed

   ■ Procedure/Specifications

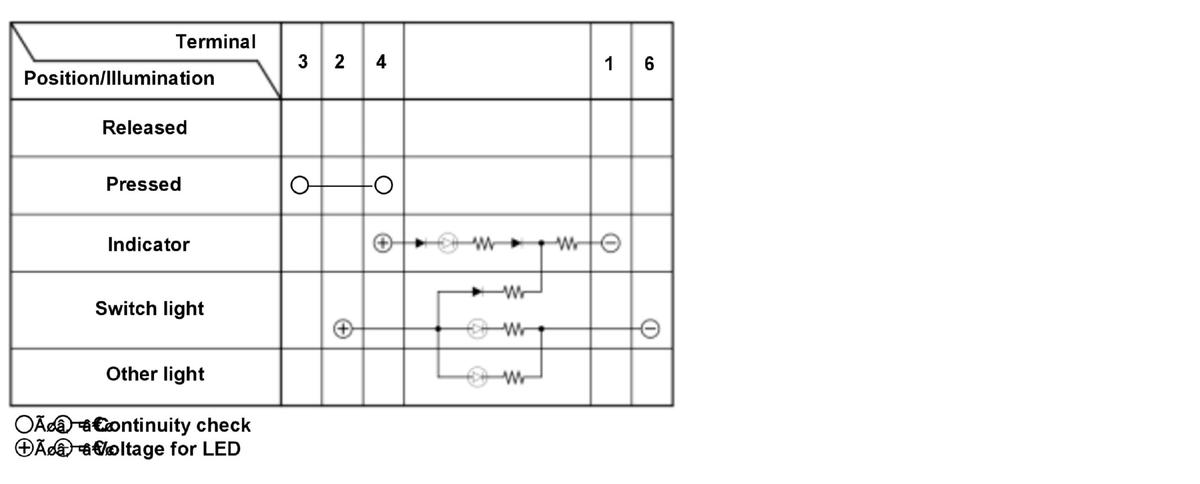

   • Check the switch according to the table. (Figure 1 and 2)
   NOTE:

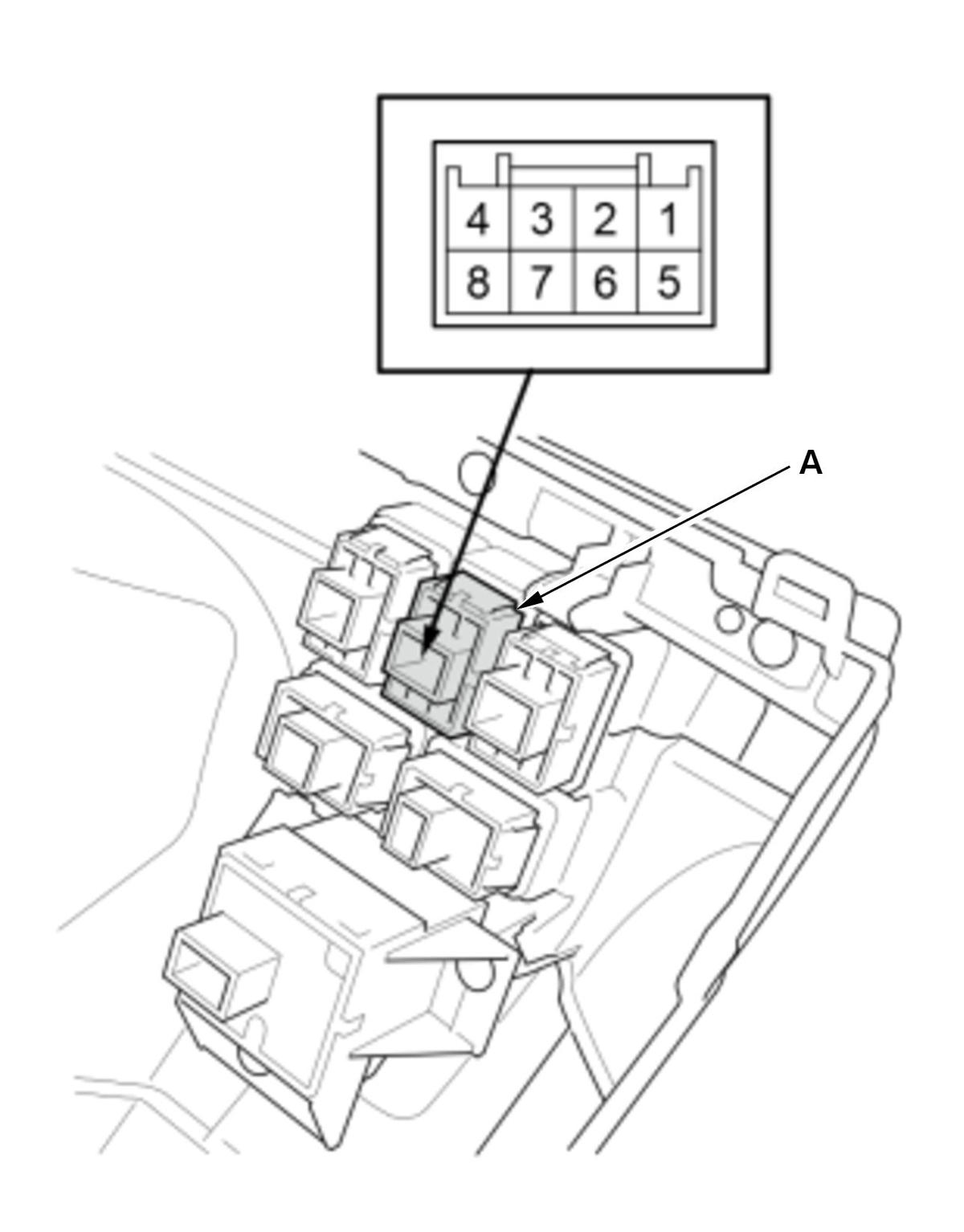

   • The switch location of the parking and back-up sensor switch (A) is different depending on the model. (Figure 1)
   • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
   • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   ■ Result

   • If the result is not as specified, replace the parking and back-up sensor switch .
