Engine Oil Pressure Switch Test: Test

How to use this Service Information .

1. Oil Pressure Switch - Test

   ■ Procedure/Specifications

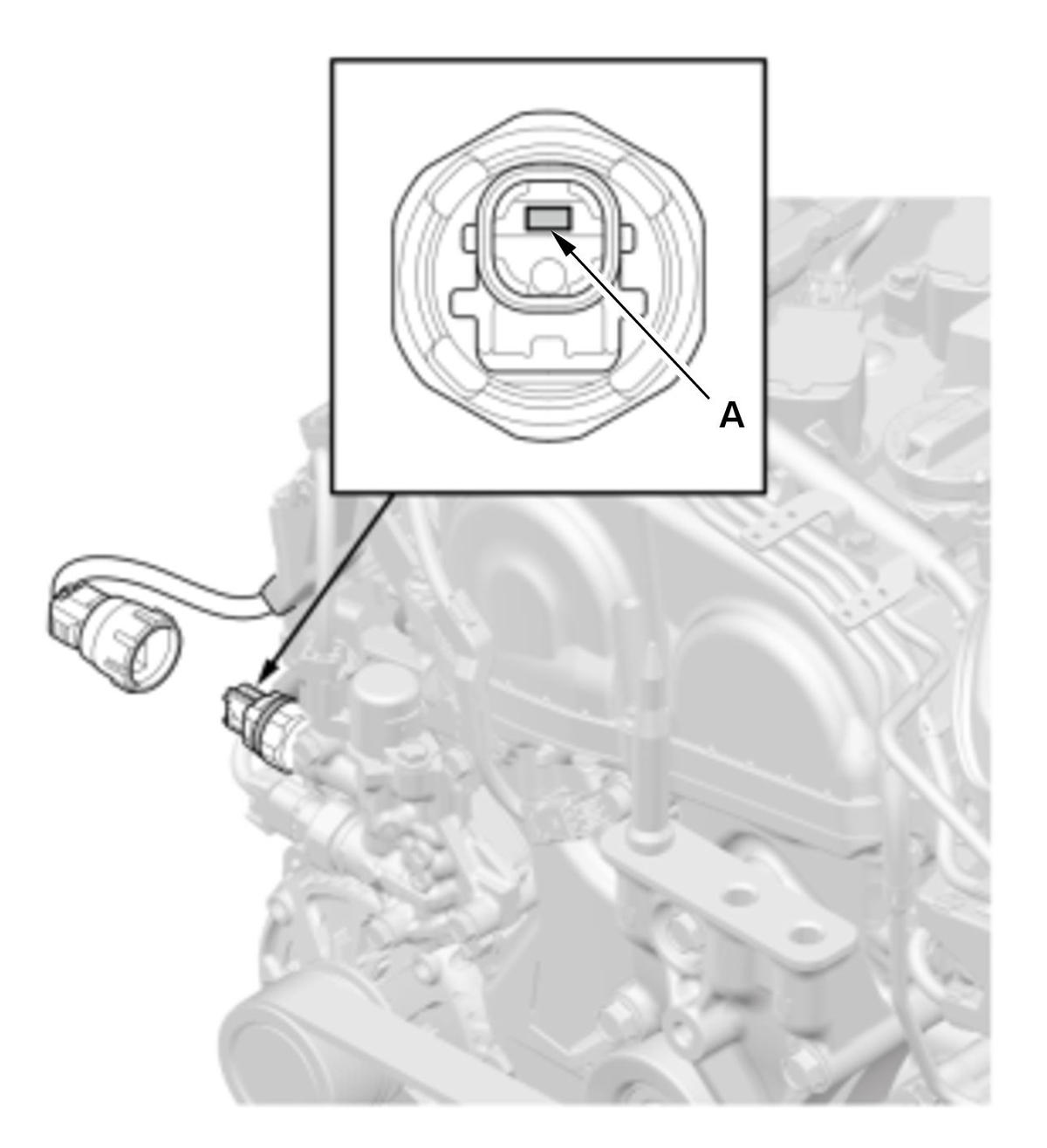

   • Check for continuity between the switch terminal (A) and the engine (ground).

   Normal Conditions

   There should be continuity with the engine stopped There should be no continuity with the engine running

   Courtesy of HONDA, U.S.A., INC.

   ■ Result

   • If it is abnormal, replace the oil pressure switch .
