Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs (2022 2023)

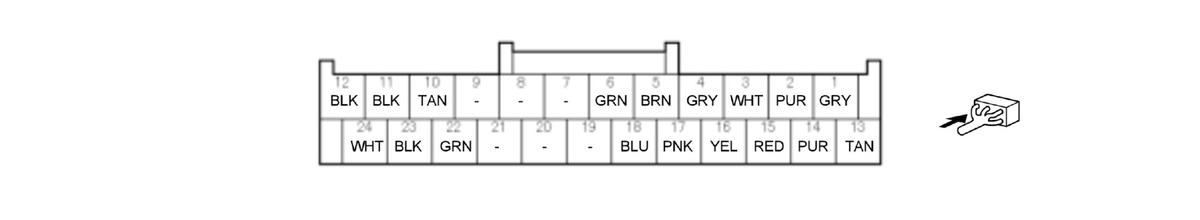

Parking and Back-Up Sensor Control Unit 24P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | IG1_METER(VST) | IG1 power source |
| 2 | BOF | Power source for front sensors |
| 3 | SOF_R | Communication line |
| 4 | SOF_CR | Communication line |
| 5 | SOF_CL | Communication line |
| 6 | SOF_L | Communication line |
| 7 | Not used | --- |
| 8 | Not used | --- |
| 9 | Not used | --- |
| 10 | F-CAN E_L | Communication line |
| 11 | E1 | Ground for front sensors |
| 12 | GND | Ground for parking and back-up sensor control unit |
| 13 | C/SNSR_SW | Detects C/SNSR_SW signal |
| 14 | BOR | Power source for rear sensors |
| 15 | SOR_R | Communication line |
| 16 | SOR_CR | Communication line |
| 17 | SOR_CL | Communication line |
| 18 | SOR_L | Communication line |
| 19 | Not used | --- |
| 20 | Not used | --- |
| 21 | Not used | --- |
| 22 | F-CAN E_H | Communication line |
| 23 | E2 | Ground for rear sensors |
| 24 | C/SNSR_IND | Outputs C/SNSR_IND signal |
