Head Up Display Connector for Inputs and Outputs
| Connector Index |
| Head Up Display Connector A (16P) |
| Head Up Display Connector C (3P) |

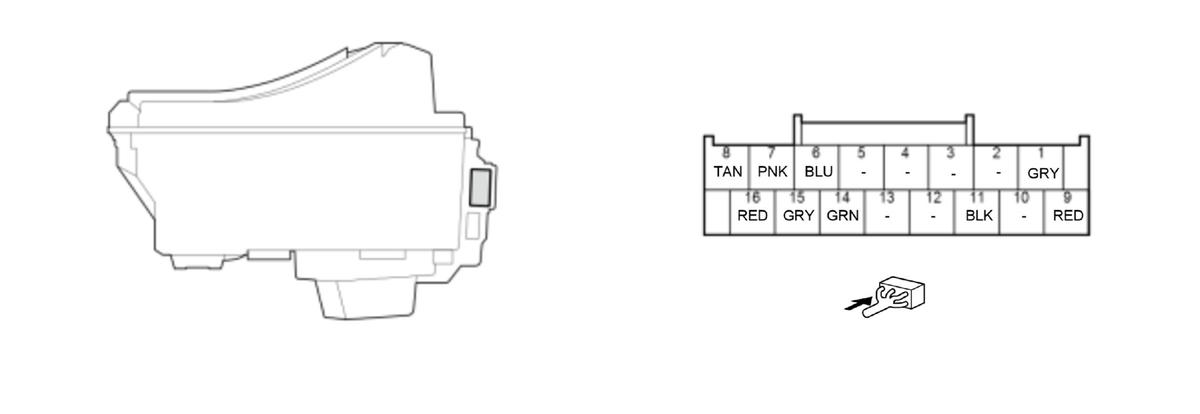

Head Up Display Connector A (16P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal Number |
Terminal Name |
Description |
| 1 |
IG1_METER(VST) |
Power source for IG1 |
| 2 |
Not used |
--- |
| 3 |
Not used |
--- |
| 4 |
Not used |
--- |
| 5 |
Not used |
--- |
| 6 |
HUD_UART2 |
Communication line |
| 7 |
HUD_TILT_DOWN |
Detects HUD_TILT_DOWN signal |
| 8 |
HUD_ILL_DOWN |
Detects HUD_ILL_DOWN signal |
| 9 |
+B_BACK_UP |
Power source for head up display |
| 10 |
Not used |
--- |
| 11 |
GND |
Ground for head up display |
| 12 |
Not used |
--- |
| 13 |
Not used |
--- |
| 14 |
HUD_UART1 |
Communication line |
| 15 |
HUD_TILT_UP |
Detects HUD_TILT_UP signal |
| 16 |
HUD_ILL_UP |
Detects HUD_ILL_UP signal |

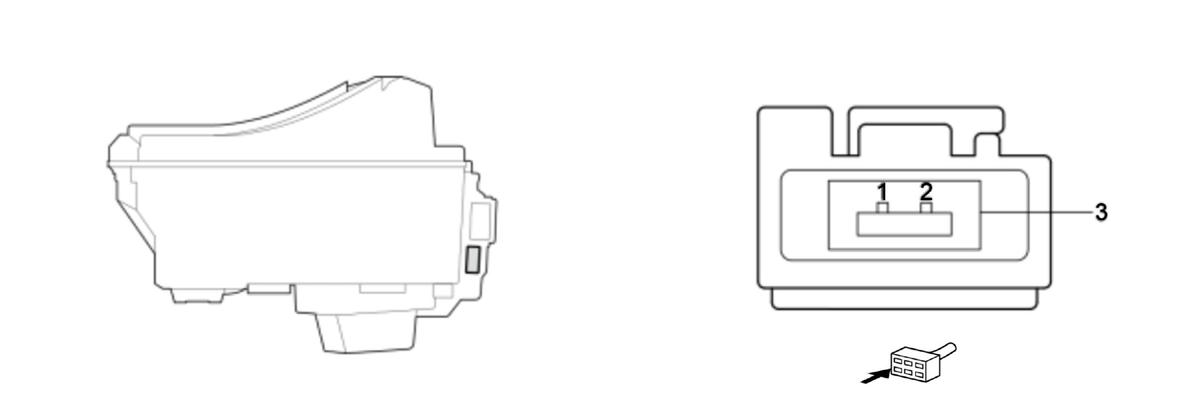

Head Up Display Connector C (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal Number |
Terminal Name |
Description |
| 1 |
LVDS2+ |
Communication line |
| 2 |
LVDS2- |
Communication line |
| 3 |
LVDS2_SH |
Shield for terminals No. 1 and No. 2 |
