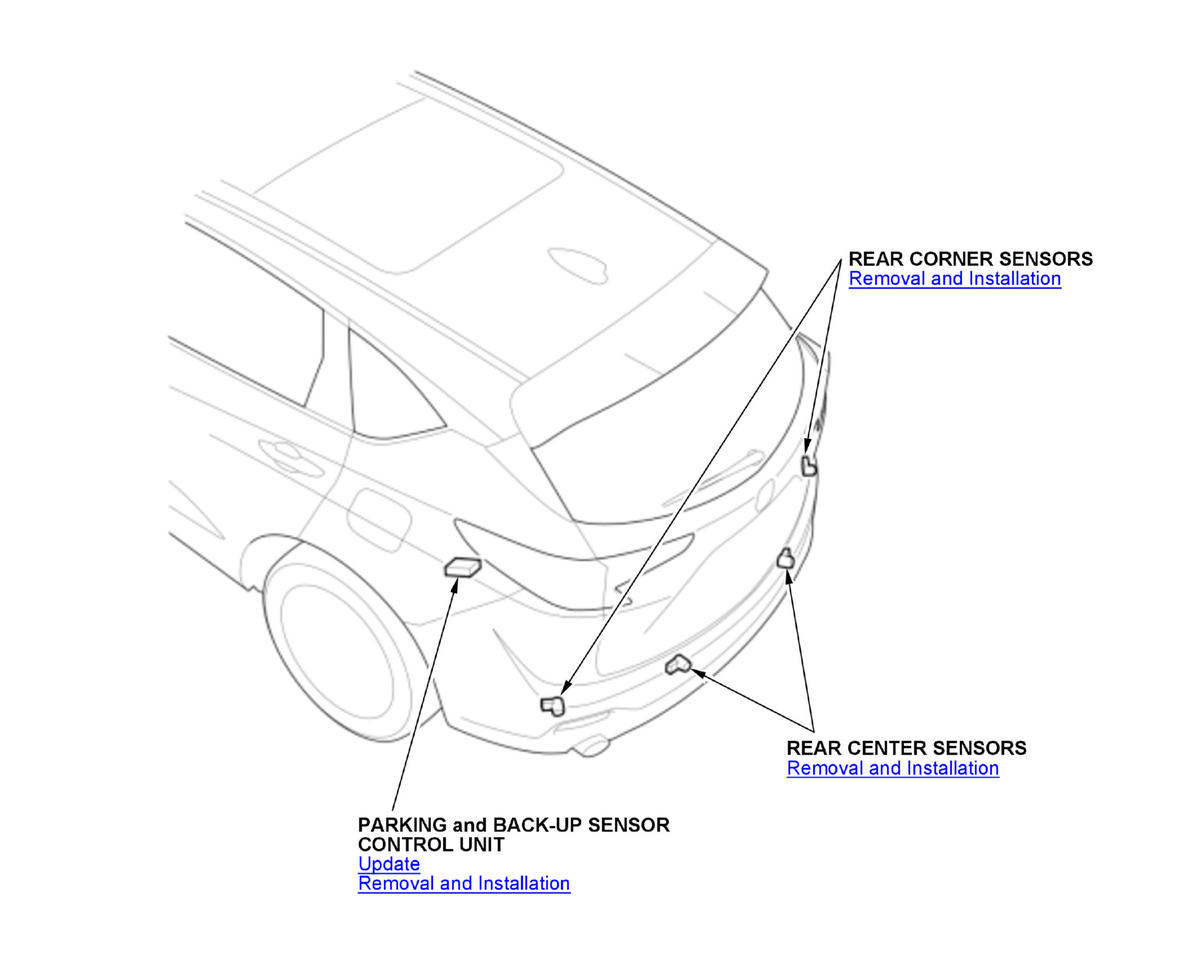

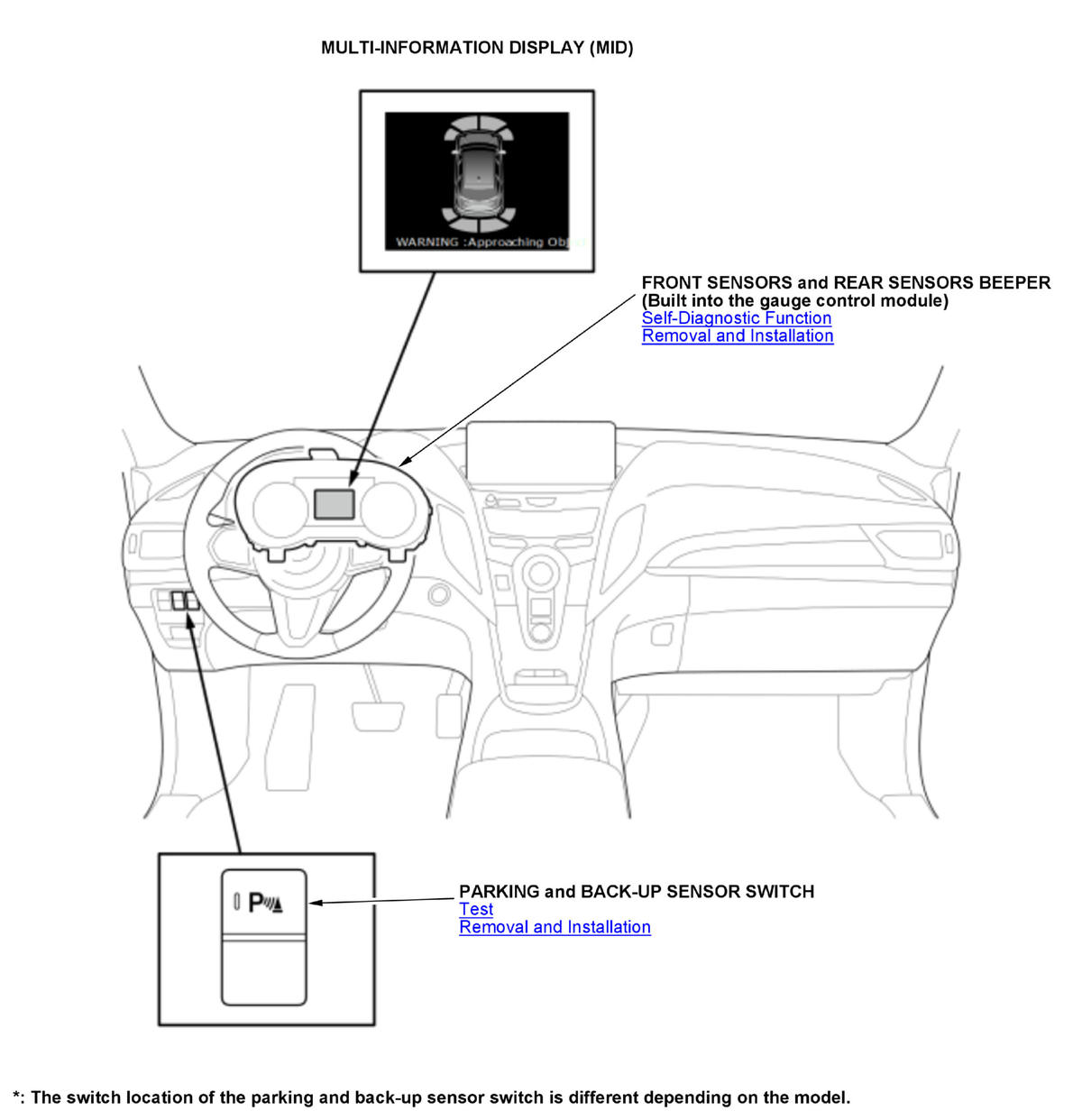

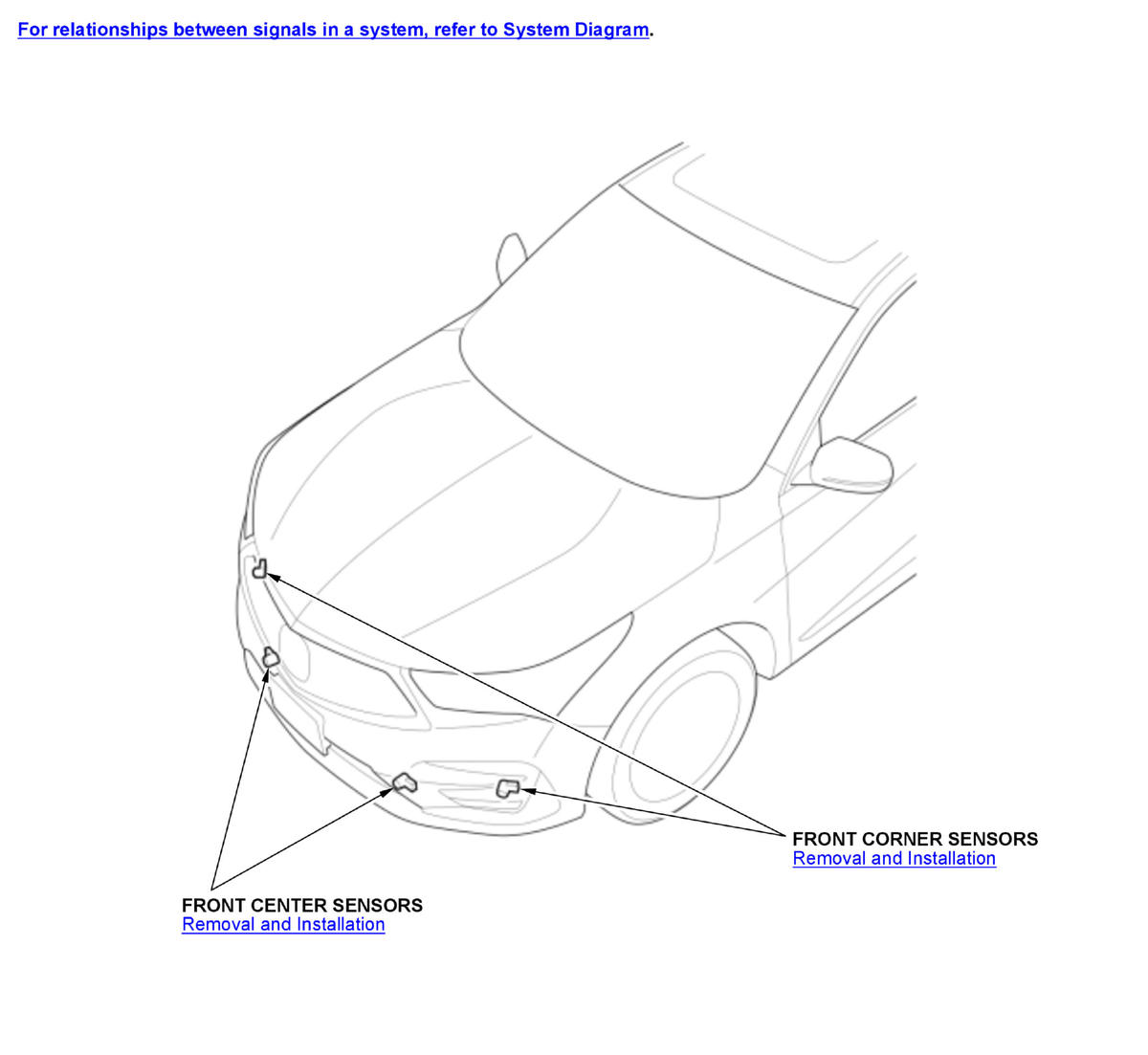

Parking and Back-Up Sensor System Component Location Index (with Low Speed Brake Control)
Parking and Back-Up Sensor System Component Location Index (with Low Speed Brake Control)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
