Gauges Component Location Index

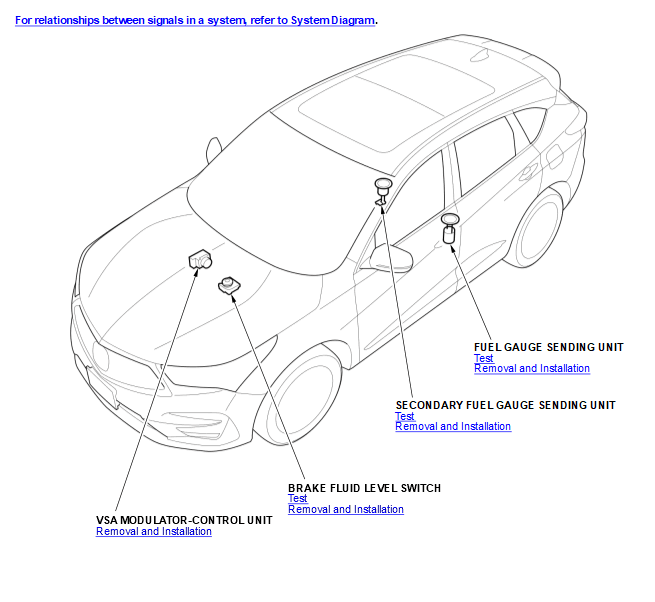

GHH667861

Courtesy of HONDA, U.S.A., INC.

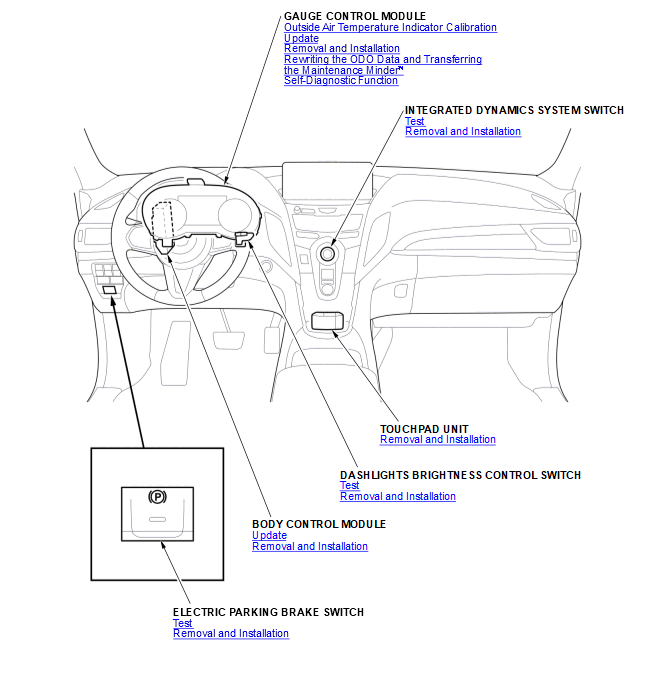

GHH667862

Courtesy of HONDA, U.S.A., INC.

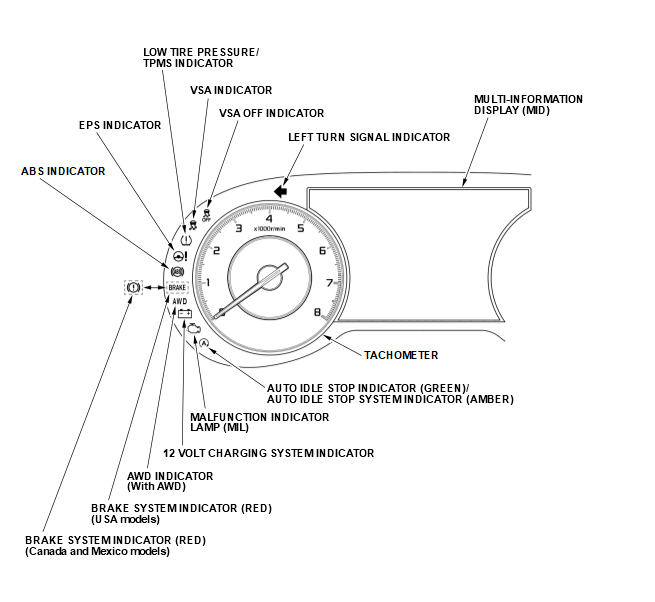

GHH667863

Courtesy of HONDA, U.S.A., INC.

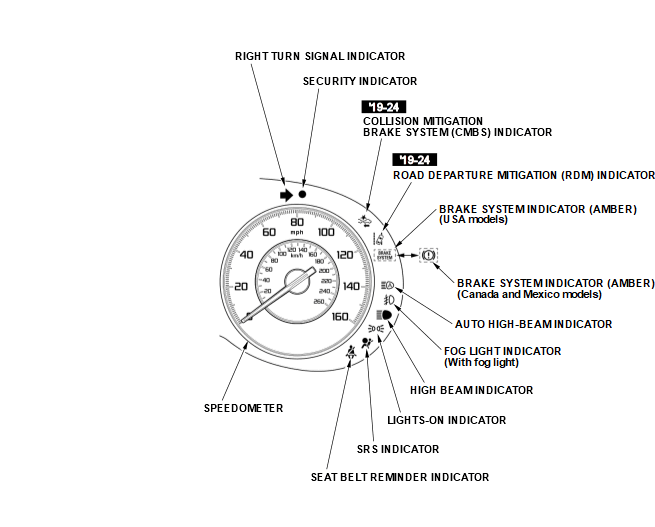

GHH667864

Courtesy of HONDA, U.S.A., INC.
