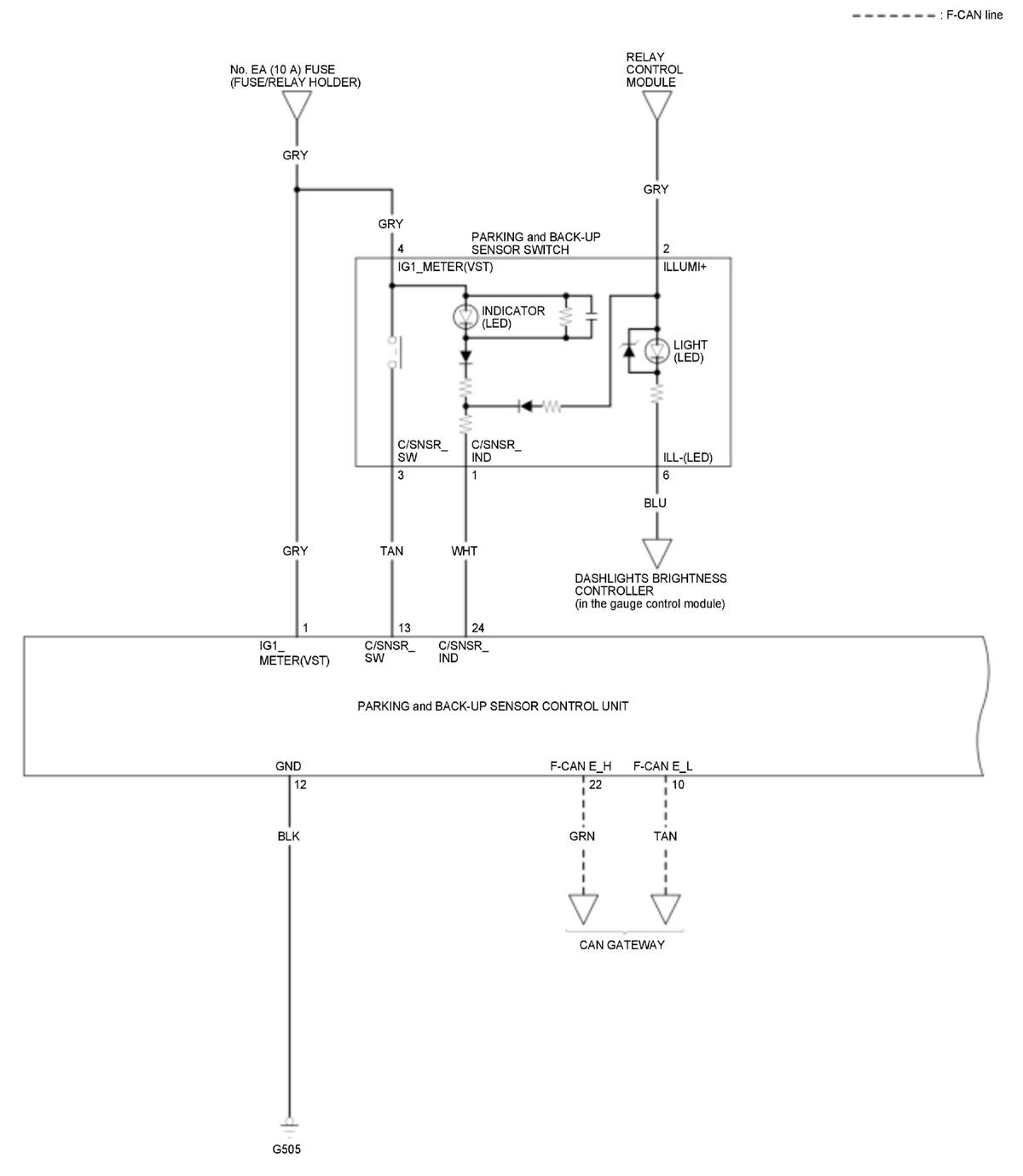

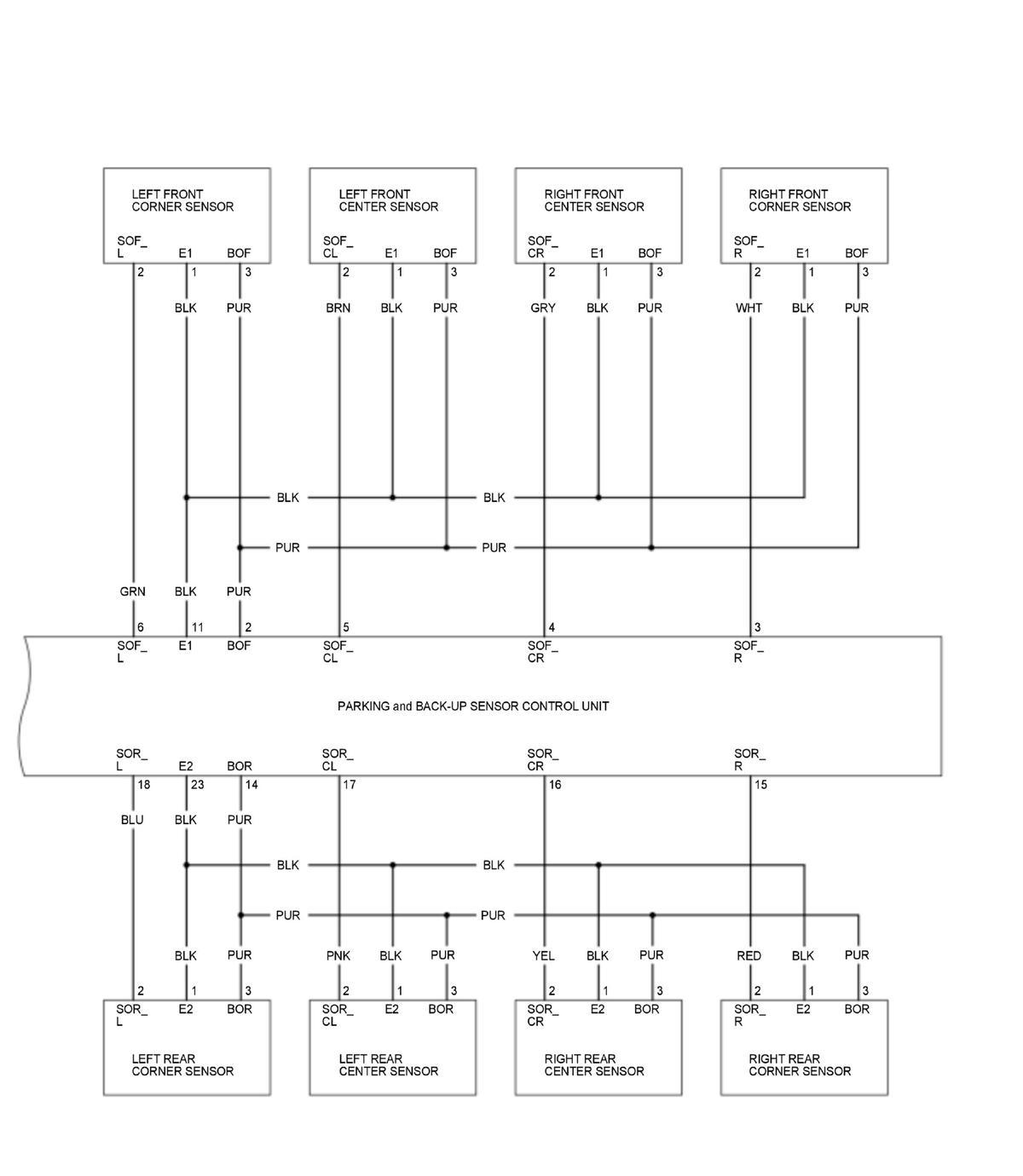

Parking and Back-Up Sensor System Circuit Diagram (2022, 2023)
Parking and Back-Up Sensor System Circuit Diagram (2022, 2023)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
