Suspension System - Service Information / Adjustment (Except Hybrid)
>>
Replacement
>>
Front Knuckle/Hub/Wheel Bearing Replacemen (2013 2014 2015)
>>
Exploded View
Exploded View
Knuckle/Hub/Wheel Bearing

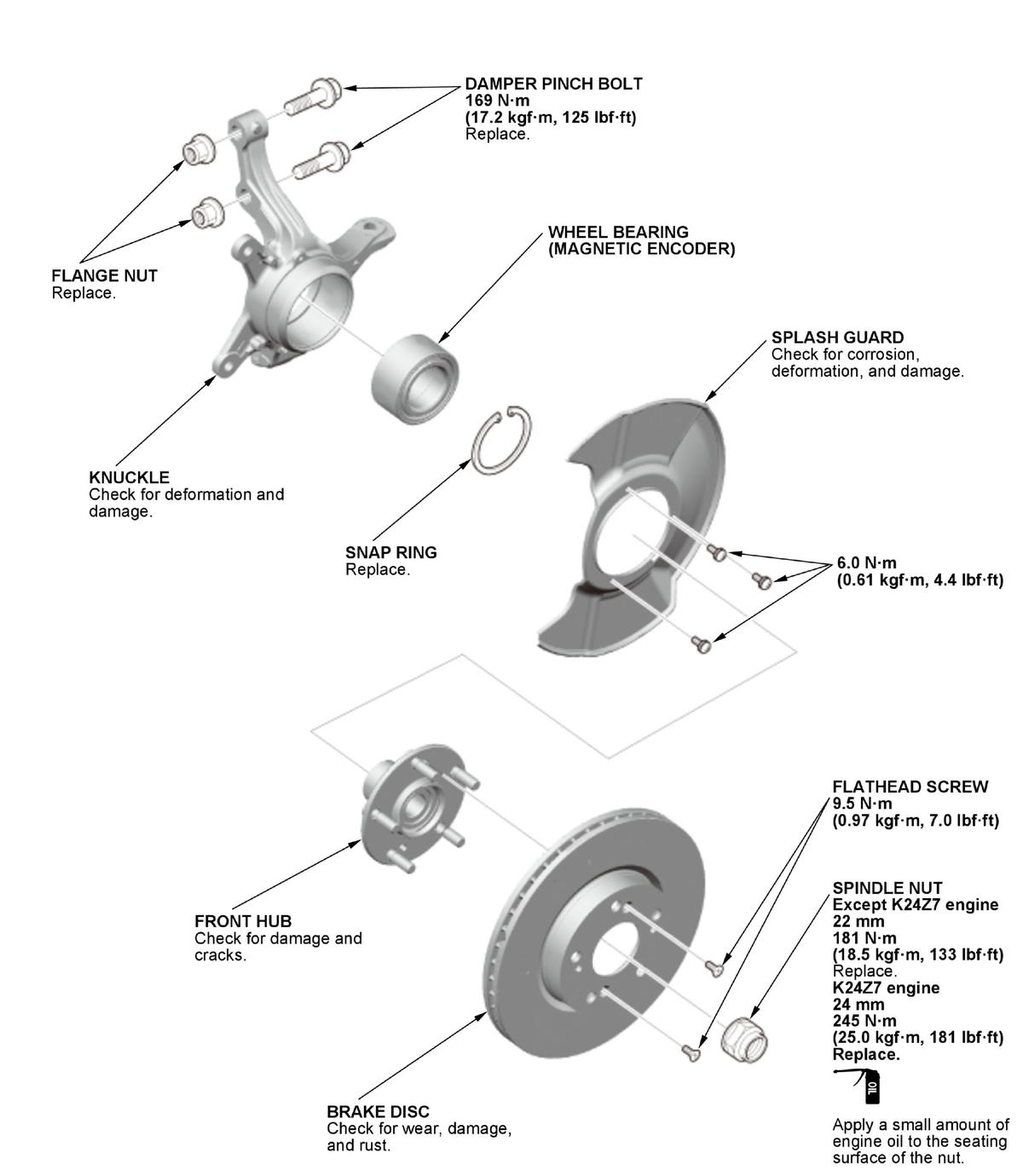

Fig 1: Knuckle/Hub/Wheel Bearing With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
