Front Seat Belt Buckle: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat Belt Buckle - Install

Courtesy of HONDA, U.S.A., INC.

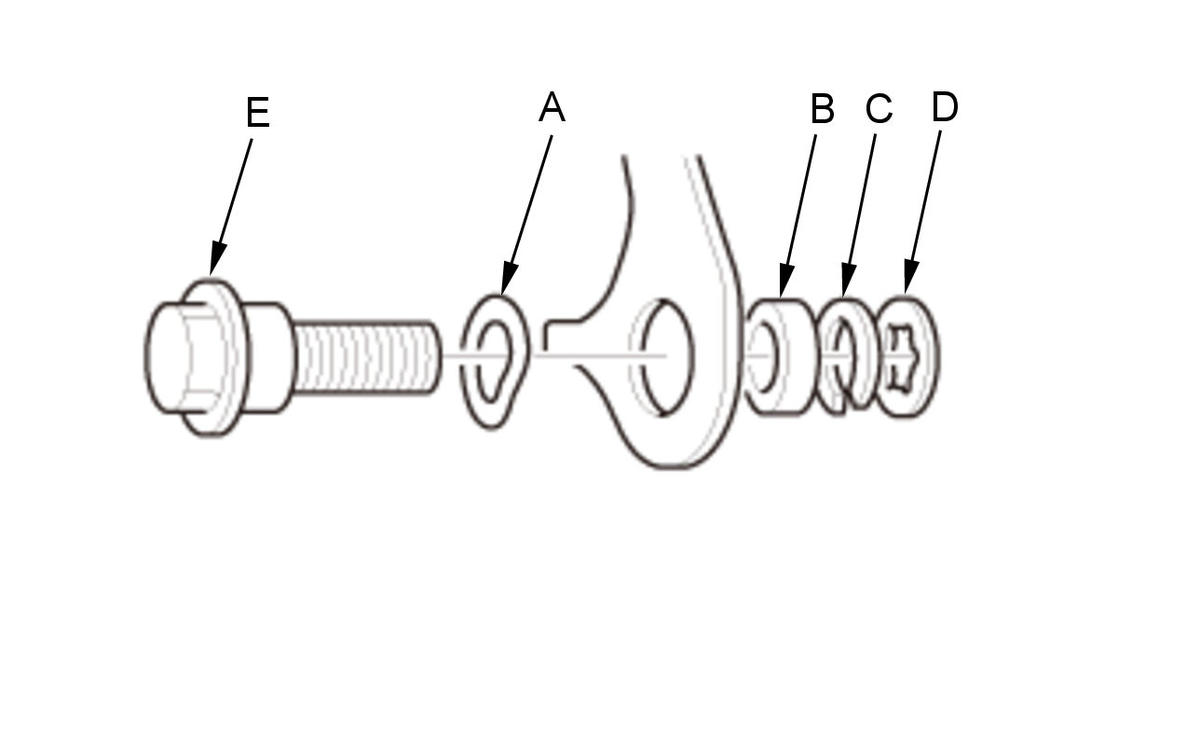

1. Assemble the wave washer (A), the collar (B), spring washer (C), and the toothed lock washer (D) on the center anchor bolt (E) as shown.

NOTE: Tighten the bolt by hand first, then tighten to the specified torque.

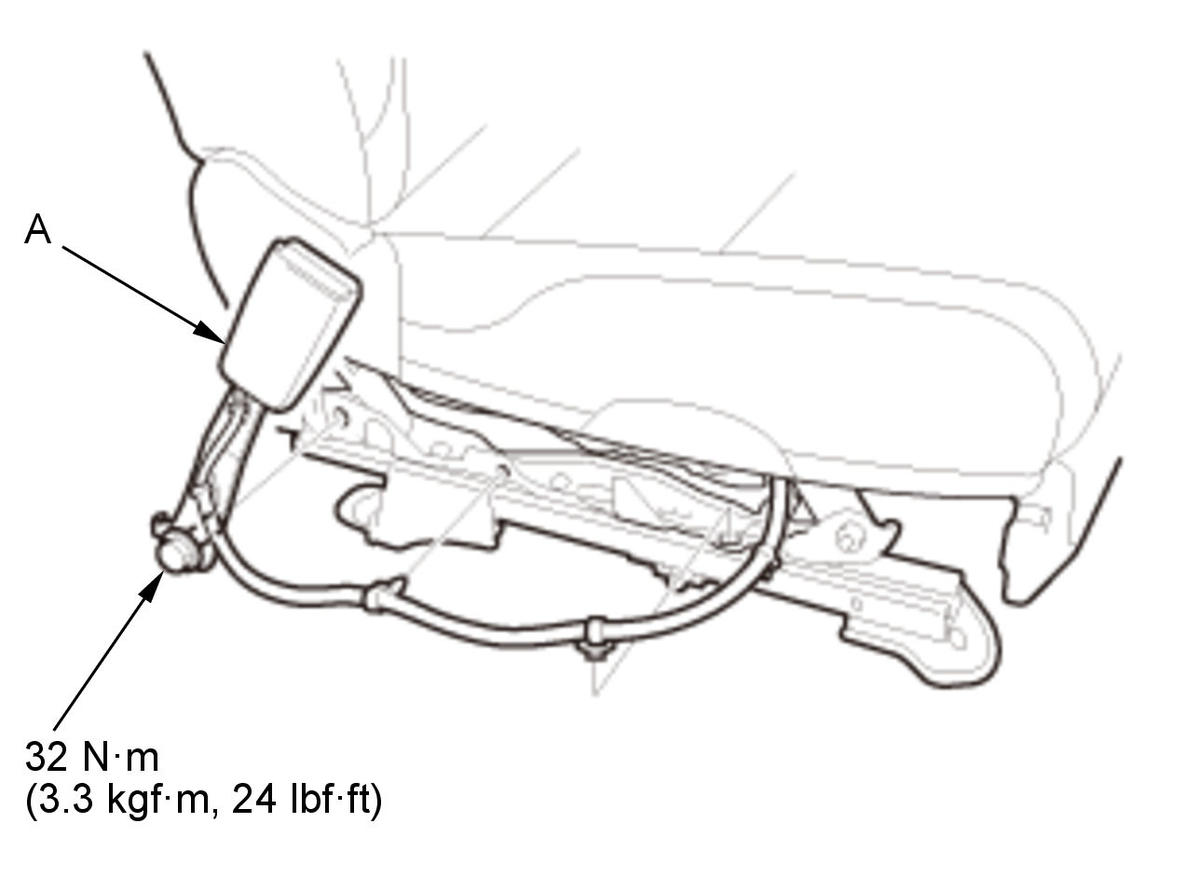

Fig 1: Seat Belt Buckle (Driver's Side) With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

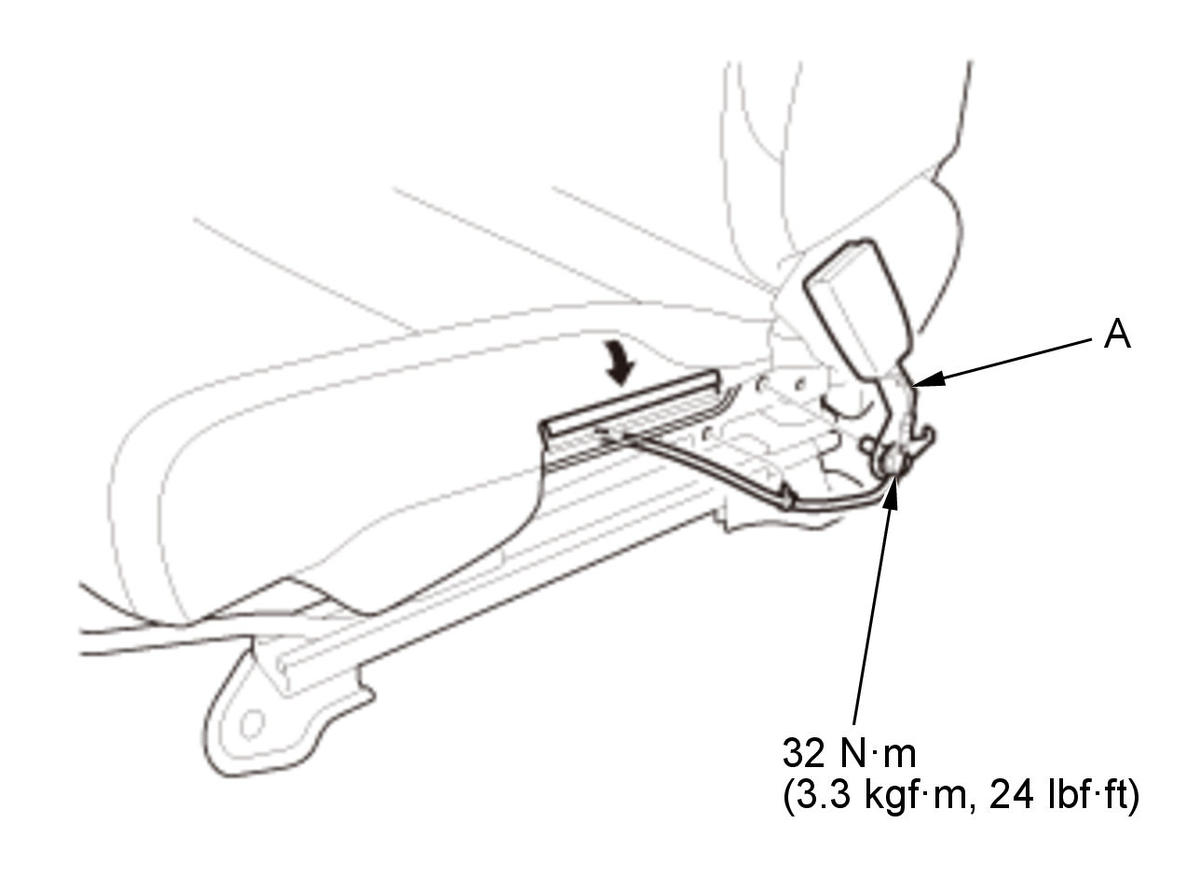

Fig 2: Seat Belt Buckle (Passenger's Side) With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Install the seat belt buckle (A).

Driver's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Passenger's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

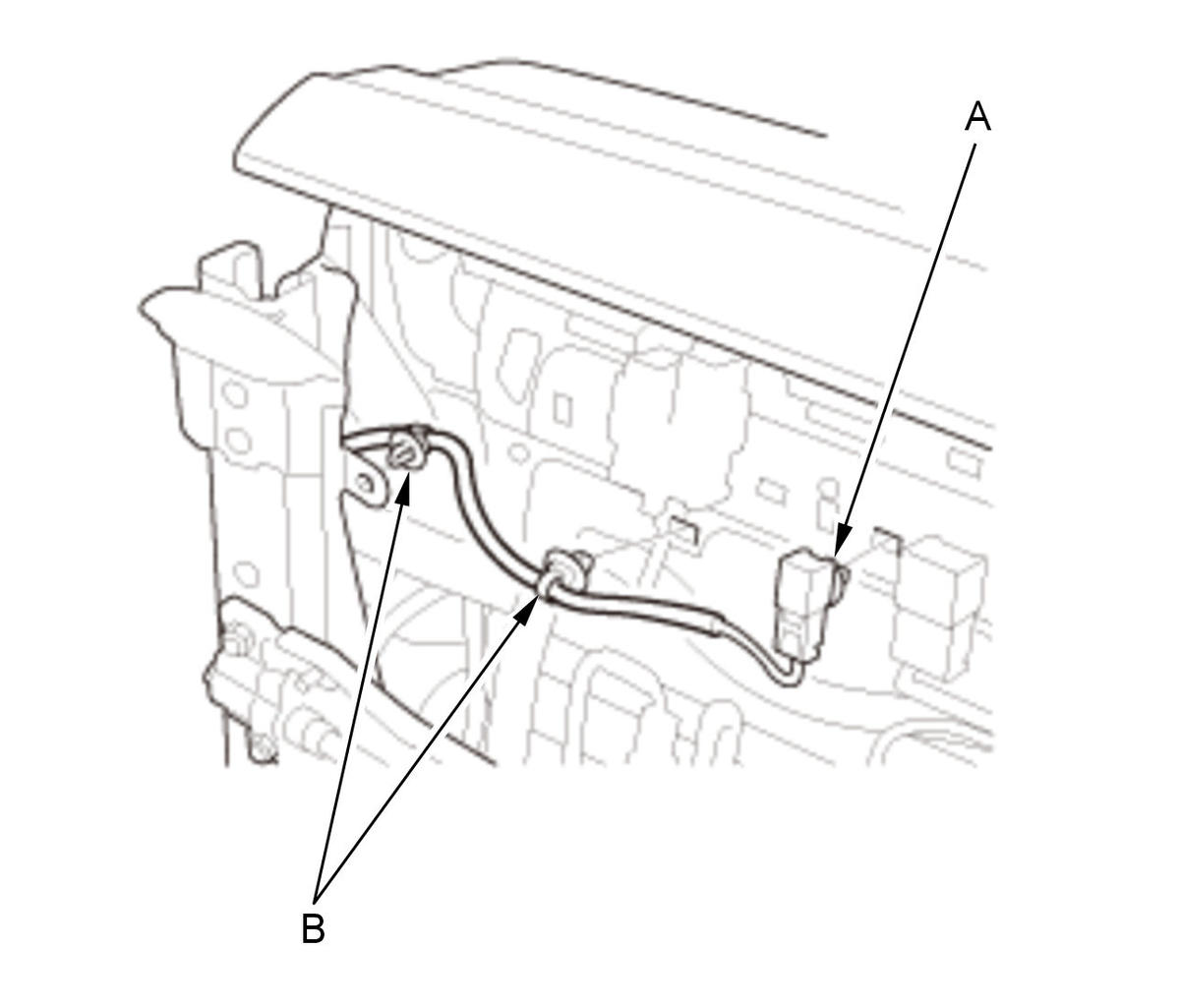

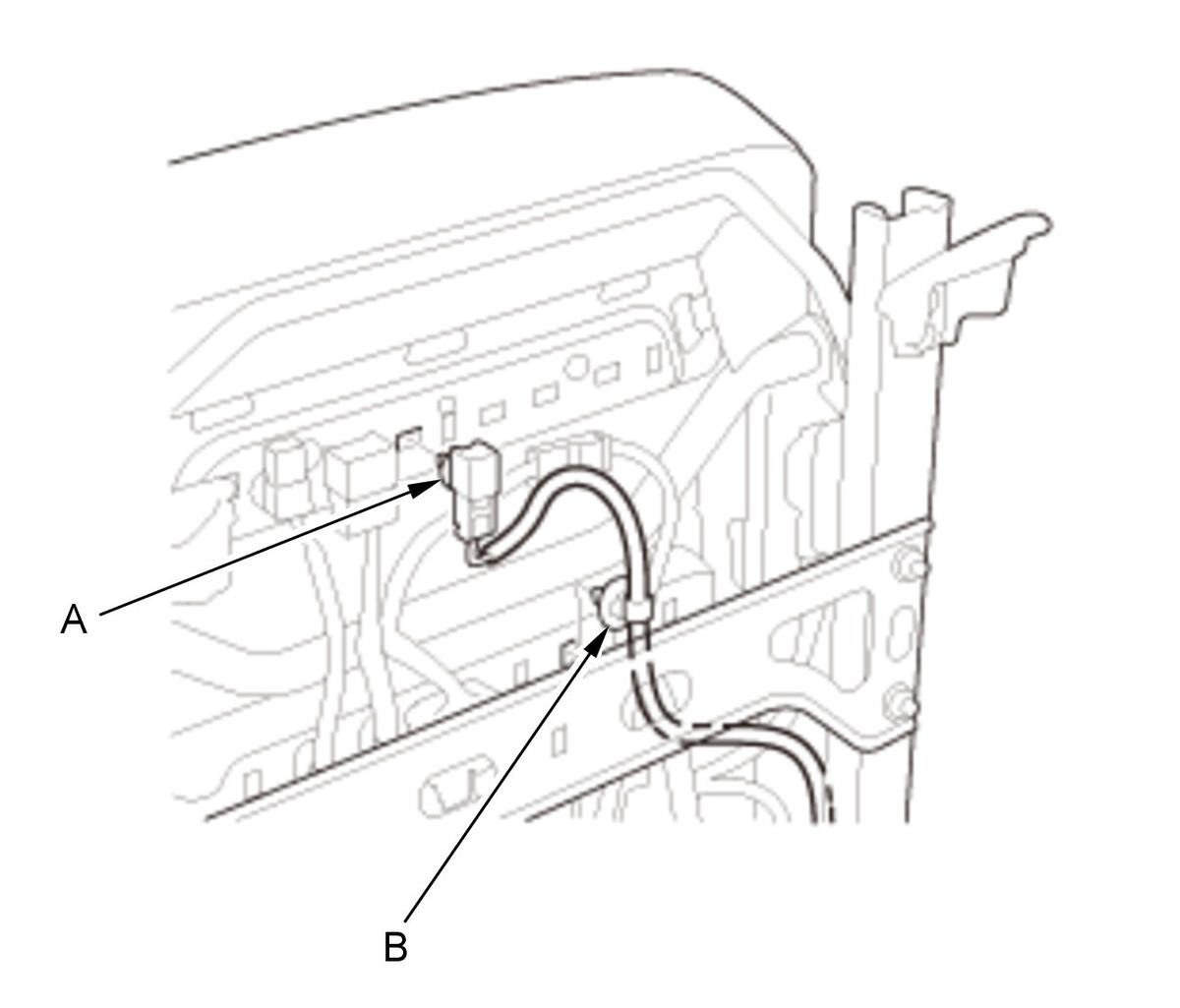

3. Install the connector clip (A) and the harness clip(s) (B).
