SRS DTC 61-2x
DTC 61-2x ("x" can be 0 thru 9 or A thru F) : Short in the Driver's Seat Belt Buckle Switch
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed .
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures and General Troubleshooting Information .
- Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.
| DTC Description | DTC |
|---|---|
DTC (SRS)
- Problem verification
-1. Clear the DTCs with the HDS .
-2. Press the engine start/stop button to select the ON mode, then wait for 10 seconds. Buckle and unbuckle the driver's seat belt several times.
-3. Check for DTCs with the HDS .
DTC Description DTC Is DTC 61-2x indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.
- Driver's seat belt buckle switch check
-1. Press the engine start/stop button to select the OFF mode.

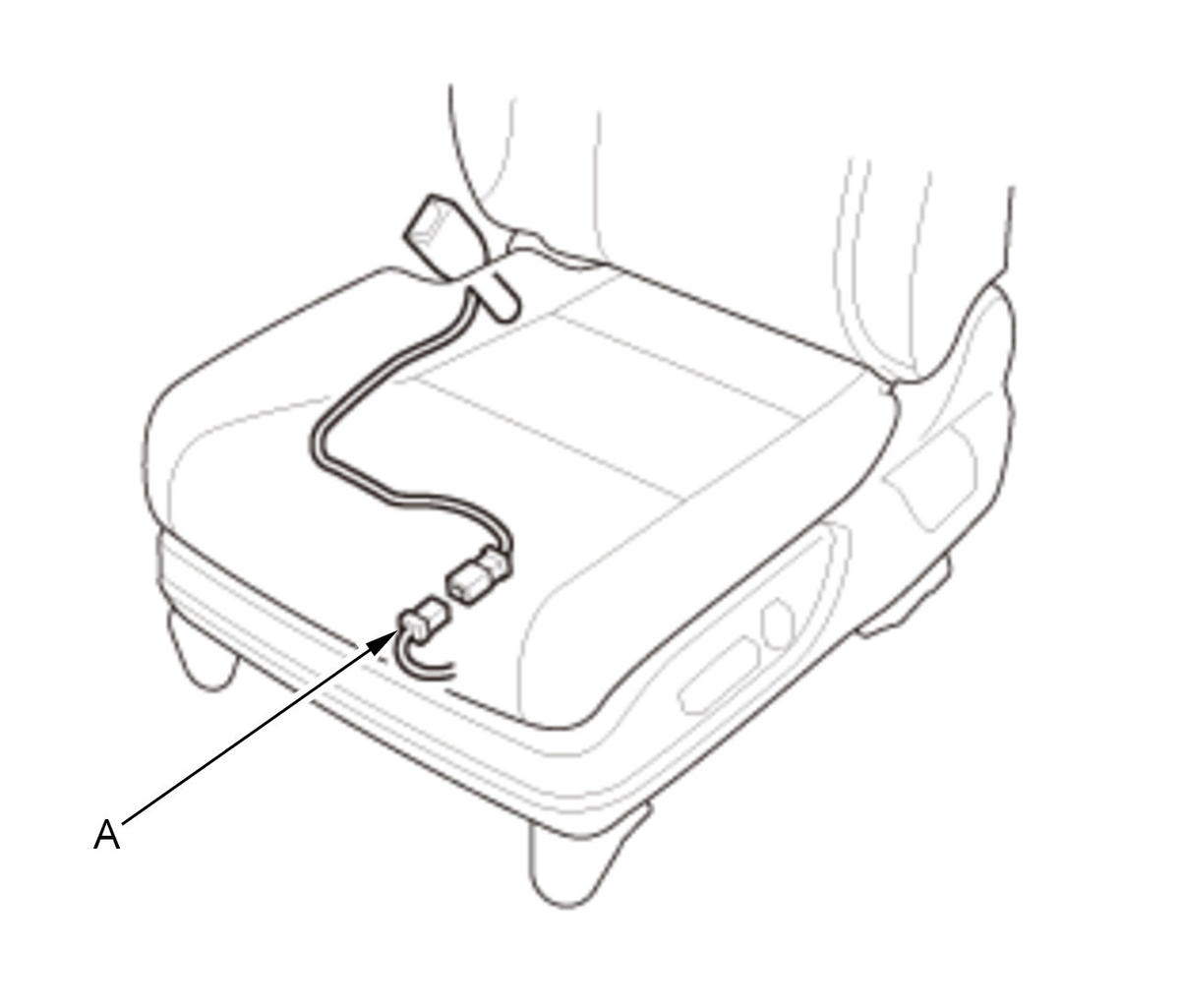

-2. Disconnect the driver's seat belt buckle switch 2P connector (A) on the floor wire harness.
-3. Clear the DTCs with the HDS .
-4. Press the engine start/stop button to select the ON mode, then wait for 10 seconds.
-5. Check for DTCs with the HDS .
DTC Description DTC Is DTC 61-2x indicated?
YES
Short to ground in the floor wire harness; replace the floor wire harness, then clear the DTC.
NO
Faulty driver's seat belt buckle switch; replace the driver's seat belt buckle assembly , then clear the DTC.
