SRS DTC 61-1x

DTC 61-1x ("x" can be 0 thru 9 or A thru F) : Open in the Driver's Seat Belt Buckle Switch

NOTE:

Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed .
Before doing this troubleshooting procedure, review SRS Precautions and Procedures and General Troubleshooting Information .
Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.
When troubleshooting, do not disconnect SRS unit connector B (39P) from the SRS unit.

DTC Description	DTC

DTC (SRS)

Problem verification

-1. Clear the DTCs with the HDS .

-2. Press the engine start/stop button to select the ON mode, then wait for 10 seconds. Buckle and unbuckle the driver's seat belt several times.

-3. Check for DTCs with the HDS .

DTC Description	DTC

Is DTC 61-1x indicated?

YES

The failure is duplicated. Go to step 2.

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.

SRS unit check

-1. Press the engine start/stop button to select the OFF mode.

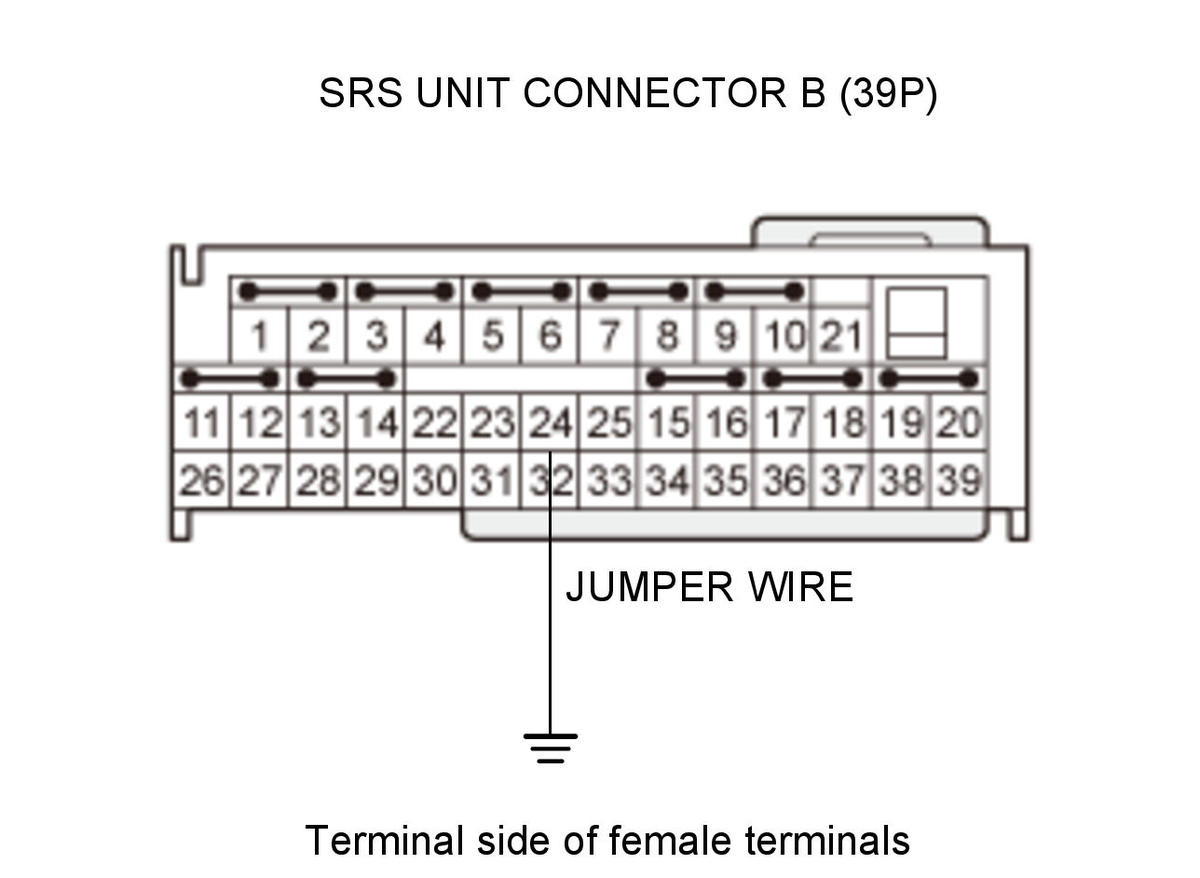

-2. Connect terminals A and B with a jumper wire.

Terminal A	SRS unit connector B (39P) No. 24
Terminal B	Body ground

Courtesy of HONDA, U.S.A., INC.

-3. Clear the DTCs with the HDS .

-4. Press the engine start/stop button to select the ON mode, then wait for 10 seconds.

-5. Check for DTCs with the HDS .

DTC Description	DTC

Is DTC 61-2x indicated?

YES

Go to step 3.

Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit . If the DTC does not clear, replace the floor wire harness.

Open wire check (FLBC line)

-1. Press the engine start/stop button to select the OFF mode.

-2. Remove the jumper wire from SRS unit connector B (39P).

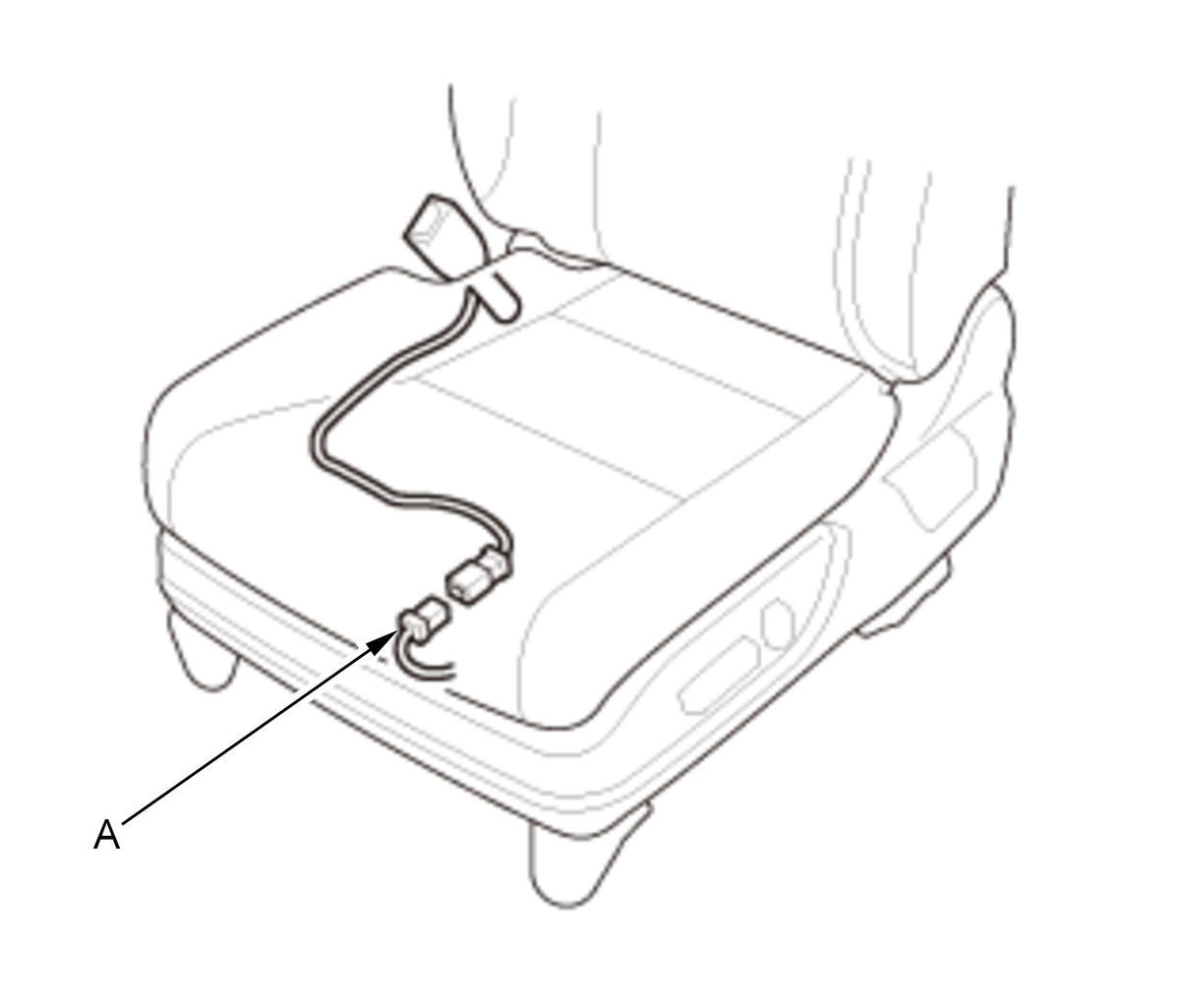

-3. Disconnect the driver's seat belt buckle switch 2P connector (A) on the floor wire harness.

Courtesy of HONDA, U.S.A., INC.

-4. Press the engine start/stop button to select the ON mode.

-5. Measure the voltage between test points 1 and 2.

Test condition	ON mode
Test condition	Driver's seat belt buckle switch 2P connector (on the floor wire harness): disconnected

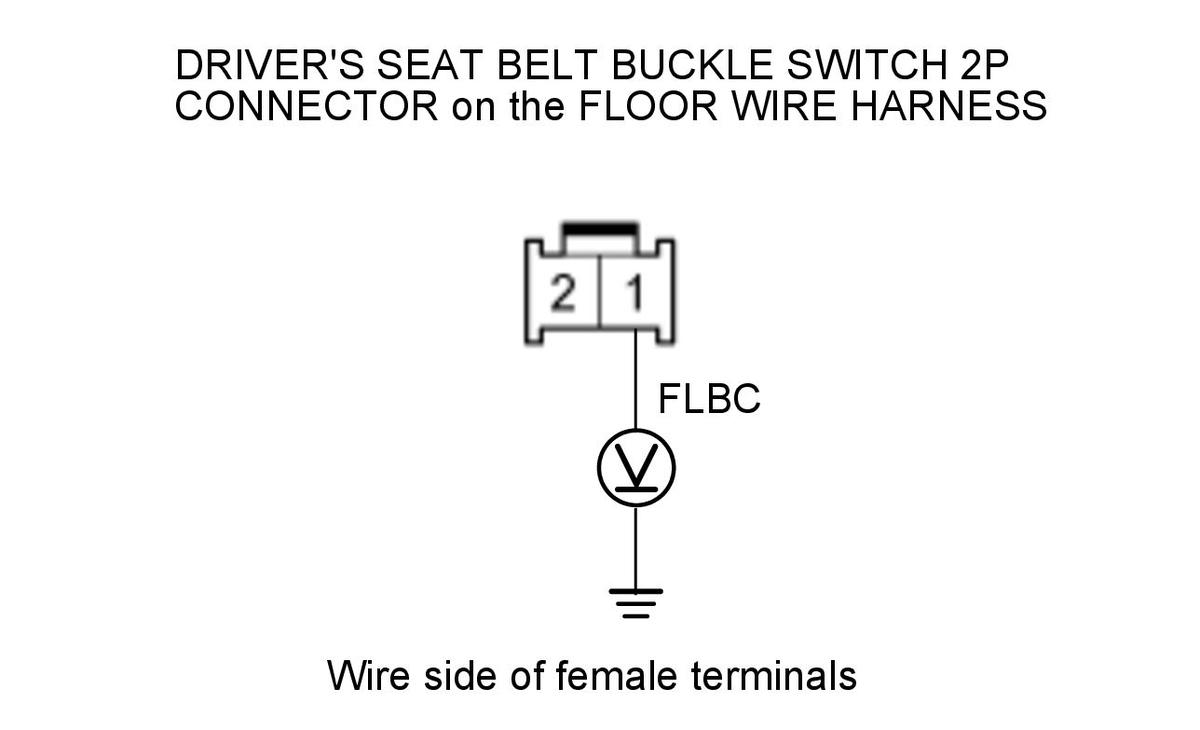

Test circuit	FLBC
Test point 1	Driver's seat belt buckle switch 2P connector No. 1 (on the floor wire harness)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there 10 V or more?

YES

The FLBC wire is OK. Go to step 4.

Open in the floor wire harness; replace the floor wire harness, then clear the DTC.

Open wire check (GND line)

-1. Press the engine start/stop button to select the OFF mode.

-2. Measure the resistance between test points 1 and 2.

Test condition	OFF mode
Test condition	Driver's seat belt buckle switch 2P connector (on the floor wire harness): disconnected

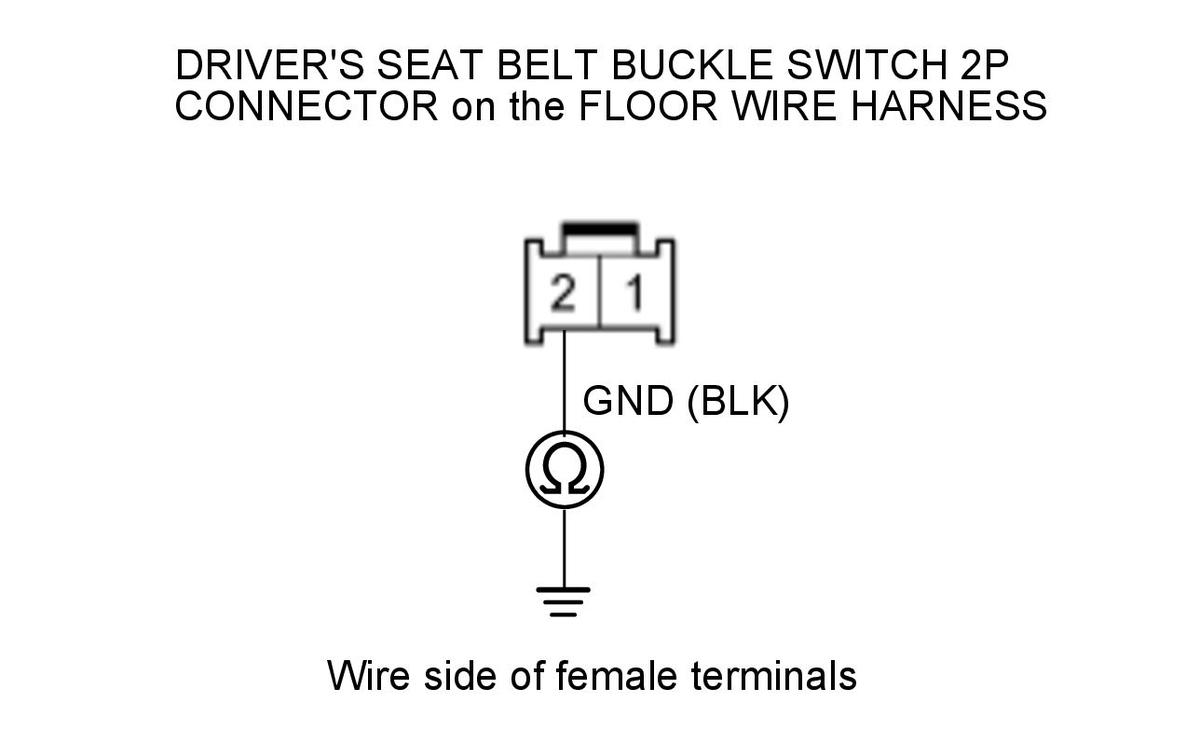

Test circuit	GND
Test point 1	Driver's seat belt buckle switch 2P connector No. 2 (BLK) (on the floor wire harness)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there 1.0 Ω or less?

YES

The GND wire is OK. Faulty driver's seat belt buckle switch; replace the driver's seat belt buckle assembly , then clear the DTC.

Open in the floor wire harness; check for a poor ground at G602. If the ground is OK, replace the floor wire harness, then clear the DTC.
